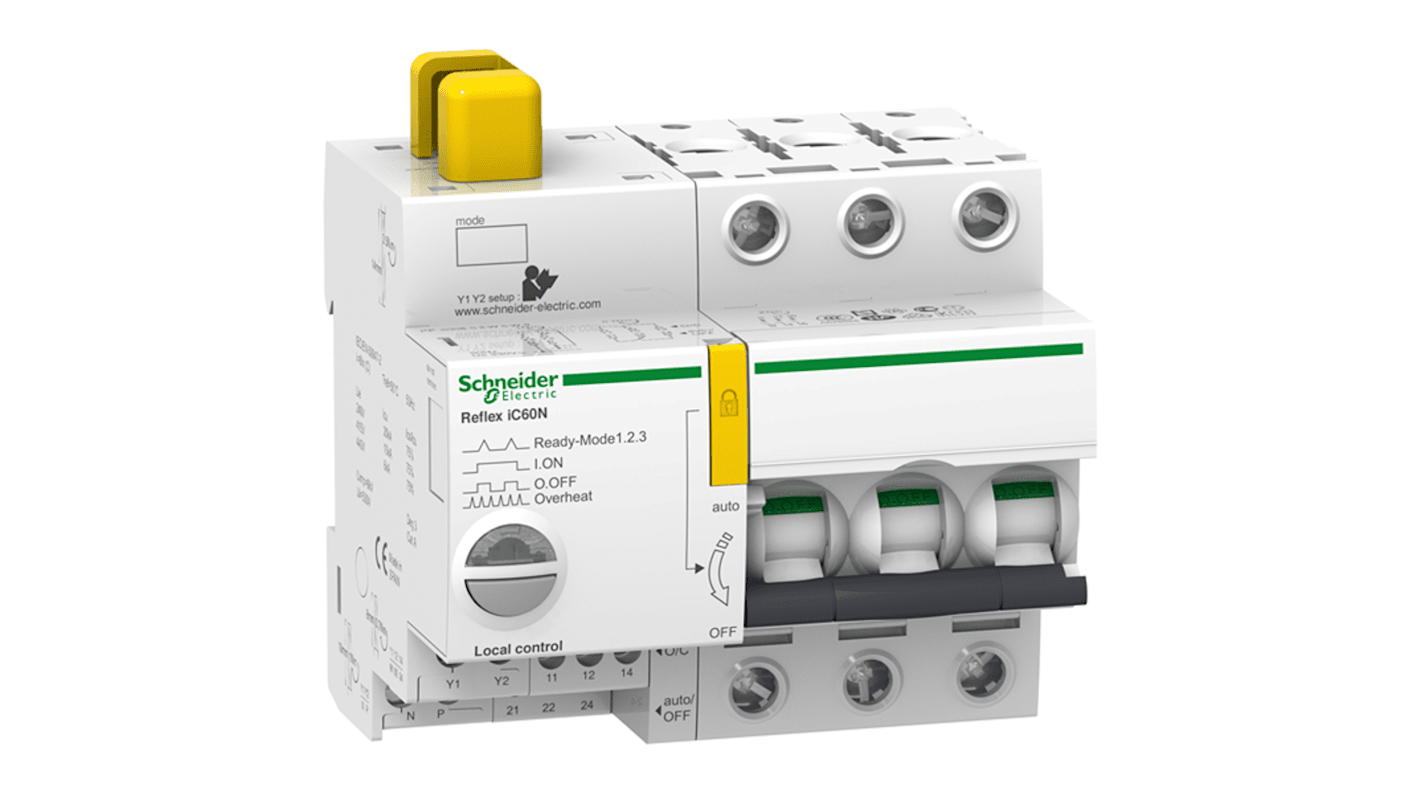

Schneider Electric Acti9 Acti9 Reflex MCB, 3P, 16A Curve D, 230V AC, 24V DC, 10 KA Breaking Capacity

The Schneider Electric MCB is a low voltage integrated control circuit breaker. It is a 3P circuit breaker with protected poles, 16 A rated current and D tripping curve. As circuit breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 220VAC to 240VAC, and 10kA at 380VAC to 415VAC. As a circuit breaker, it protects circuits against short circuit and overload currents, disconnection in the industrial sector. It can control a device remotely by latched and/or impulse-type order according to the 2 operating modes to be chosen by the user. Resetting after a fault is performed manually by the resetting handle. The Ti24 interface allows direct interfacing of the Reflex iC60 with a PLC. It allows to execute remote control, to indicate the state of the control circuit and circuit breaker state information, to connect it to the Acti9 Smartlink thanks to the prefabricated cables.

IP20 protective rated
IEC 60529
