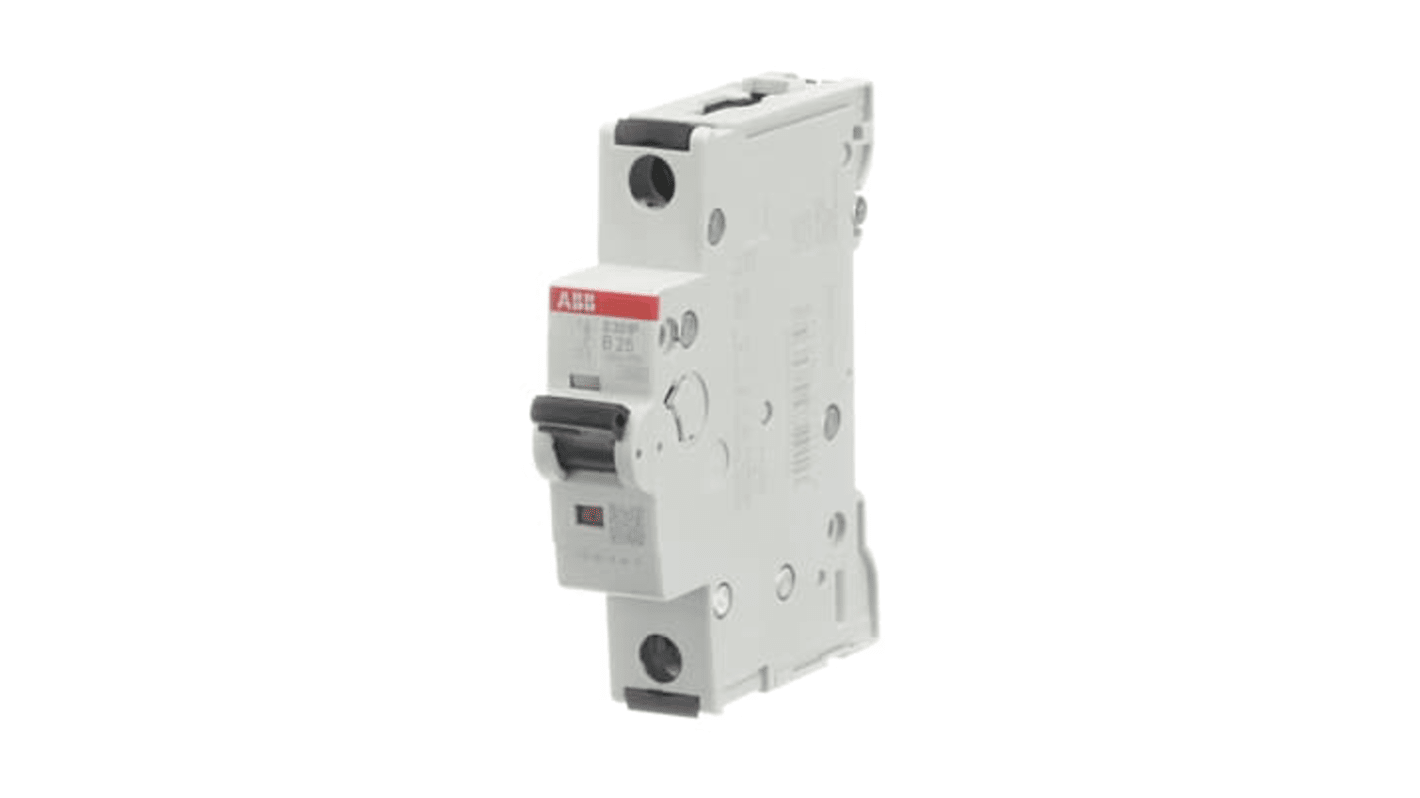

ABB System Pro M Compact S301 Miniature Circuit Breaker, 1-Pole, 25A, Type B, 415V ac AC, 125 V dc DC, 25 kA Breaking
- RS Stock No.:
- 204-443
- Mfr. Part No.:
- 2CDS381001R0255
- Brand:
- ABB
Subtotal (1 unit)*
£33.27
(exc. VAT)
£39.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.27 |
*price indicative
- RS Stock No.:
- 204-443
- Mfr. Part No.:
- 2CDS381001R0255
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 25A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 415V ac | |
| Rated DC Voltage | 125V dc | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S301 | |
| Terminal Type | Bidirectional Cylinder Lift Terminal | |
| IP Rating | IP40, IP20 | |
| Standards/Approvals | ANCE, CCC, CSA 22.2 No. 235, DNV, EAC, EZU, GB/T 10963.1, GB/T 14048.2, GL, IEC/EN 60898-1, IEC/EN 60947-2, IMQ, KC, KEMA, LRS, NF, ÖVE, RINA, S+, SII, UKCA, UL 1077, VDE | |
| Depth | 69mm | |
| Height | 88mm | |
| Width | 17.5mm | |
| Reset Actuator Type | Toggle | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 415V ac | ||
Rated DC Voltage 125V dc | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S301 | ||
Terminal Type Bidirectional Cylinder Lift Terminal | ||
IP Rating IP40, IP20 | ||
Standards/Approvals ANCE, CCC, CSA 22.2 No. 235, DNV, EAC, EZU, GB/T 10963.1, GB/T 14048.2, GL, IEC/EN 60898-1, IEC/EN 60947-2, IMQ, KC, KEMA, LRS, NF, ÖVE, RINA, S+, SII, UKCA, UL 1077, VDE | ||
Depth 69mm | ||
Height 88mm | ||
Width 17.5mm | ||
Reset Actuator Type Toggle | ||
- COO (Country of Origin):
- DE
The ABB Miniature Circuit Breaker is designed to be used in installations where high breaking capacities are required to protect against short circuits and overloads. features an integrated trip indicator for clear on site signaling of tripping events and a dual DIN Rail release for quick, easy installation. It is fully compatible with the System pro M compact accessory range, supporting numerous functions. Additionally, it offers quick product identification via a QR code, granting direct access to the ABB product database.
High short circuit breaking capacity provides supreme protection
Advanced tripping characteristics enhance operational safety
Terminals equipped with fail safe feature to avoid improper installation
Certified quality and compliance according to worldwide product standards
IP40 protection rating in enclosure with cover
