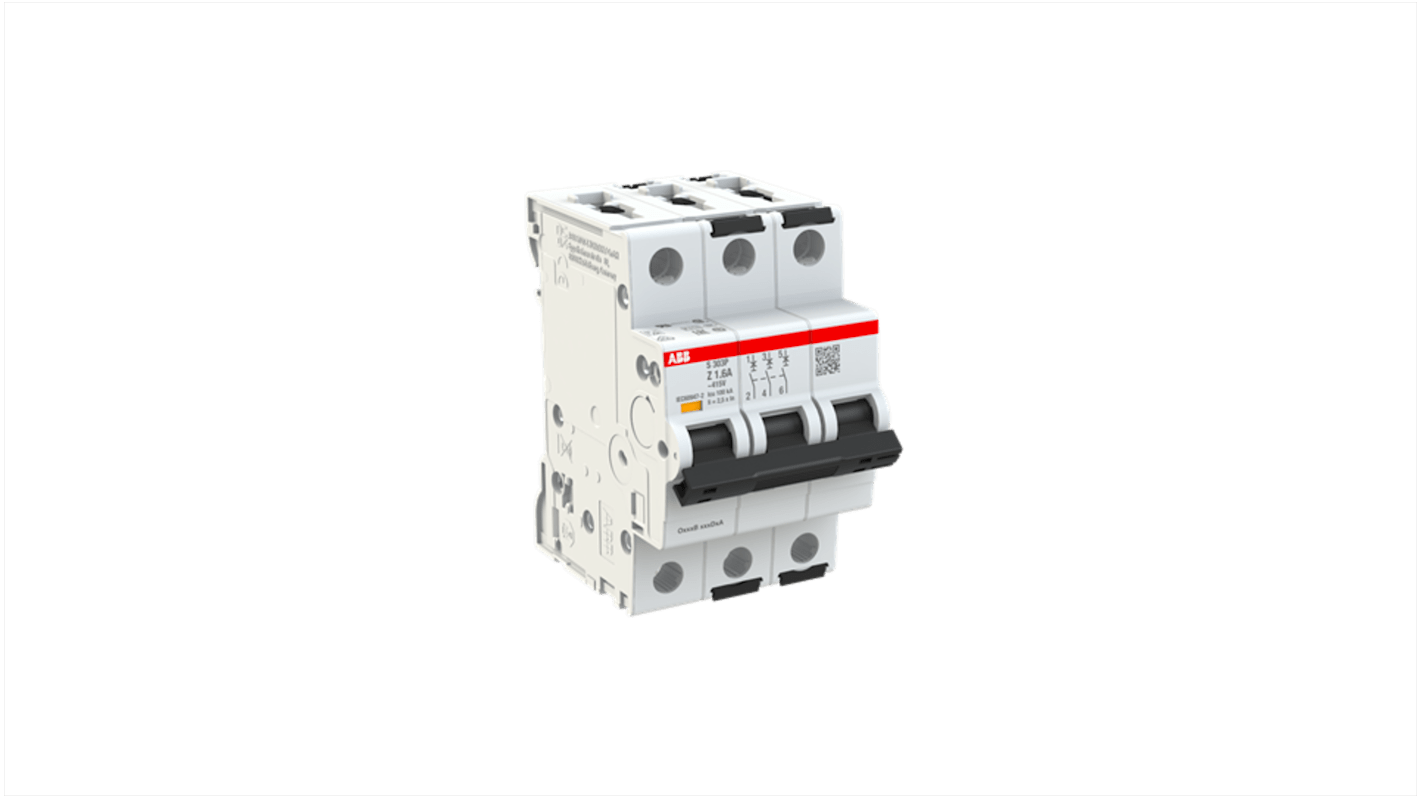

ABB System Pro M Compact S300P MCB, 3P, 1.6A, Type Z, 415V AC, 100 kA Breaking Capacity
- RS Stock No.:
- 201-336
- Mfr. Part No.:
- 2CDS383001R0258
- Brand:
- ABB
Subtotal (1 unit)*
£175.78
(exc. VAT)
£210.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £175.78 |
*price indicative
- RS Stock No.:
- 201-336
- Mfr. Part No.:
- 2CDS383001R0258
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 3 | |
Current Rating | 1.6A | |
Tripping Characteristics | Type Z | |
Rated AC Voltage | 415V | |
Breaking Capacity at Maximum Voltage Rating | 100 kA | |
Range | System Pro M Compact | |
Series | S300P | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 1.6A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 415V | ||
Breaking Capacity at Maximum Voltage Rating 100 kA | ||
Range System Pro M Compact | ||
Series S300P | ||
- COO (Country of Origin):
- DE
The ABB Miniature Circuit Breaker is designed to be used in installations where high breaking capacities are required to protect against short circuits and overloads. This product is manufactured according to international IEC and UL standards, for the markets where it is required. It features an integrated trip indicator for clear signalization of tripping events, dual DIN rail release for easy and fast installation, and full compatibility with the System pro M compact accessory range for versatile functionality. Additionally, it includes a QR code for quick product identification and direct access to the ABB product database.
Terminals equipped with fail safe feature to avoid improper installation
Supply possible from top or bottom and in parallel with cables and busbars
Excellent technical performance to ensure safety and protection of installation and personal
Certified quality and compliance according to worldwide product standards
Supply possible from top or bottom and in parallel with cables and busbars
Excellent technical performance to ensure safety and protection of installation and personal
Certified quality and compliance according to worldwide product standards
