ABB SMISSLINE TP S400E Miniature Circuit Breaker, 1-Pole, 40A, Type B, 400V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 178-645
- Mfr. Part No.:
- 2CCS551001R0405 - S401EB40
- Brand:
- ABB

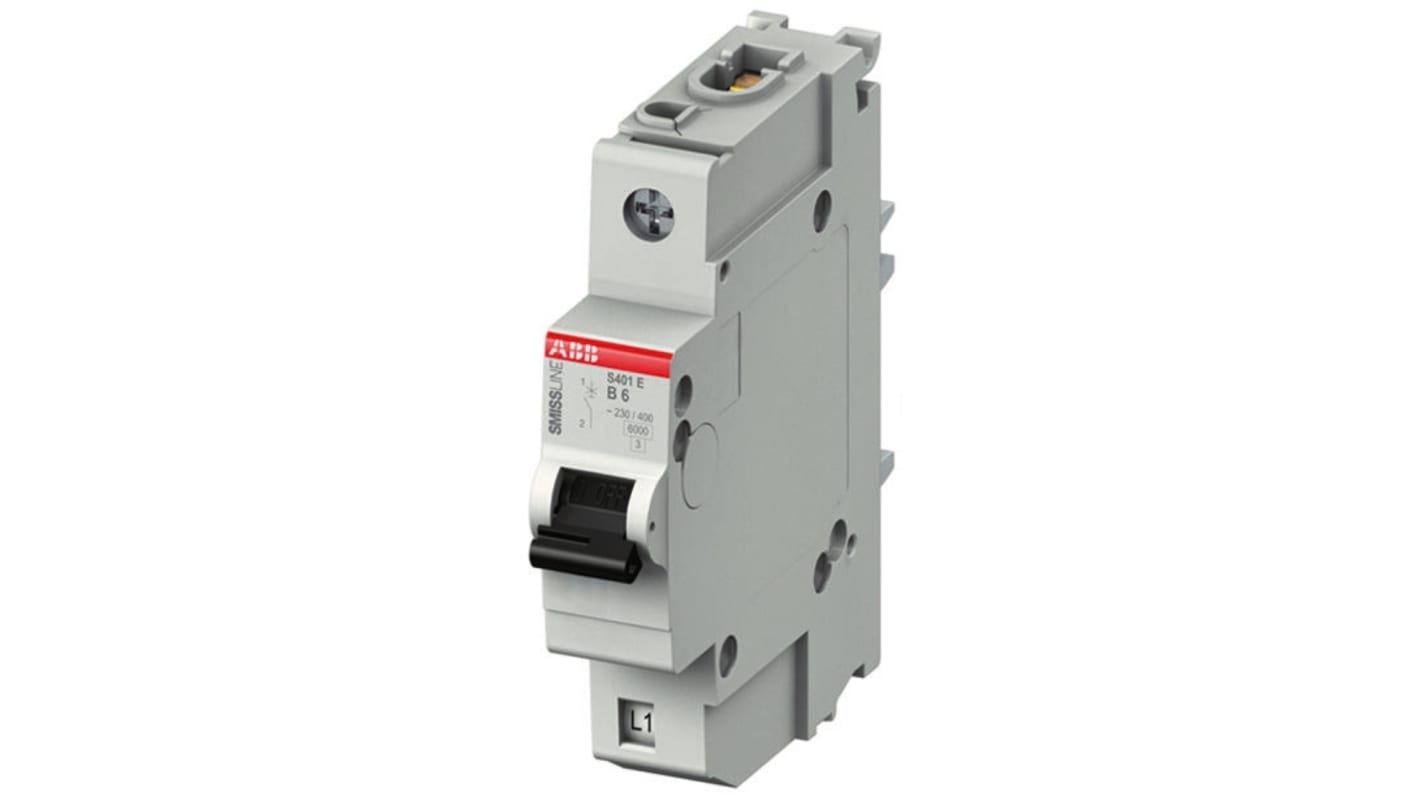

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 178-645
- Mfr. Part No.:
- 2CCS551001R0405 - S401EB40
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 40A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | SMISSLINE TP | |
| Series | S400E | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Depth | 75mm | |
| Height | 91mm | |
| Standards/Approvals | EN 60898-1 | |
| Width | 18mm | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 40A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range SMISSLINE TP | ||
Series S400E | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Depth 75mm | ||
Height 91mm | ||
Standards/Approvals EN 60898-1 | ||
Width 18mm | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal | ||
- COO (Country of Origin):
- CH
ABB S400E Series MCB, 40A Current Rating , 1 Pole - 2CCS551001R0405 - S401EB40
This MCB is a robust single pole circuit breaker designed for commercial and industrial applications. With a current rating of 40 A, it is engineered to deliver reliable performance at voltage ratings of 230 V and 400 V. Its Compact dimensions of 18mm x 75mm x 75mm make it suitable for various installations while maintaining a high breaking capacity of 6 kA at maximum voltage.
Features & Benefits
• Type B circuit breaker tailored for sensitive electronic devices
• Overload protection ensures safety during high current situations
• Thermal tripping mechanism protects against prolonged overloads
• Suitable for diverse commercial and industrial environments
• High breaking capacity ensures effective circuit protection
• Overload protection ensures safety during high current situations
• Thermal tripping mechanism protects against prolonged overloads
• Suitable for diverse commercial and industrial environments
• High breaking capacity ensures effective circuit protection
Applications
• Used for residential electrical systems requiring reliable circuit protection
• Ideal for commercial environments with heavy electrical loads
• Applied in industrial settings where thermal tripping is Crucial
• Utilised in automation systems to safeguard equipment from overloads
• Ideal for commercial environments with heavy electrical loads
• Applied in industrial settings where thermal tripping is Crucial
• Utilised in automation systems to safeguard equipment from overloads
What current rating is suitable for my installation?
A current rating of 40 A can manage typical loads in commercial and industrial settings, accommodating Peak demands effectively.
Can this circuit breaker be used in conjunction with automation systems?
Yes, it is suitable for use in automation systems, providing essential protection against overloads that could disrupt operations.
What is the significance of breaking capacity in circuit protection?
Breaking capacity indicates the maximum fault current the device can interrupt safely, ensuring no electrical hazards arise during overload situations.
Standards
EN 60898-1
