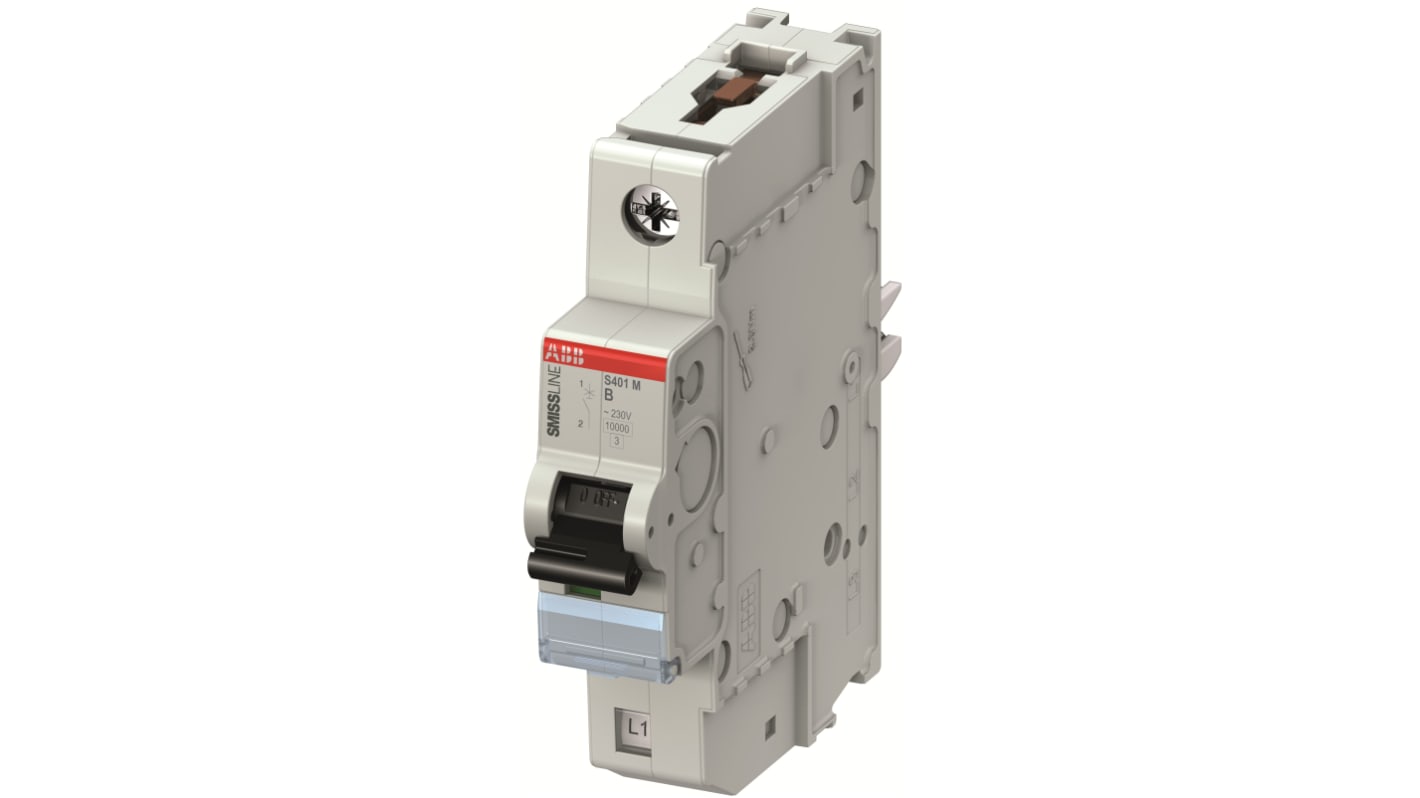

ABB SMISSLINE TP S400M Miniature Circuit Breaker, 1-Pole, 6A, Type B, Type C, Type D, Type K, 400V ac AC, 250 V dc DC,
- RS Stock No.:
- 177-822
- Mfr. Part No.:
- 2CCS571001R0065 - S401MB63
- Brand:
- ABB
Subtotal (1 unit)*
£27.74
(exc. VAT)
£33.29
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.74 |
*price indicative
- RS Stock No.:
- 177-822
- Mfr. Part No.:
- 2CCS571001R0065 - S401MB63
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 6A | |
| Tripping Characteristics | Type B, Type C, Type D, Type K | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 250V dc | |
| Breaking Capacity | 10kA | |
| Mount Type | DIN Rail | |
| Range | SMISSLINE TP | |
| Series | S400M | |
| Width | 18mm | |
| Standards/Approvals | EN 60898-1, IEC/EN 60947-2 | |
| Depth | 75mm | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 6A | ||
Tripping Characteristics Type B, Type C, Type D, Type K | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 250V dc | ||
Breaking Capacity 10kA | ||
Mount Type DIN Rail | ||
Range SMISSLINE TP | ||
Series S400M | ||
Width 18mm | ||
Standards/Approvals EN 60898-1, IEC/EN 60947-2 | ||
Depth 75mm | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- CH
ABB S400M Series MCB, 1 Pole, 6A Current Rating - 2CCS571001R0065 - S401MB63
This MCB is a compact single pole circuit breaker designed for various applications requiring dependable protection. With a current rating of 6A and a breaking capacity of 10kA, it provides suitable circuit protection. Its dimensions are 18mm wide and 75mm long, making it appropriate for installation in confined spaces.
Features & Benefits
• Overload protection minimises equipment damage
• Thermal tripping mechanism enables efficient operation
• Screw terminal connections ensure secure installation
• Compact design saves valuable installation space
• Fast tripping response limits electrical faults
Applications
• Used for protecting household circuits against overload
• Effective in securing lighting systems and appliances
Can it handle both AC and DC supply?
Yes, it supports up to 230V AC and 60V DC.
Is it easy to install on a DIN rail?
Yes, it features a design for simple DIN rail mounting.
