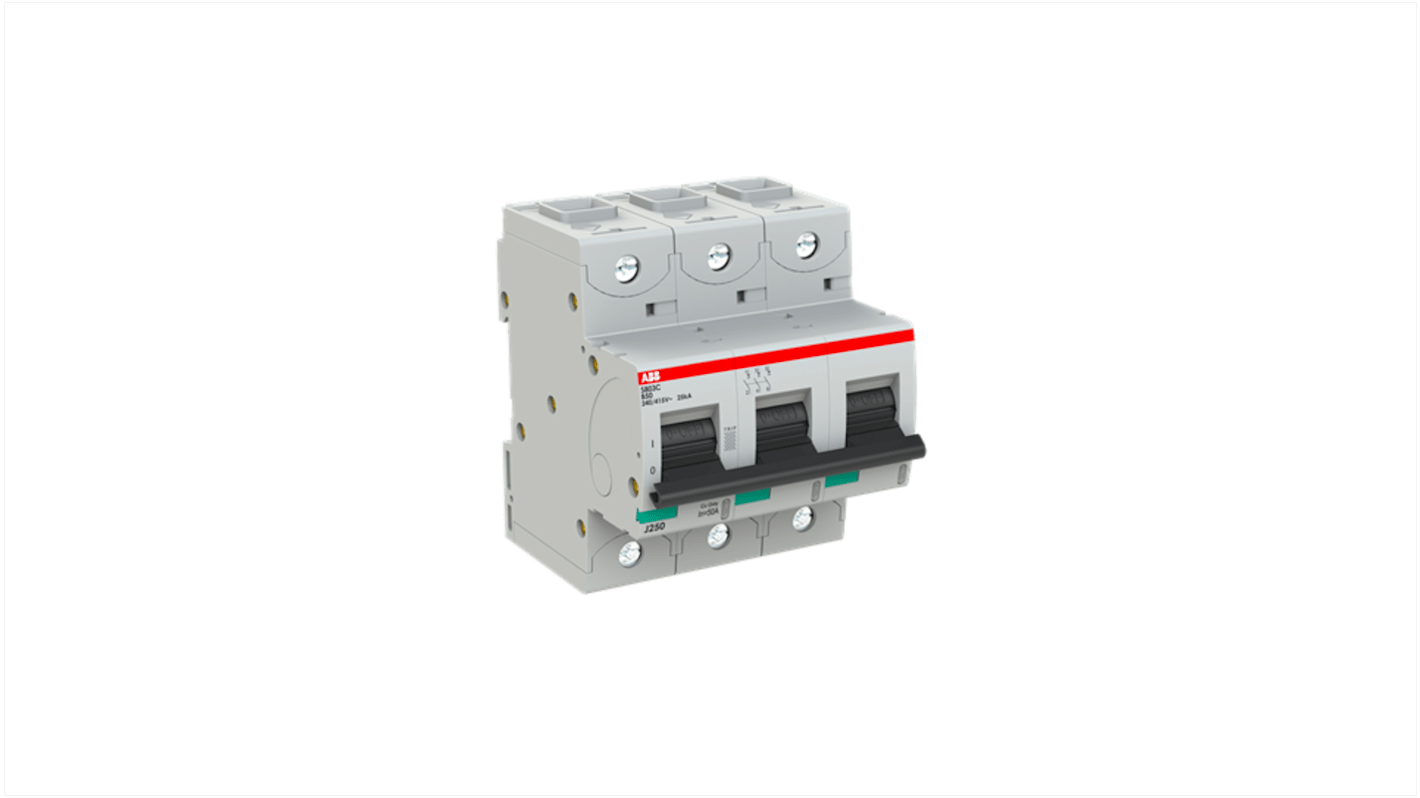

ABB S803C Miniature Circuit Breaker, 3-Pole, 50A, Type B, 415V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 141-238
- Mfr. Part No.:
- 2CCS883001R0505
- Brand:
- ABB
Subtotal (1 unit)*
£155.35
(exc. VAT)
£186.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £155.35 |
*price indicative
- RS Stock No.:
- 141-238
- Mfr. Part No.:
- 2CCS883001R0505
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 50A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 415V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 25kA | |
| Series | S803C | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP40 | |
| Standards/Approvals | UL 1077, IEC/EN 60898-1, IEC/EN 60947-2 | |
| Height | 95mm | |
| Depth | 82.5mm | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 50A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 415V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 25kA | ||
Series S803C | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP40 | ||
Standards/Approvals UL 1077, IEC/EN 60898-1, IEC/EN 60947-2 | ||
Height 95mm | ||
Depth 82.5mm | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high performance MCB is a 3-pole circuit breaker with a B-characteristic, suitable for voltages up to 254/440V. It features both thermal and electromechanic tripping mechanisms for overload and short circuit protection. With a maximum breaking capacity of 25kA, this MCB is ideal for residential, commercial, and industrial applications worldwide, ensuring secure application due to its fast arc extinction.
3-pole High Performance Circuit breaker with B-characteristic
Electromechanic tripping mechanism for short circuit protection
Allows use for residential commercial and industrial applications
Energy limiting class 3 for added safety
Extensive range of accessories available for added convenience
RoHS compliant and meets EU directives
