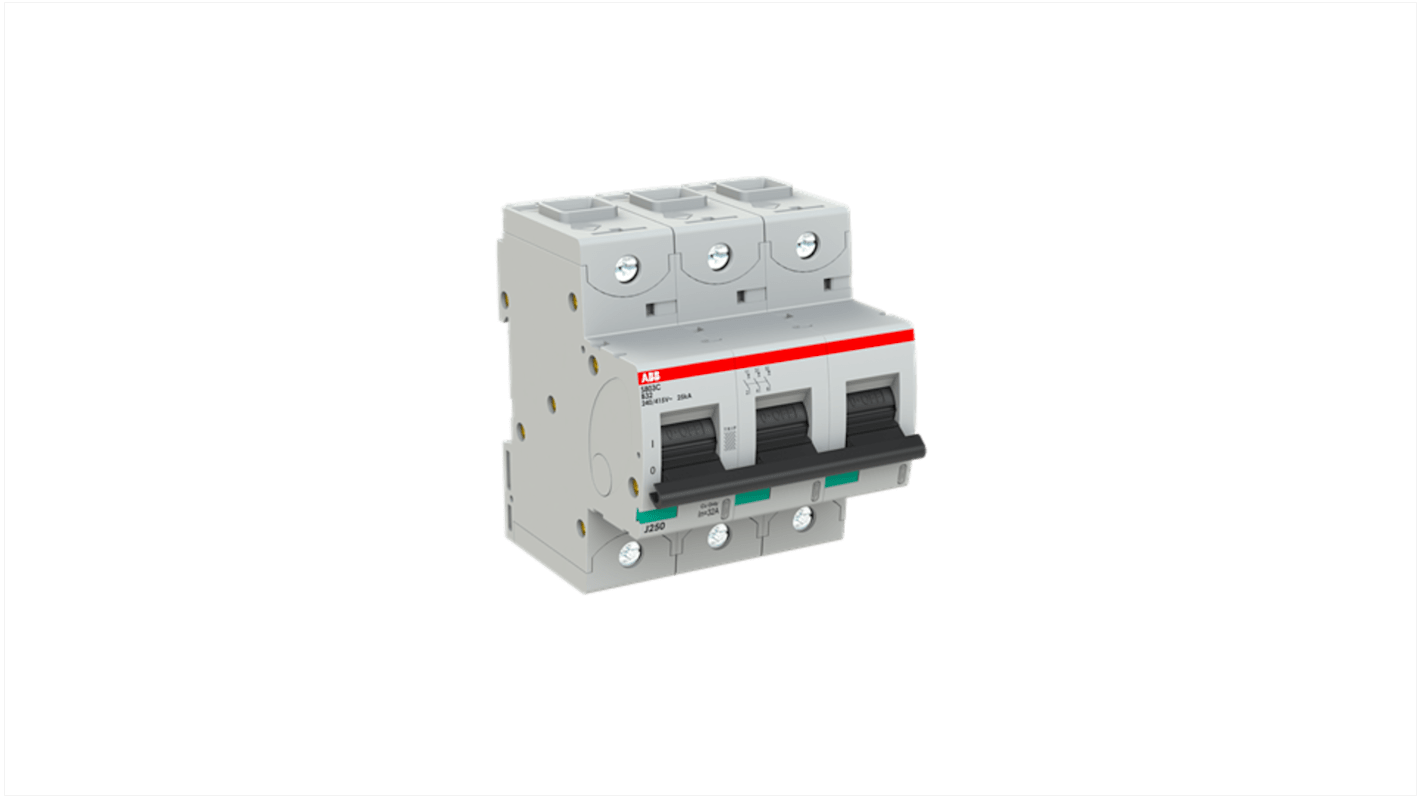

ABB S803C Miniature Circuit Breaker, 3-Pole, 32A, Type B, 415V ac AC, 375 V dc DC, 25 kA Breaking Capacity
- RS Stock No.:
- 141-068
- Mfr. Part No.:
- 2CCS883001R0325
- Brand:
- ABB
Subtotal (1 unit)*
£117.14
(exc. VAT)
£140.57
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.14 |
*price indicative
- RS Stock No.:
- 141-068
- Mfr. Part No.:
- 2CCS883001R0325
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 32A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 415V ac | |
| Rated DC Voltage | 375V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 25kA | |
| Series | S803C | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP40 | |
| Width | 81mm | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Standards/Approvals | UL 1077, IEC/EN 60947-2, IEC/EN 60898-1 | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 32A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 415V ac | ||
Rated DC Voltage 375V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 25kA | ||
Series S803C | ||
Terminal Type Cage Terminal | ||
IP Rating IP40 | ||
Width 81mm | ||
Depth 82.5mm | ||
Height 95mm | ||
Standards/Approvals UL 1077, IEC/EN 60947-2, IEC/EN 60898-1 | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high performance circuit breaker is a 3-pole device with a rated current of 32A. It offers a maximum breaking capacity of 25kA and is suitable for residential, commercial, and industrial applications. With a fast arc extinction, it provides secure protection for your applications.
3-pole high performance circuit breaker
Numerous approvals for worldwide use
Extensive range of accessories available
Fast arc extinction for added security
Provides reliable protection for various applications
Ensures safety with multiple tripping mechanisms
Versatile use for different voltage levels
Global approval for use in different regions
Easy installation with compatible accessories
Secure applications with fast arc extinction
