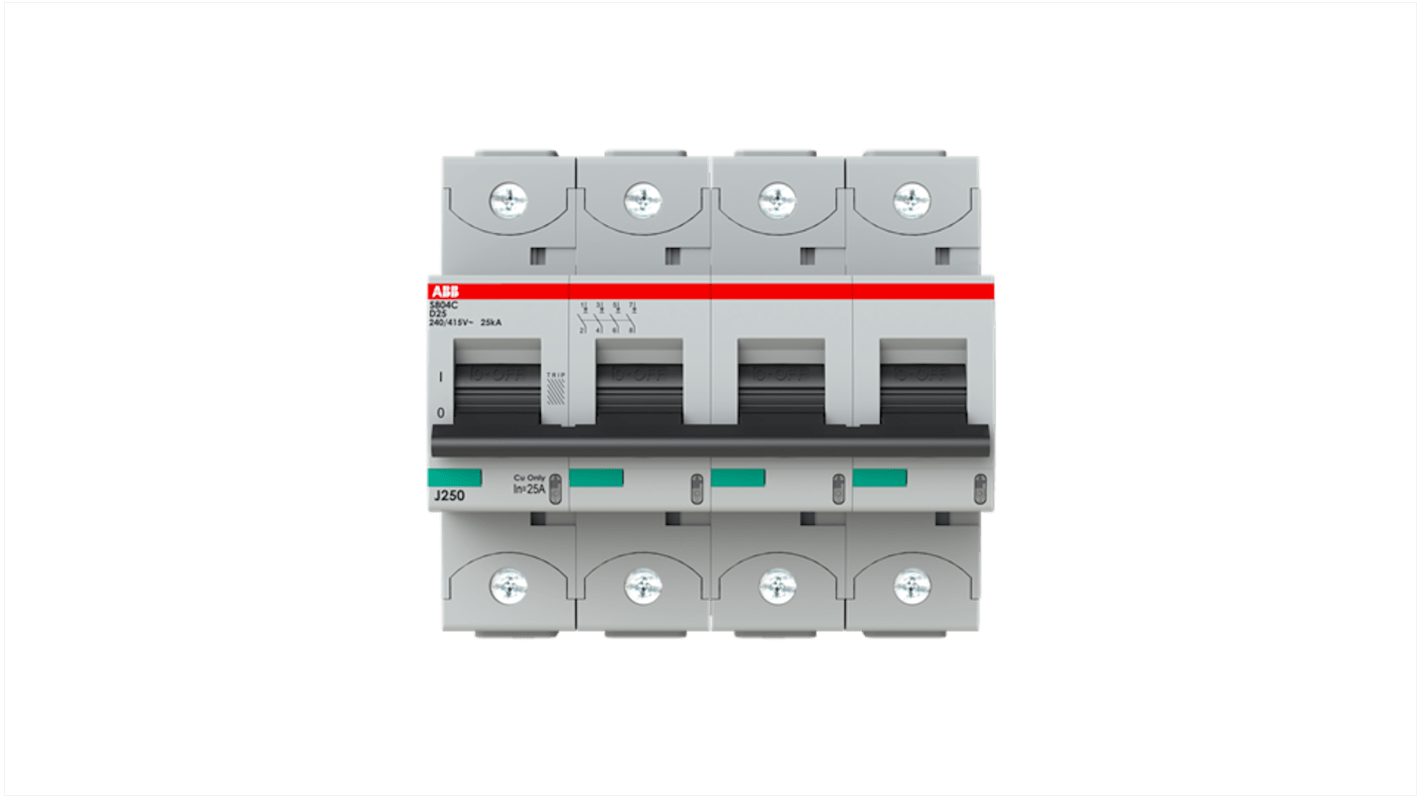

ABB S804C Miniature Circuit Breaker, 4-Pole, 25A, Type D, 415V ac AC, 500 V dc DC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-510
- Mfr. Part No.:
- 2CCS884001R0251
- Brand:
- ABB
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£362.49
(exc. VAT)
£434.99
(inc. VAT)
- RS Stock No.:
- 140-510
- Mfr. Part No.:
- 2CCS884001R0251
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 25A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 415V ac | |
| Rated DC Voltage | 500V dc | |
| Breaking Capacity | 25kA | |
| Series | S804C | |
| Terminal Type | Cage Type | |
| IP Rating | IP20 | |
| Width | 106mm | |
| Standards/Approvals | UL 1077, IEC/EN 60898-1, IEC/EN 60947-2 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 25A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 415V ac | ||
Rated DC Voltage 500V dc | ||
Breaking Capacity 25kA | ||
Series S804C | ||
Terminal Type Cage Type | ||
IP Rating IP20 | ||
Width 106mm | ||
Standards/Approvals UL 1077, IEC/EN 60898-1, IEC/EN 60947-2 | ||
Depth 82.5mm | ||
Height 95mm | ||
- COO (Country of Origin):
- CH
The ABB High Performance MCB is a reliable 4-pole circuit breaker with a current limiting device and maximum breaking capacity of 25kA. Complying with international standards, this MCB ensures overload and short circuit protection for residential, commercial, and industrial applications. With fast arc extinction and various approvals, the provides a secure solution for your electrical systems.
Maximum breaking capacity of 25kA at 240 or 415 V
Current limiting device with D-Characteristic
Thermal tripping mechanism for overload protection
Electromechanic tripping mechanism for short circuit protection
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
