Eaton xEffect xEffect - FAZ-NA-DC Miniature Circuit Breaker, 2-Pole, 4A, Type C, 500 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 103-959
- Mfr. Part No.:
- 137251 FAZ-C4/2-NA-DC
- Brand:
- Eaton
Subtotal (1 unit)*
£238.39
(exc. VAT)
£286.07
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £238.39 |
*price indicative
- RS Stock No.:
- 103-959
- Mfr. Part No.:
- 137251 FAZ-C4/2-NA-DC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 4A | |
| Tripping Characteristics | Type C | |
| Rated DC Voltage | 500V dc | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | xEffect - FAZ-NA-DC | |
| IP Rating | IP20 | |
| Width | 35.4mm | |
| Standards/Approvals | UL 489, IEC 60947, CSA C. . 5, RoHS, IEC 617, EN45545 | |
| Depth | 70.5mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 4A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 500V dc | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series xEffect - FAZ-NA-DC | ||
IP Rating IP20 | ||
Width 35.4mm | ||
Standards/Approvals UL 489, IEC 60947, CSA C. . 5, RoHS, IEC 617, EN45545 | ||
Depth 70.5mm | ||
Height 75.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO

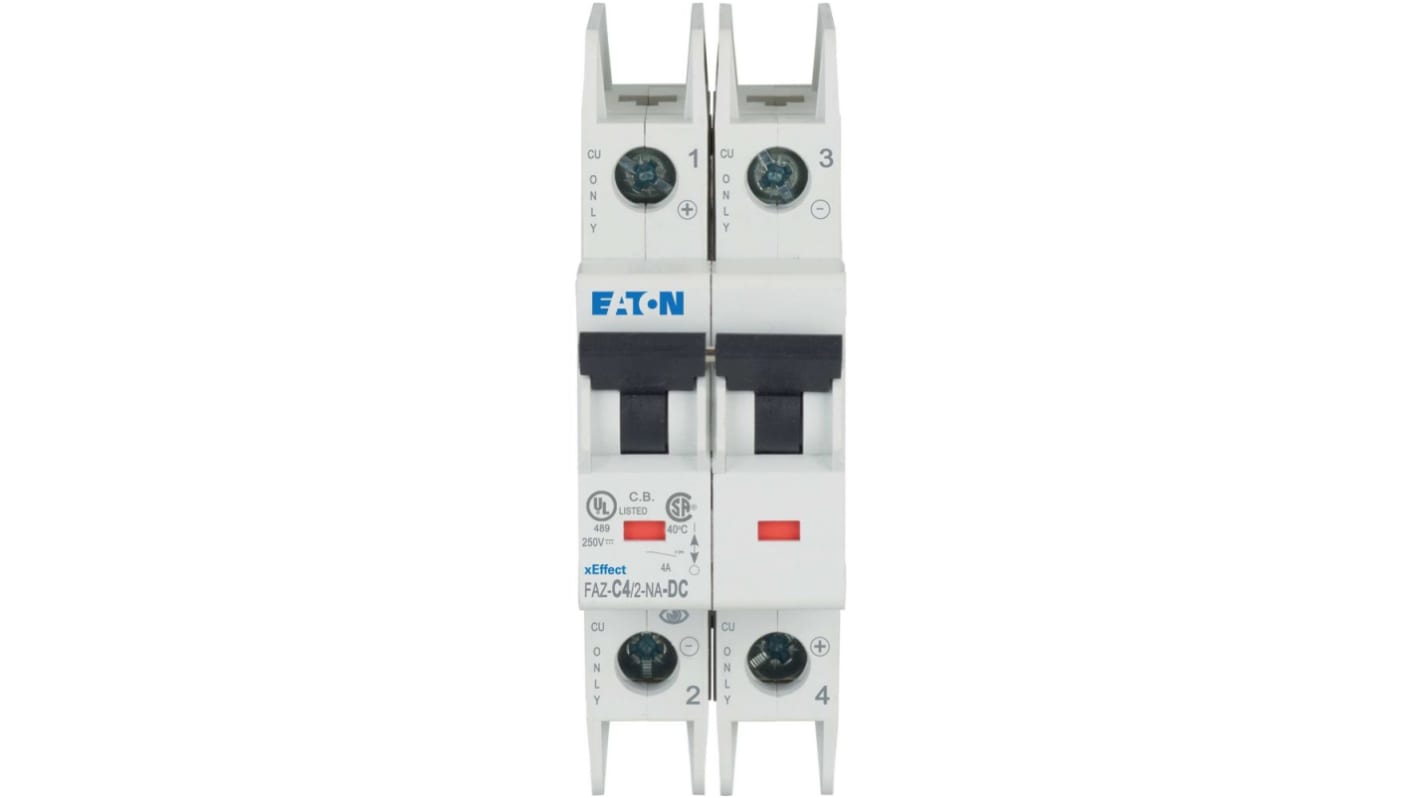

The Eaton 4A, 2-pole miniature circuit breaker (MCB) with a C characteristic is designed specifically for DC applications.
Degree of protection IP20
RoHS compliant
