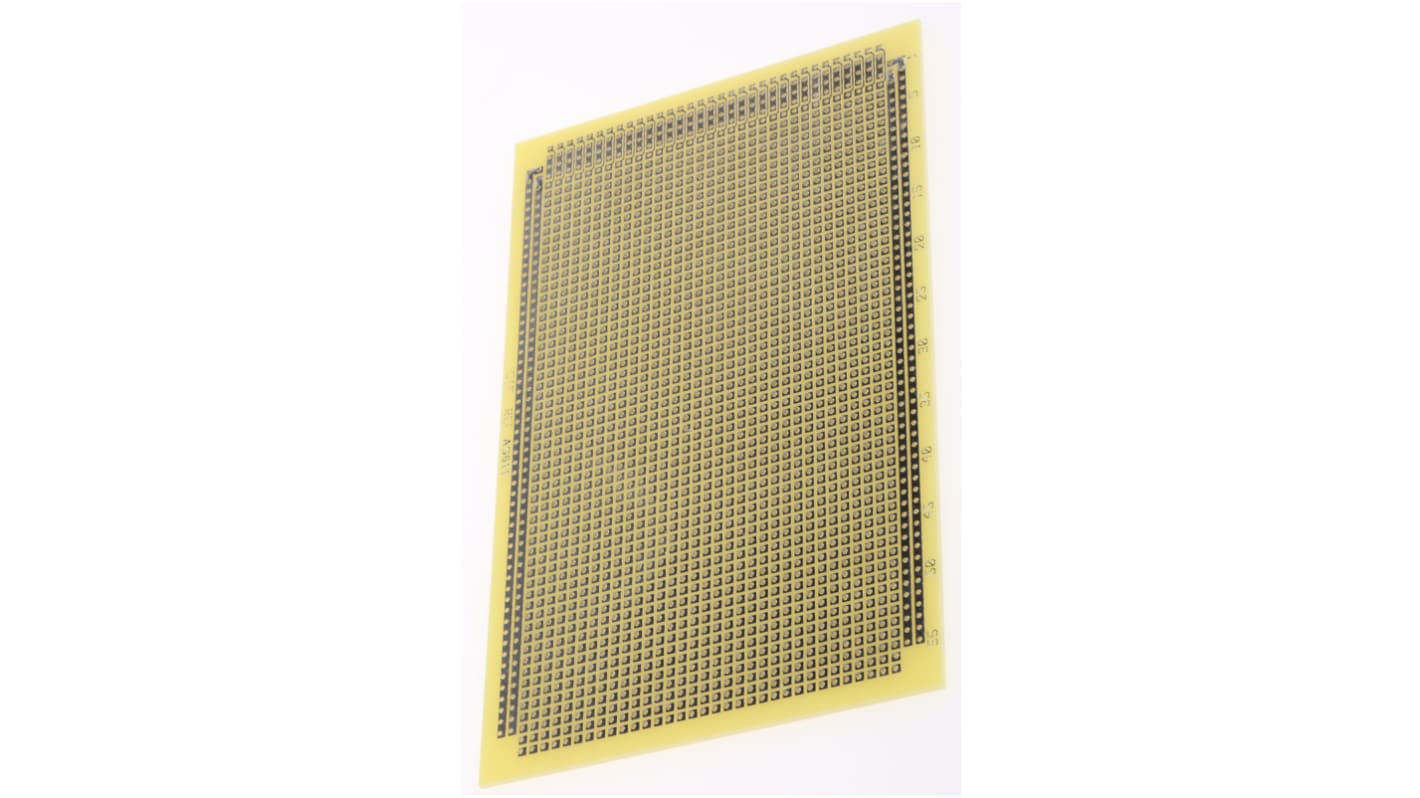

CIF Single Sided Matrix Board FR4 1mm Holes, 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm
- RS Stock No.:
- 498-7709
- Mfr. Part No.:
- AG611
- Brand:
- CIF
59 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£10.80
(exc. VAT)
£12.96
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £10.80 |
| 10 - 19 | £10.26 |
| 20 - 49 | £9.73 |
| 50 + | £9.18 |
- RS Stock No.:
- 498-7709
- Mfr. Part No.:
- AG611
- Brand:
- CIF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Single-sided AG611 type test boards
Single-sided epoxy test board that can accommodate a DIN 41612 connector.
Tinned copper pads.
Tinned copper pads.
DIN Type Matrixboard
Matrix boards with 1mm holes on a 2.50mm pitch.
Specifications
Attribute | Value |
|---|---|
| Number of Sides | 1 |
| Hole Pitch | 2.54 x 2.54mm |
| Dimensions | 160 x 100 x 1.6mm |
| Length | 160mm |
| Width | 100mm |
| Thickness | 1.6mm |
| Base Material | Epoxy Glass Fabric Laminate |
| Hole Diameter | 1mm |
| FR Material Grade | FR4 |
| Connection | DIN 41612 |
