RS PRO Matrix Board FR2 With 34 x 64 1.02mm Holes, 2.54 x 2.54mm Pitch, 160 x 100mm
- RS Stock No.:
- 100-4340
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.99
(exc. VAT)
£11.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
- Plus 57 unit(s) shipping from 24 October 2025
- Plus 58 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £9.99 |
10 - 24 | £9.43 |
25 - 49 | £8.73 |
50 - 99 | £7.44 |
100 + | £6.19 |
*price indicative
- RS Stock No.:
- 100-4340
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Hole Pitch | 2.54 x 2.54mm | |
Dimensions | 160 x 100mm | |
Length | 160mm | |
Width | 100mm | |
Base Material | Synthetic Resin Bonded Paper | |
Hole Diameter | 1.02mm | |
FR Material Grade | FR2 | |
Hole Layout | 34 x 64 | |
Connection | DIN 41612 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Hole Pitch 2.54 x 2.54mm | ||
Dimensions 160 x 100mm | ||
Length 160mm | ||
Width 100mm | ||
Base Material Synthetic Resin Bonded Paper | ||
Hole Diameter 1.02mm | ||
FR Material Grade FR2 | ||
Hole Layout 34 x 64 | ||
Connection DIN 41612 | ||
- COO (Country of Origin):
- GB

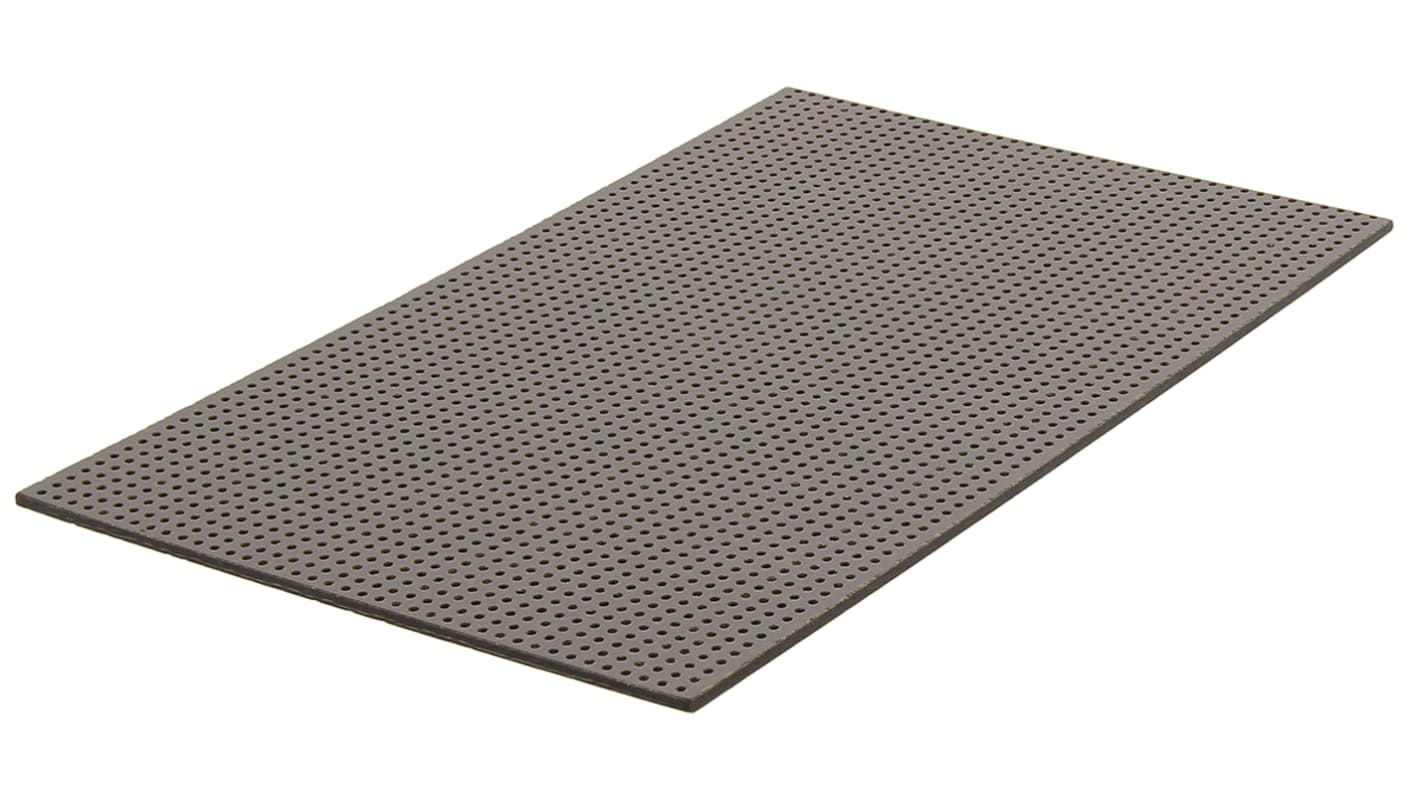

RS PRO Copper Free Matrix Prototyping Board (160 x 100mm)
A copper free matrix board for the development of analogue circuits enabling the secure mounting of wire wrap sockets and pins.
A single sided fully drilled prototyping board that offers a low cost and versatile solution to development allowing discreet components to be connected wire-to-wire or enabling plugs and wrap pins to be fitted.
The board conforms to DIN 41494 standards specifying practices for electronic equipment and mechanical structures of 19-inch series enabling the use with the standard rack-based electrical systems and card frames.
Matrix boards allow you to build a prototype PCB and keep all the parts of your circuit easily accessible. You can also use them as a pre-design layout matrix which can then be copied onto a standard PCB.
Features and Benefits
- Synthetic resin bonded paper base
- DIN 41612 connection
- Dimensions of 160 x 100mm
- FR2 material grade
- Hole diameter of 1.02 mm
- Hole pitch of 2.54 x 2.54 mm
- Single-sided
