Subtotal (1 bag of 10 units)*
£5.50
(exc. VAT)
£6.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £5.50 | £0.55 |
*price indicative
- RS Stock No.:
- 177-7035
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Sleeve Anchor | |
| Sub Type | Sleeve Anchor Hexagon Nut | |
| Drill Diameter | 9 mm | |
| Length | 40mm | |
| Maximum Fixing Thickness | 5mm | |
| Material | Bright Zinc Plated | |
| Finish | Passivated Zinc Plated | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Sleeve Anchor | ||
Sub Type Sleeve Anchor Hexagon Nut | ||
Drill Diameter 9 mm | ||
Length 40mm | ||
Maximum Fixing Thickness 5mm | ||
Material Bright Zinc Plated | ||
Finish Passivated Zinc Plated | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

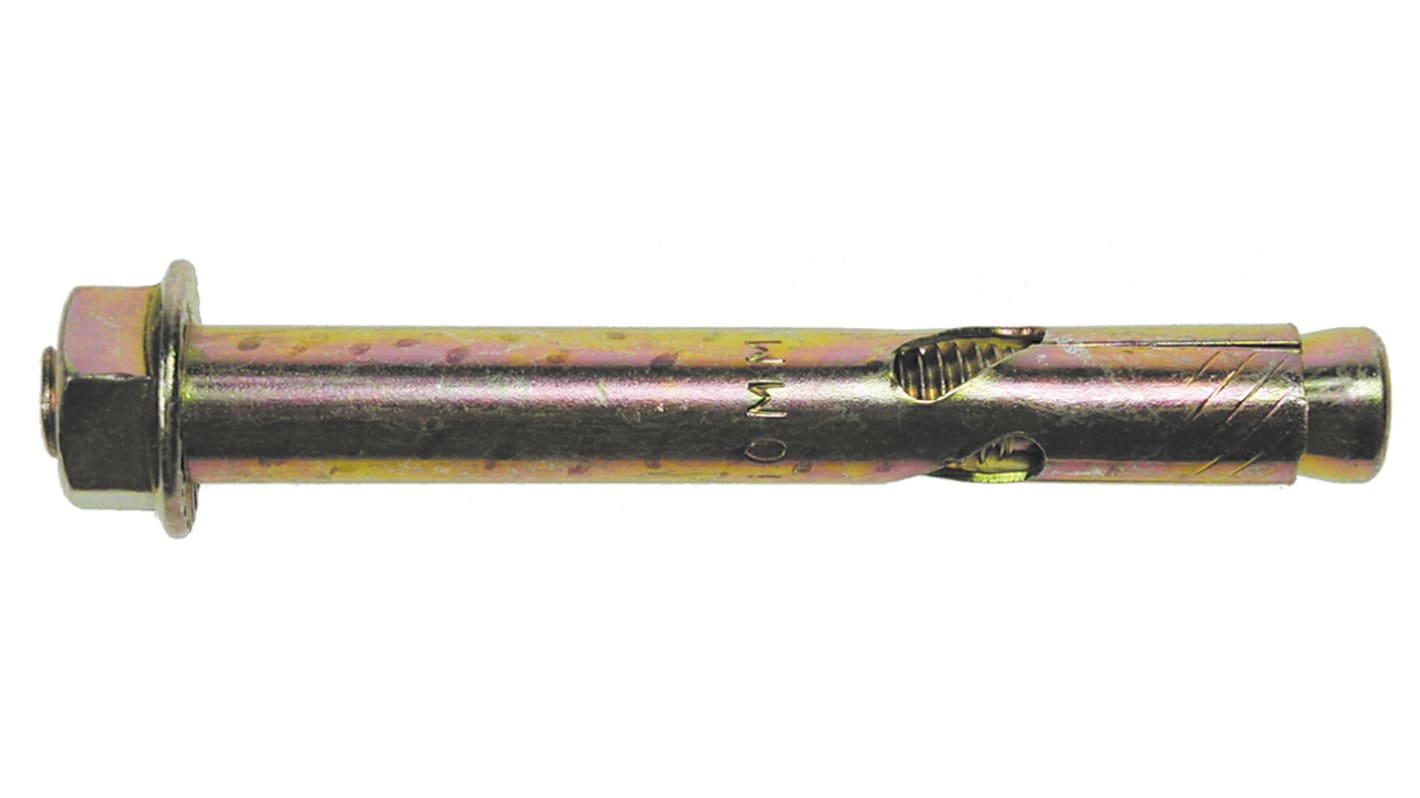

A zinc plated, yellow passivated, torque controlled, sleeve anchor. Suitable for use in non cracked concrete, dense concrete blocks, solid bricks and some natural stone.
Through Fixing
Light to medium duty loads
Torque controlled expansion
Collapse feature to allow a positive clamping force
Supplied pre-assembled for rapid installation
