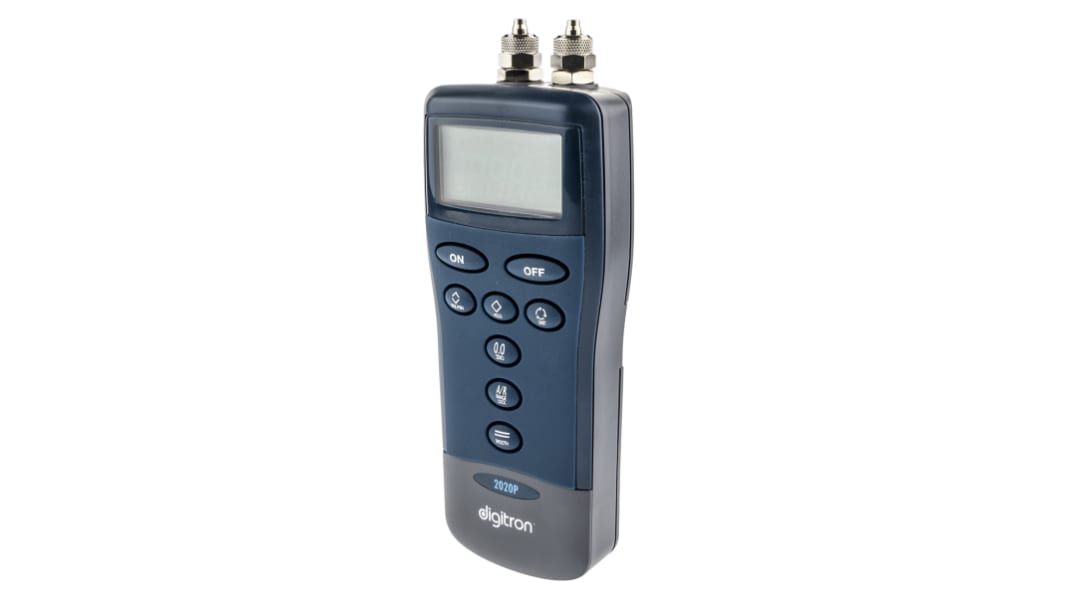

Digitron Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 25 mbar

RS Stock No.:: 313-0924
Mfr. Part No.:: 2020P7
Brand:: Digitron

Digitron Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 25 mbar

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

RS Stock No.:: 313-0924
Mfr. Part No.:: 2020P7
Brand:: Digitron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Digitron
	Product Type	Manometer
	Number of Pressure Ports	2
	Maximum Pressure Measurement	25mbar
	Minimum Pressure Measurement	0mbar
	Pressure Port Type	Differential
	Minimum/Maximum Recordings	Yes
	IP Rating	IP67
	Battery Type	AA
	Minimum Operating Temperature	-10°C
	Maximum Overpressure	350bar
	Maximum Operating Temperature	50°C
	Battery Life	200h
	Display Type	LCD
	Standards/Approvals	No
	Height	40mm
	Width	67mm
	Length	155mm
	Hazardous Area Certification	NO
	Weight	180g

	Select all
	Brand Digitron
	Product Type Manometer
	Number of Pressure Ports 2
	Maximum Pressure Measurement 25mbar
	Minimum Pressure Measurement 0mbar
	Pressure Port Type Differential
	Minimum/Maximum Recordings Yes
	IP Rating IP67
	Battery Type AA
	Minimum Operating Temperature -10°C
	Maximum Overpressure 350bar
	Maximum Operating Temperature 50°C
	Battery Life 200h
	Display Type LCD
	Standards/Approvals No
	Height 40mm
	Width 67mm
	Length 155mm
	Hazardous Area Certification NO
	Weight 180g

RoHS Status: Exempt

COO (Country of Origin):: GB

Digitron 2020P, 0-25 mbar, Differential Manometer

Applications include precision pressure setting of burners in HVAC applications and flowmeter testing at low offset pressures.

Digitron 2000P Series - Manometers

Hand-held manometers series. Features found in the range include:

Robust design. IP67 with hose connected, operates between -10 and +50°C, backlit 12.7mm display, reinforced silicone key pad and separate battery compartment

Accuracy: 0.15% rdg + 0.1fs +digit (+20 to +30°C); 0.15% rdg + 0.15% fs digit (elsewhere)

Connection: 2 inputs via 1/8 BSP (4mm id, 6mm od hose)

Zeroing absolute user input of local barometric conditions for additional accuracy

Preset engineering units - mbar, Pa, inH_²O, mH_²O, inHg, mHg, kPa, PSI

Min/Max & Average recording, range lock & selectable auto off

Smoothing. Filters low level fluctuations to provide a stable display when measuring unsteady pressure levels

Automatic leak testing. Instrument measures pressure leakage from a system over a user specified test duration time. At the end of the test time a Pass/Fail message is displayed and logged to memory

Long battery life. Typically 200 hours (requires 2 x AA batteries, stock no 591-225)

Dimensions: 155 x 67 x 40mm, weight 180g

All instruments are supplied with instruction manual.

Model 202xP and 208xP additional features:

7 pre-set engineering units

Range lock, Min / Max recorder

Smoothing

Model 208xP additional features:

Automatic leak testing

250 memory logging on demand or at preset intervals

Min/Max and averaging recorder

4 digit reference coding of logged data

Cal function zero

Infra red serial interface to connect via DigiLink interface direct to a serial printer or PC

User-definable scaling

Note

Requires 2xAA batteries (please see 744-2199 )

Supplied with

Instruction manual
