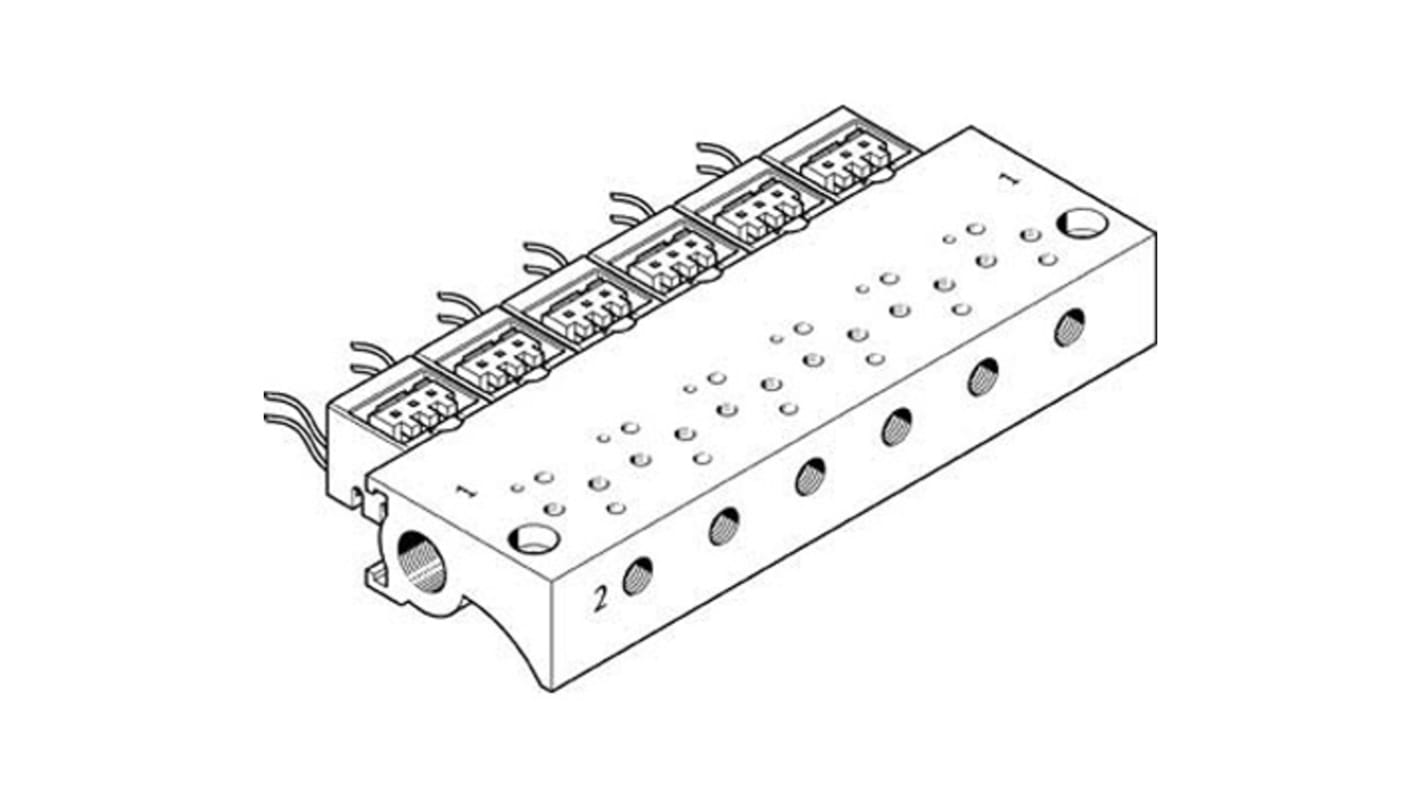

Festo MHA1 series 6 station Metric M3 Manifold for use with Valves, 197229
- RS Stock No.:
- 288-7806
- Mfr. Part No.:
- MHA1-P6-2-M3-PI
- Brand:
- Festo
Subtotal (1 unit)*
£85.85
(exc. VAT)
£103.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £85.85 |
*price indicative
- RS Stock No.:
- 288-7806
- Mfr. Part No.:
- MHA1-P6-2-M3-PI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Number of Stations | 6 | |
Connection Port Thread | Metric M3 | |
Manufacturer Series | MHA1 | |
Type | Manifold | |
Body Material | Aluminium Alloy | |
Model Number | 197229 | |
For Use With | Valves | |
Select all | ||
---|---|---|
Brand Festo | ||
Number of Stations 6 | ||
Connection Port Thread Metric M3 | ||
Manufacturer Series MHA1 | ||
Type Manifold | ||
Body Material Aluminium Alloy | ||
Model Number 197229 | ||
For Use With Valves | ||
- COO (Country of Origin):
- DE
The Festo Manifold is designed for industrial automation applications, offering a reliable solution for controlling valve positions. With a maximum of 6 valve positions and an operating pressure range of 0 to 8 bar, this manifold ensures efficient and precise performance in various pneumatic systems.
Max. number of valve positions: 6
Operating pressure range: 0 bar to 8 bar
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class: Low corrosion stress (CRC 1)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature range: -10°C to 60°C
Mounting method: With through-hole sub-base
Pneumatic connections: Port 1 - M7, Port 2 - M3
Material: Wrought aluminium alloy
Suitable for lubricated operation
Operating pressure range: 0 bar to 8 bar
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class: Low corrosion stress (CRC 1)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature range: -10°C to 60°C
Mounting method: With through-hole sub-base
Pneumatic connections: Port 1 - M7, Port 2 - M3
Material: Wrought aluminium alloy
Suitable for lubricated operation
