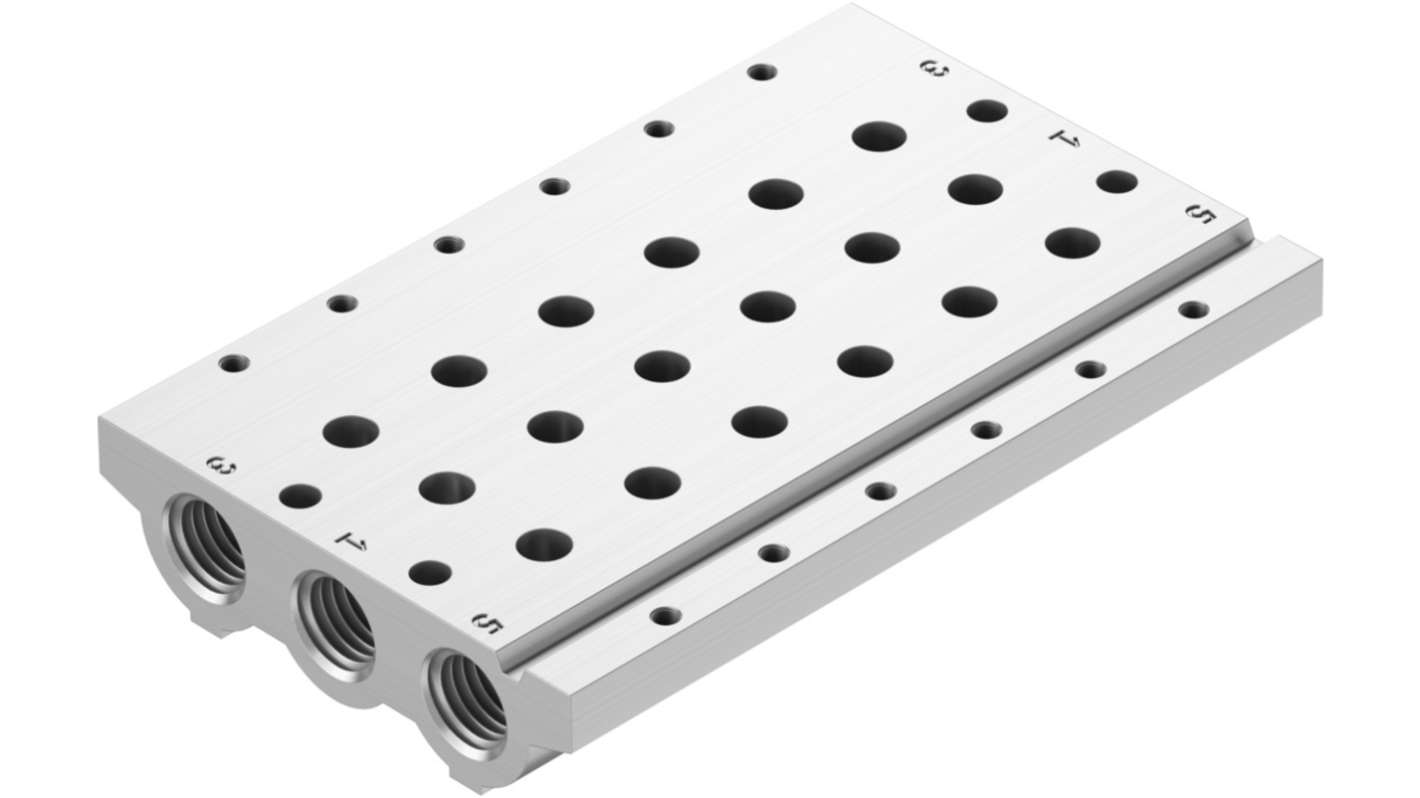

Festo VABM series 6 station G 1/4 Manifold Base for use with VUVG-LK Series Individual Valves, 566622
- RS Stock No.:
- 136-6900
- Mfr. Part No.:
- VABM-L1-14S-G14-6
- Brand:
- Festo
Subtotal (1 unit)*
£92.70
(exc. VAT)
£111.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £92.70 |
*price indicative
- RS Stock No.:
- 136-6900
- Mfr. Part No.:
- VABM-L1-14S-G14-6
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Number of Stations | 6 | |
Connection Port Thread | G 1/4 | |
Manufacturer Series | VABM | |
Type | Manifold Base | |
Body Material | Aluminium Alloy | |
Thread Size | 1/4in | |
Thread Standard | G | |
For Use With | VUVG-LK Series Individual Valves | |
Mounting Type | Base | |
Model Number | 566622 | |
Electrical Connection Type | Screw | |
Select all | ||
---|---|---|
Brand Festo | ||
Number of Stations 6 | ||
Connection Port Thread G 1/4 | ||
Manufacturer Series VABM | ||
Type Manifold Base | ||
Body Material Aluminium Alloy | ||
Thread Size 1/4in | ||
Thread Standard G | ||
For Use With VUVG-LK Series Individual Valves | ||
Mounting Type Base | ||
Model Number 566622 | ||
Electrical Connection Type Screw | ||
- COO (Country of Origin):
- CN
Festo VABM Series Manifold Base, 6 Number of Stations, G 1/4 Connection Port Thread - VABM-L1-14S-G14-6, Numeric Part Number: 566622
This manifold base is engineered for seamless integration with the VUVG-LK series valves, offering impressive functionality within a compact form factor. Constructed from durable aluminium alloy, it features a base-mounted design that allows for multiple pneumatic connections, making it an essential component for various automation applications. This model supports a maximum of six stations and is designed to operate effectively under pressures ranging from -0.09 MPa to 1 MPa.
Features & Benefits
• G 1/4 threaded connections facilitate secure and reliable pneumatic links
• Multiple station capability enhances versatility in system configurations
• Moderate corrosion resistance suits diverse industrial environments
• Cleanroom class 5 compliance is ideal for sensitive usage
• Suitable for Li-ion battery production with specified restrictions
• Multiple station capability enhances versatility in system configurations
• Moderate corrosion resistance suits diverse industrial environments
• Cleanroom class 5 compliance is ideal for sensitive usage
• Suitable for Li-ion battery production with specified restrictions
Applications
• Utilised in automated assembly lines for efficient valve control
• Ideal for integration with pneumatic systems in electronic manufacturing
• Supports complex setups requiring multi-station configurations
• Effective in environments necessitating cleanroom standards
• Used in focused on battery technology development
• Ideal for integration with pneumatic systems in electronic manufacturing
• Supports complex setups requiring multi-station configurations
• Effective in environments necessitating cleanroom standards
• Used in focused on battery technology development
What are the maximum tightening torque values for installation?
The maximum tightening torque for H-rail mounting is 1.5 Nm, while for valve mounting it is 0.65 Nm. For wall mounting, the maximum value is set at 3 Nm.
How does this component ensure reliability in industrial applications?
The use of aluminium alloy in construction provides both strength and corrosion resistance, making it robust enough to handle moderate stress in various working environments.
What type of electrical connection is supported?
It features a screw-type electrical connection, enabling straightforward wiring and ensuring secure connections during operation.
Can it operate under variable pressure conditions?
Yes, it supports an operational pressure range from -0.09 MPa to 1 MPa, allowing adaptability in diverse pneumatic systems.
