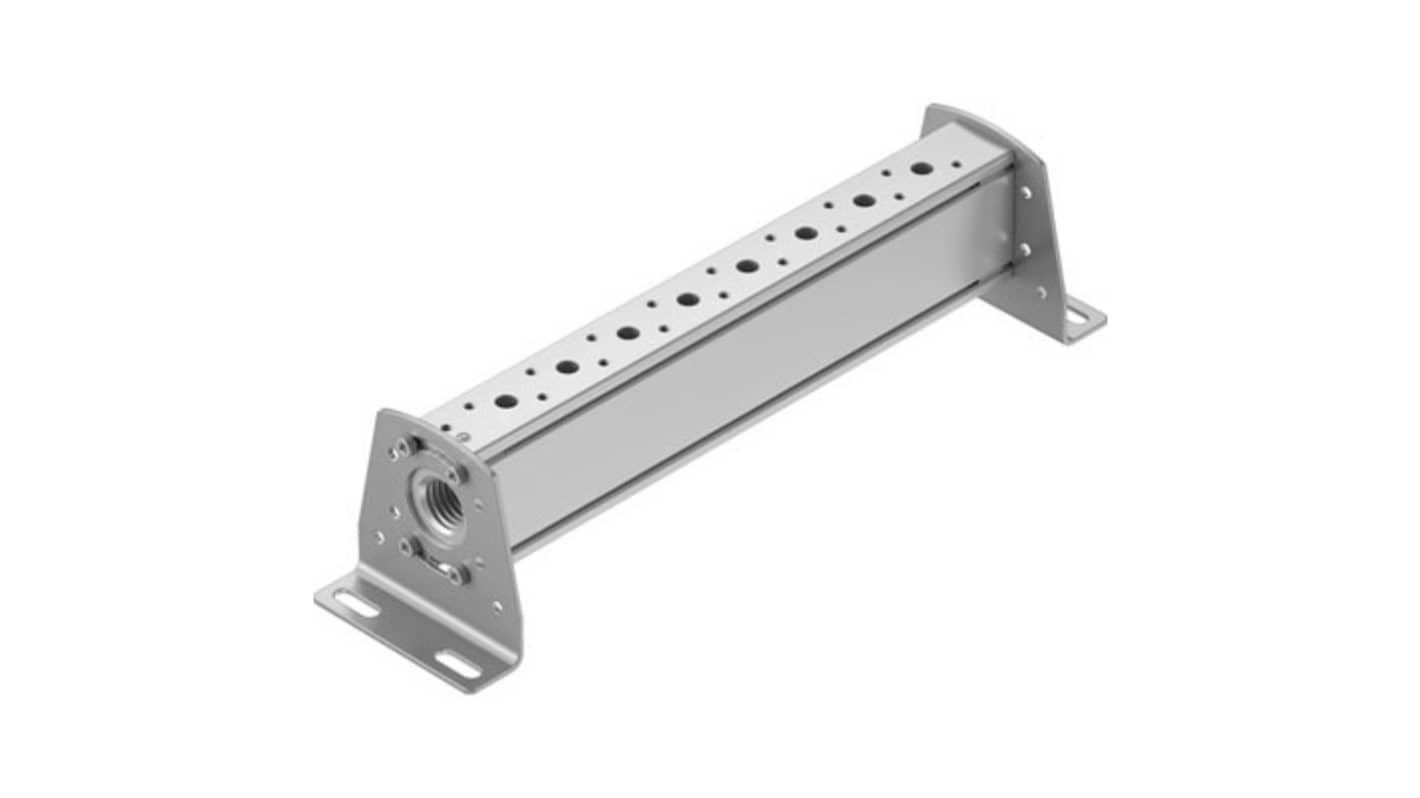

Festo VABM-B10 series 8 station NPT 1/2 Manifold for use with Solenoid And Pneumatic Valve, 8026234
- RS Stock No.:
- 647-224
- Mfr. Part No.:
- VABM-B10-25-N12-8-P53
- Brand:
- Festo
Subtotal (1 unit)*
£76.30
(exc. VAT)
£91.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £76.30 |
*price indicative
- RS Stock No.:
- 647-224
- Mfr. Part No.:
- VABM-B10-25-N12-8-P53
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Number of Stations | 8 | |
Connection Port Thread | NPT 1/2 | |
Manufacturer Series | VABM-B10 | |
Type | Common Supply Manifold | |
Body Material | Wrought Aluminium Alloy | |
Model Number | 8026234 | |
For Use With | Solenoid And Pneumatic Valve | |
Select all | ||
---|---|---|
Brand Festo | ||
Number of Stations 8 | ||
Connection Port Thread NPT 1/2 | ||
Manufacturer Series VABM-B10 | ||
Type Common Supply Manifold | ||
Body Material Wrought Aluminium Alloy | ||
Model Number 8026234 | ||
For Use With Solenoid And Pneumatic Valve | ||
- COO (Country of Origin):
- HU
The Festo Common Supply Manifold is expertly designed to facilitate efficient pneumatic systems, enabling streamlined operations across multiple valve positions. Ideal for applications where space is limited, this manifold features a compact grid dimension of 27.5 mm, allowing for optimal integration and arrangement. Engineered for maximum versatility, it supports up to 8 valve positions and is suitable for various mounting configurations, making it an excellent choice for diverse industrial environments. With its light yet robust construction from a wrought aluminium alloy, this manifold ensures both durability and compliance with RoHS standards, ensuring minimal environmental impact while maintaining superior performance.
Suitable for optional mounting positions accommodating various installation needs
Constructed from wrought aluminium alloy for strength and durability
Corrosion resistance class CRC 2 allows for use in moderately corrosive environments
Compliant with RoHS standards which ensuring environmentally friendly application
Features 1/2 NPT pneumatic connection for reliable leak-free performance
Lightweight design at 750 g reduces the overall load on the system
Constructed from wrought aluminium alloy for strength and durability
Corrosion resistance class CRC 2 allows for use in moderately corrosive environments
Compliant with RoHS standards which ensuring environmentally friendly application
Features 1/2 NPT pneumatic connection for reliable leak-free performance
Lightweight design at 750 g reduces the overall load on the system
