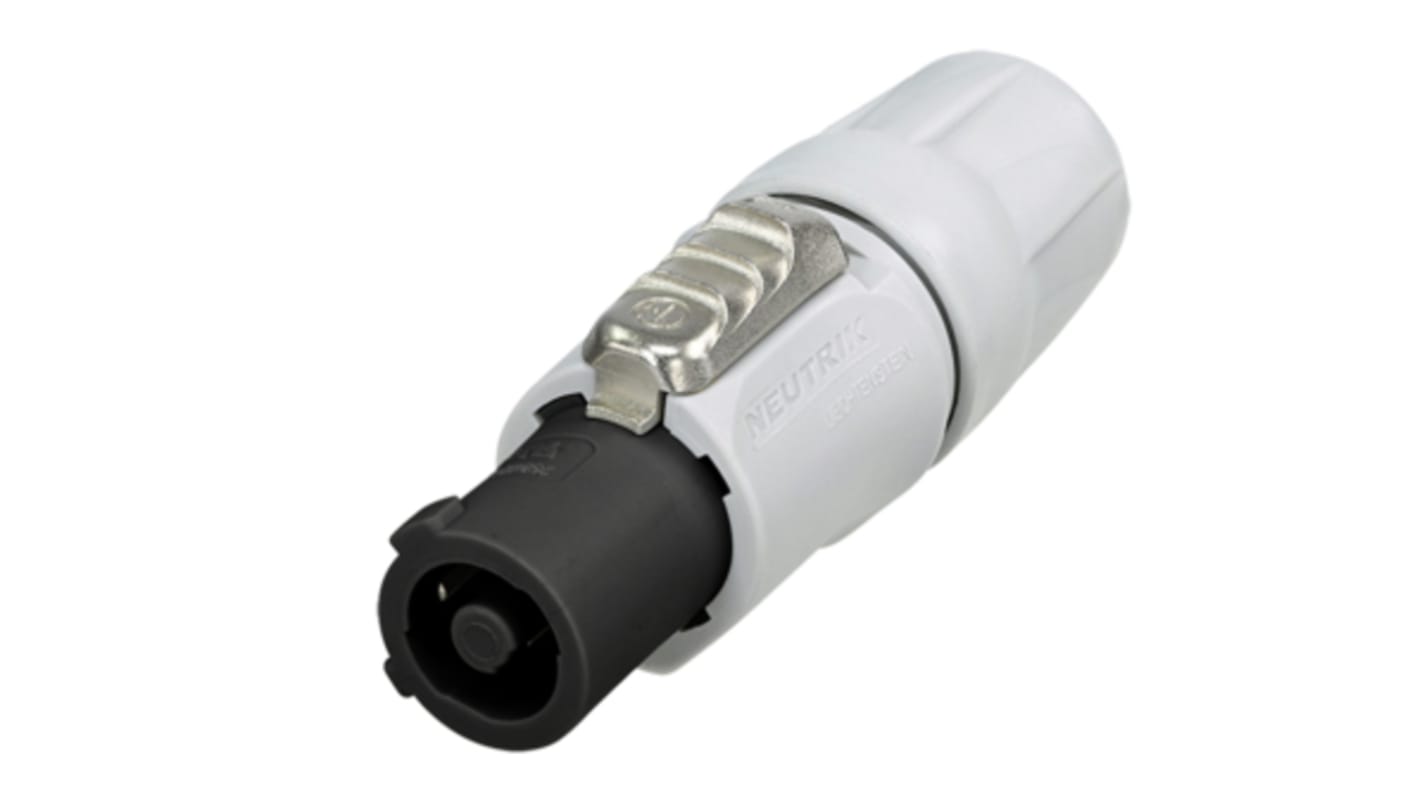

Neutrik Mains Connector, 20A Grey, Cable Mount Nylon Screw, Solder, 250 V
- RS Stock No.:
- 246-8284
- Mfr. Part No.:
- NAC3FCB-1
- Brand:
- Neutrik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£8.29
(exc. VAT)
£9.95
(inc. VAT)
- RS Stock No.:
- 246-8284
- Mfr. Part No.:
- NAC3FCB-1
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Neutrik | |
| Plug/Socket | Socket | |
| Current Rating | 20A | |
| Mounting Type | Cable Mount | |
| Number of USB Sockets | 0 | |
| Voltage Rating | 250 V | |
| Pole Format | 3P | |
| Colour | Grey | |
| Gender | Female | |
| Body Material | Nylon | |
| Termination Method | Screw, Solder | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
Select all | ||
|---|---|---|
Brand Neutrik | ||
Plug/Socket Socket | ||
Current Rating 20A | ||
Mounting Type Cable Mount | ||
Number of USB Sockets 0 | ||
Voltage Rating 250 V | ||
Pole Format 3P | ||
Colour Grey | ||
Gender Female | ||
Body Material Nylon | ||
Termination Method Screw, Solder | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- LI
Neutrik Locking Mains Connector
PLEASE NOTE: CHANGE MADE TO MATERIAL (NOW COLOURED BLACK).
NOW V0 RATED MATERIAL Please see datasheets etc.
NOW V0 RATED MATERIAL Please see datasheets etc.
The Neutrik female locking mains connector has a current rating of 20A and voltage rating of 250V ac with a nylon body. The Powercon® range of professional locking mains appliance couplers meet the latest safety standards and fill the gap between non-locking IEC connectors and expensive, large 3-phase power plugs. Cable connectors have solid contacts with screw terminals which accept a 1.5mm hex key, (use with ferrules supplied for stranded wire). Chassis connectors are fitted with flat tabs (4.8mmx0.5mm) for 0.187in. crimp receptacles or soldering.
Note:
Powercon is a registered trademark of Neutrik AG.
Note:
Powercon is a registered trademark of Neutrik AG.
Features and Benefits:
Cable mount
Quick lock with release lever
Colour coded, non-interchangeable A (Power In)
Easy to assemble
Earth 'make' first
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique chuck type strain relief
Improved kink protection by 2-component bushing
IP20 rating
Flammability rating UL94V-0
Temperature range -30 °C to +80°C
Contact plating Ag
Contacts Copper Alloy
Outside cable diameter 6-15mm
Wire size 2.5mm², 12AWG
Quick lock with release lever
Colour coded, non-interchangeable A (Power In)
Easy to assemble
Earth 'make' first
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique chuck type strain relief
Improved kink protection by 2-component bushing
IP20 rating
Flammability rating UL94V-0
Temperature range -30 °C to +80°C
Contact plating Ag
Contacts Copper Alloy
Outside cable diameter 6-15mm
Wire size 2.5mm², 12AWG
Certifications
UL approved
SEV approved
VDE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
SEV approved
VDE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Note
In 2021 the part number changes from NAC3FCB to NAC3FXXB-W
