- RS Stock No.:
- 917-5658
- Mfr. Part No.:
- E887
- Brand:
- Eclipse
144 In stock - FREE next working day delivery available
Added
Price 1 Bag of 2
£13.53
(exc. VAT)
£16.24
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
1 - 4 | £13.53 | £6.765 |
5 - 9 | £12.87 | £6.435 |
10 - 19 | £12.19 | £6.095 |
20 + | £11.37 | £5.685 |
*price indicative |
- RS Stock No.:
- 917-5658
- Mfr. Part No.:
- E887
- Brand:
- Eclipse
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

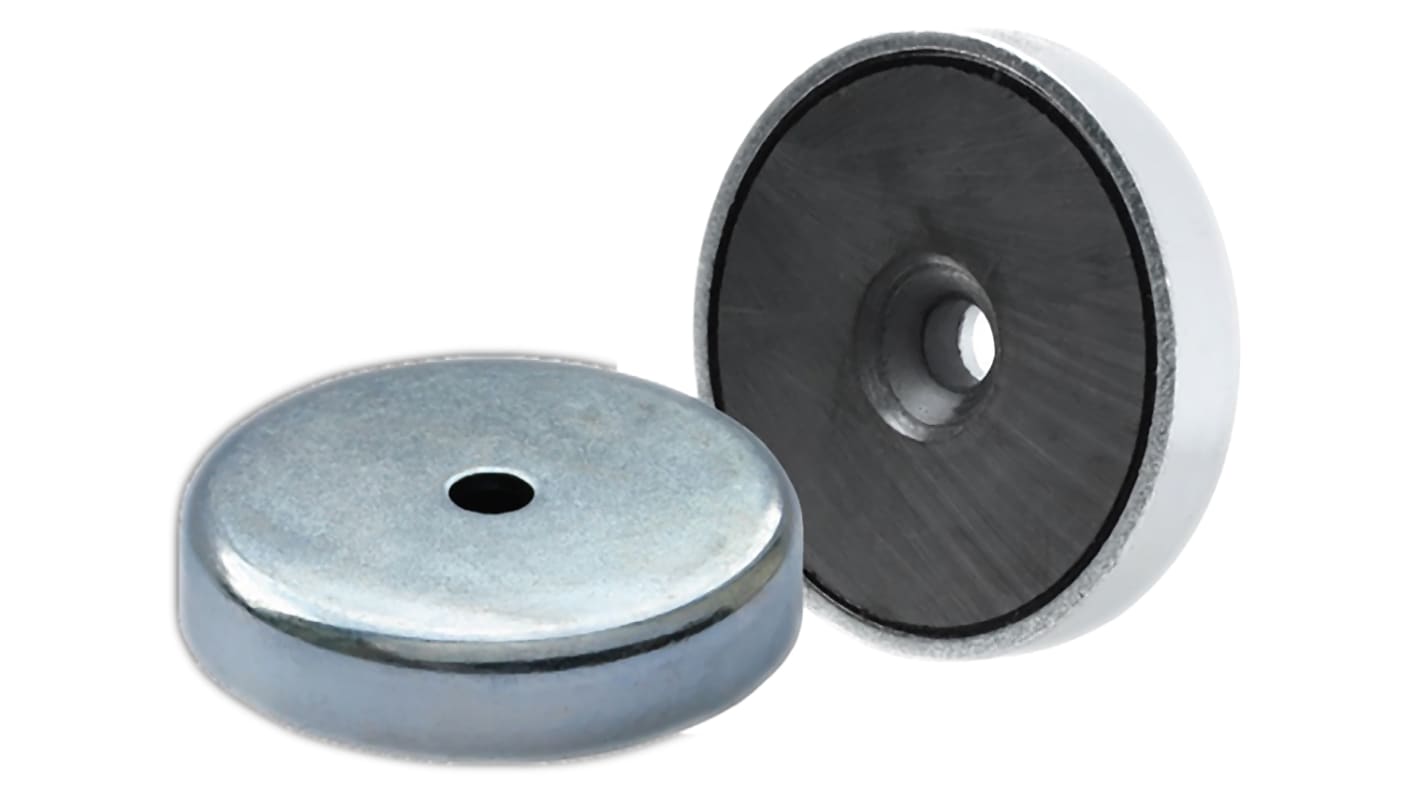

Eclipse Shallow Pot Magnet
The Eclipse shallow pot magnet is a ferromagnetic steel cup into which a countersunk ring magnet is inserted and has pull force up to 7.2kg. There is a hole through the countersunk mounting pot magnet. This allows an M4 screw thread to be inserted into the magnet to screw the countersunk mounting pot magnet to any material of your choice to give a good mechanical hold. It is a very popular pot magnet, ideal for clamping and holding applications. This has a maximum operating temperature of 120°C.
Caution
Take care not to over tighten the screw to prevent breaking the magnet material.
Caution
Take care not to over tighten the screw to prevent breaking the magnet material.
Features and Benefits
Height of 6mm and diameter of 20mm
Excellent resistance to corrosion
Mild steel pot with zinc plated body
Hole size is 4.2mm
Weight is 0.09kg
Excellent resistance to corrosion
Mild steel pot with zinc plated body
Hole size is 4.2mm
Weight is 0.09kg
Specifications
Attribute | Value |
---|---|
Magnet Type | Pot |
Width/Diameter | 20mm |
Pull Force | 2.7kg |
Attachment Type | Hole |
Material | Ferrite |
Length | 6mm |
