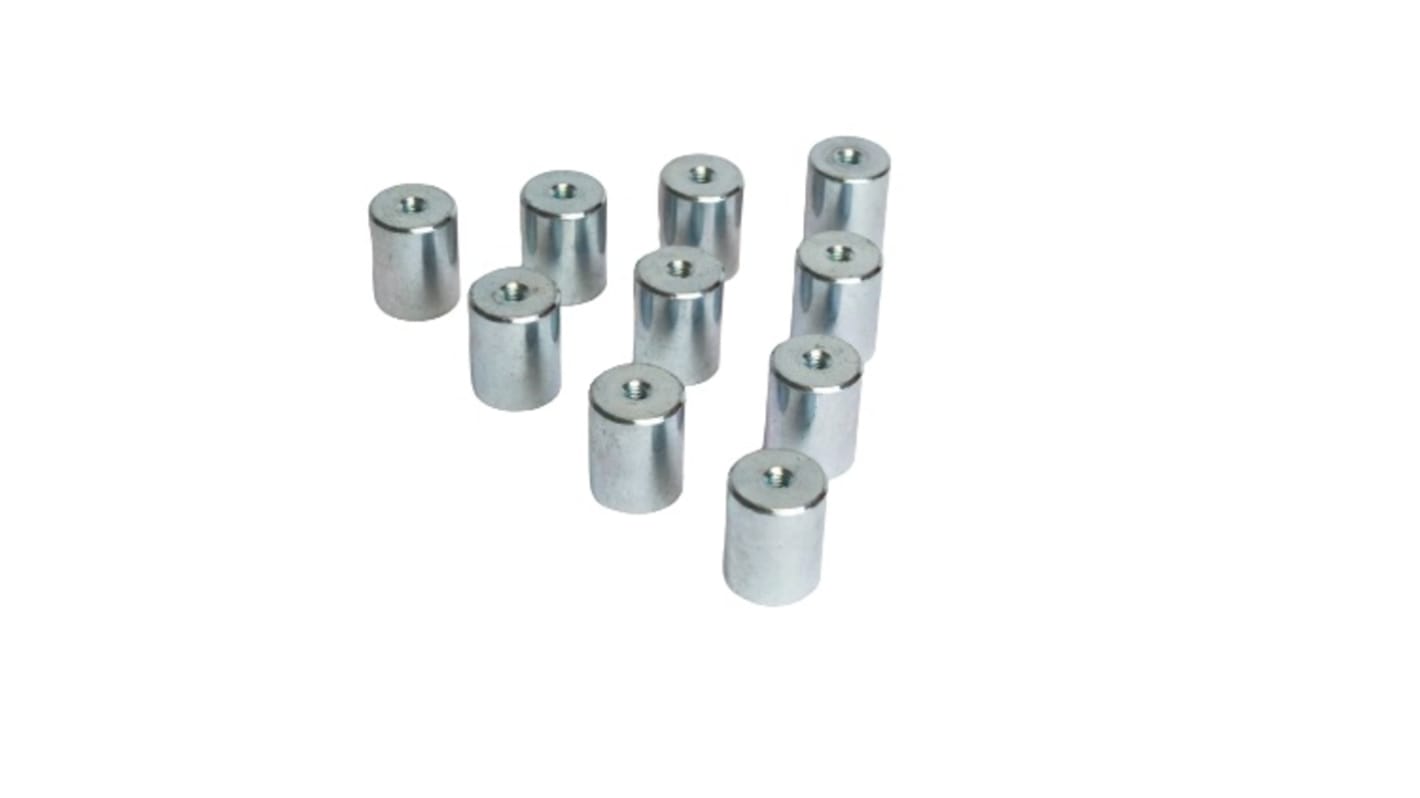

Eclipse Magnet Pot Magnet 16 mm Threaded Hole, 1.8 kg Pull 20 mm
- RS Stock No.:
- 267-0510
- Mfr. Part No.:
- E744
- Brand:
- Eclipse
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 267-0510
- Mfr. Part No.:
- E744
- Brand:
- Eclipse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eclipse | |
| Product Type | Magnet | |
| Width/Diameter | 16mm | |
| Pull Force | 1.8kg | |
| Thickness | 20mm | |
| Attachment Type | Threaded Hole | |
| Magnet Shape | Pot Magnet | |
| Standards/Approvals | No | |
| Thread Size | M4 | |
| Select all | ||
|---|---|---|
Brand Eclipse | ||
Product Type Magnet | ||
Width/Diameter 16mm | ||
Pull Force 1.8kg | ||
Thickness 20mm | ||
Attachment Type Threaded Hole | ||
Magnet Shape Pot Magnet | ||
Standards/Approvals No | ||
Thread Size M4 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Eclipse internal threaded mounting pot magnet is also known as an internal threaded pot magnet. Deeper or taller versions of the internal threaded mounting pot magnet are sometimes also known as deep pot magnets, although this is rather a loose terminology. The internal threaded mounting pot magnet is a pot magnet that has a threaded hole in the centre of the ferromagnetic mild steel cup and a solid disc magnet inserted inside the cup.
Zinc plated body
Brass spacer
Good corrosion resistance
