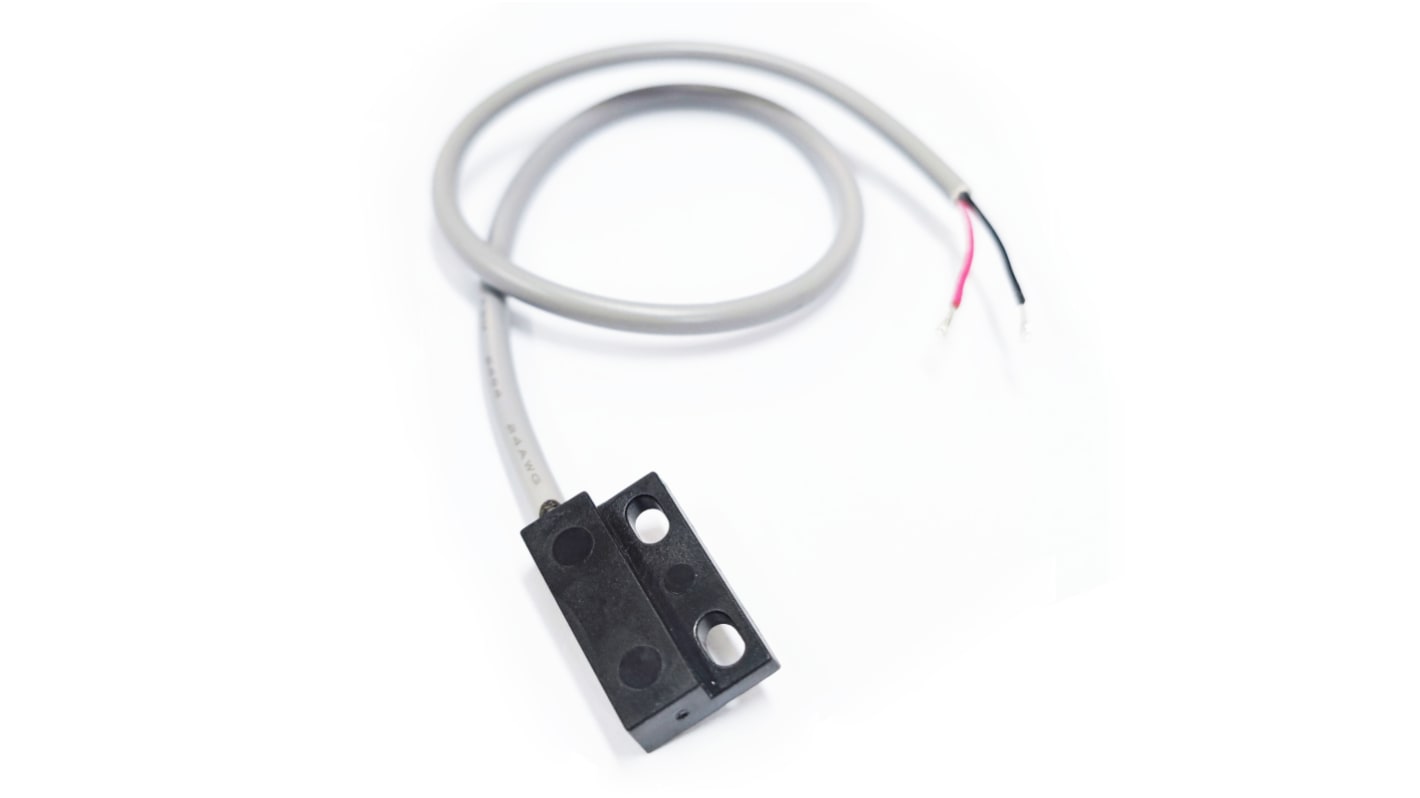

RS PRO Rectangular Reed Switch, NO, 160Vac, IP67

A float magnetic Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications. Set with a NO (Normally Open) contact position the magnetic proximity Reed switch features a rectangular float body encapsulated within an ABS shell with a 300mm UL2464 24AWG cable.
Reliable and versatile the magnetic reed switches impact resistant ABS body protects the switch from ingress and fluids, and the operating temperature of -30 to 80 °C combined with a humidity resistance of 95% RH makes it ideal for challenging environments.
A reliable and consistent Reed float switch ideal for controlling and monitoring fluid levels in a wide range of applications and suitable for use in harsh environments.

Reed switch
Magnetic proximity
ABS float body
Rectangular
NO contact configuration (A)
Detection distance of greater than 5mm
UL2464 2C 24AWG Cable
300mm cable length
Temperature range of -30 to 80°C
Humidity resistance of 95%
Maximum contact rating of 10W
Maximum switching current of 0.5A
Maximum switching voltage of 100Vdc
Minimum breakdown voltage of 200Vdc
Dimensions of 23 x 14 x 6.25mm
