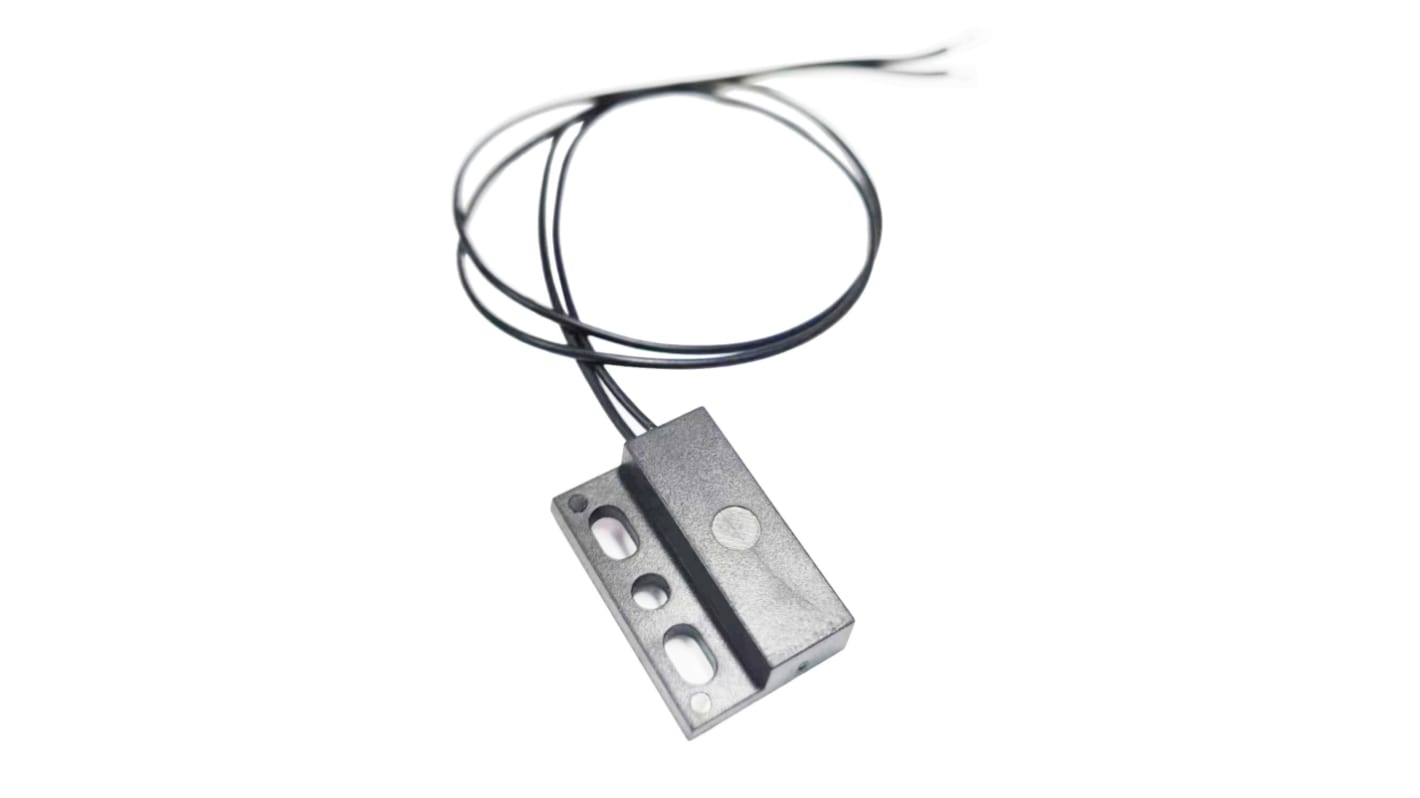

RS PRO Rectangular Reed Switch, NO, 160Vac, IP67

View this category

Subtotal (1 unit)*

£4.32

(exc. VAT)

£5.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 104 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4.32

*price indicative

RS Stock No.:
268-4859
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Switch Shape

Rectangular

Normal State Configuration

NO

Terminal Type

Wire Lead

Maximum AC Voltage

160Vac

Maximum DC Voltage

220Vdc

Contact Resistance

200mΩ

Total Length

29mm

Length

29mm

Width

19mm

Dimensions

29 x 19 x 7mm

Maximum Operating Temperature

+80°C

Depth

7mm

Minimum Operating Temperature

-30°C

RoHS Status: Exempt

COO (Country of Origin):
CN

RS PRO Rectangular Magnetic Float Reed Switch (10W/0.5A)


A float magnetic Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications. Set with a NO (Normally Open) contact position the magnetic proximity Reed switch features a rectangular float body encapsulated within an ABS shell with a 300mm UL2464 24AWG cable.

Reliable and versatile the magnetic reed switches impact resistant ABS body protects the switch from ingress and fluids, and the operating temperature of -30 to 80 °C combined with a humidity resistance of 95% RH makes it ideal for challenging environments.

A reliable and consistent Reed float switch ideal for controlling and monitoring fluid levels in a wide range of applications and suitable for use in harsh environments.

Features and Benefits


Reed switch

Magnetic proximity

ABS float body

Rectangular

NO contact configuration (A)

Detection distance greater than 5mmm

UL2464 24AWG Cable

300mm cable length

Temperature range of -30 to 80°C

Humidity resistance of 95%

Maximum contact rating of 10W

Maximum switching current of 0.5A

Maximum switching voltage of 100Vdc

Minimum breakdown voltage of 250Vdc

Dimensions of 29 x 19 x 7mm
