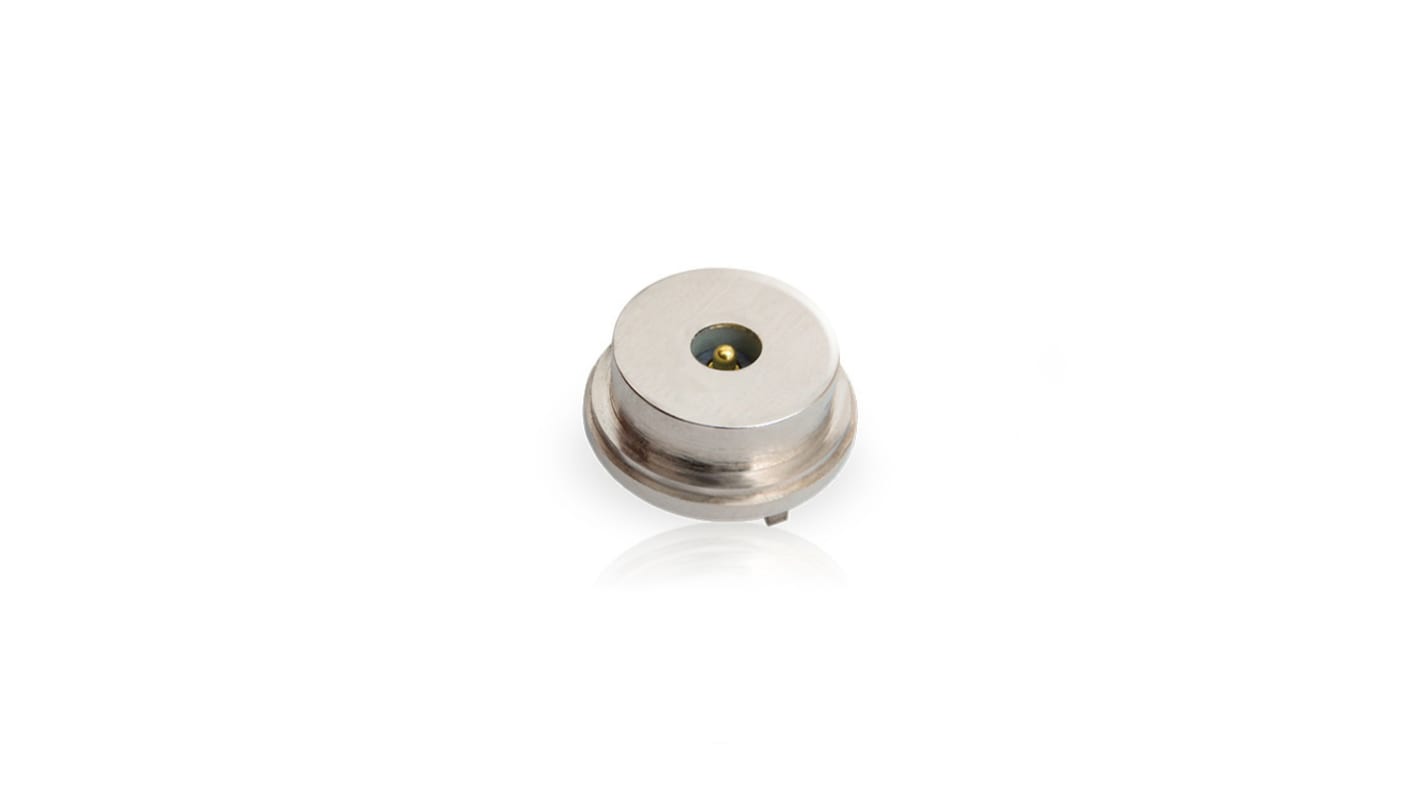

EDAC, 685, Straight PCB 2 way Magnetic Connector, Brass Contact Male, Solder Pin

View all Magnetic Connectors
Bulk discount available

Subtotal (1 unit)*

£6.39

(exc. VAT)

£7.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 68 unit(s) shipping from 18 May 2026
  • Plus 1 unit(s) shipping from 18 May 2026
  • Plus 655 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£6.39
10 - 24£5.81
25 - 49£5.33
50 +£4.92

*price indicative

RS Stock No.:
253-3548
Mfr. Part No.:
685-00221200111
Brand:
EDAC
Find similar products by selecting one or more attributes.
Select all

Brand

EDAC

Product Type

Magnetic Connector

Connector Gender

Male

Termination Type

Solder Pin

Contact Gender

Male

Standards/Approvals

RoHS

Contact Plating

Gold over Nickel

Contact Material

Brass

Orientation

Straight

Series

685

Mount Type

PCB

Number of Ways

2

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

85°C

Connector Type

Magnetic Jack

COO (Country of Origin):
CN
The EDAC magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts. The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Voltage rating is 5v

Current rating is 2A max

Insulation resistance is 100MOHM min

Working temperature range is -30°C to +85°C
