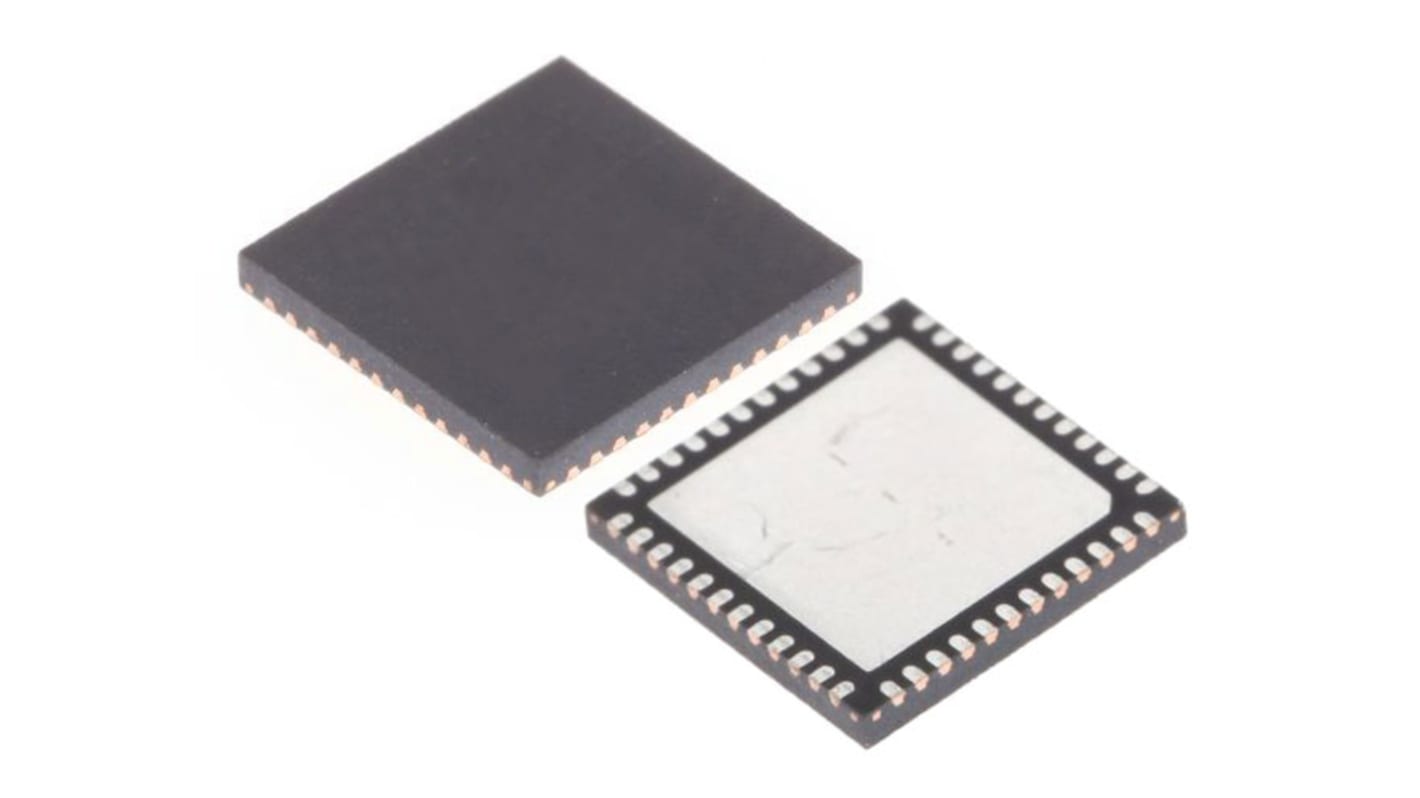

Maxim Integrated MAX9272AGTM/V+, LVDS Deserializer LVCMOS, 48-Pin TQFN
- RS Stock No.:
- 191-5304
- Mfr. Part No.:
- MAX9272AGTM/V+
- Brand:
- Maxim Integrated
Discontinued
- RS Stock No.:
- 191-5304
- Mfr. Part No.:
- MAX9272AGTM/V+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Number of Drivers | 1 | |
| IC Type | Deserializer IC | |
| Output Type | LVCMOS | |
| Transmission Data Rate | 1.5Gbps | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Package Type | TQFN | |
| Pin Count | 48 | |
| Differential Input High Threshold Voltage | 60mV | |
| Differential Input Low Threshold Voltage | -60mV | |
| Dimensions | 7.1 x 7.1 x 0.75mm | |
| Height | 0.75mm | |
| Length | 7.1mm | |
| Maximum Operating Supply Voltage | 1.9 V | |
| Minimum Operating Supply Voltage | 1.7 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +105 °C | |
| Width | 7.1mm | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Number of Drivers 1 | ||
IC Type Deserializer IC | ||
Output Type LVCMOS | ||
Transmission Data Rate 1.5Gbps | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Package Type TQFN | ||
Pin Count 48 | ||
Differential Input High Threshold Voltage 60mV | ||
Differential Input Low Threshold Voltage -60mV | ||
Dimensions 7.1 x 7.1 x 0.75mm | ||
Height 0.75mm | ||
Length 7.1mm | ||
Maximum Operating Supply Voltage 1.9 V | ||
Minimum Operating Supply Voltage 1.7 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +105 °C | ||
Width 7.1mm | ||
Ideal for Camera Applications
Works with Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP
Error Detection/Correction
9.6kbps to 1Mbps Control Channel in I2C-to-I2C Mode with Clock-Stretch Capability
Best-in-Class Supply Current: 90mA (max)
Double-Rate Clock for Megapixel Cameras
Cable Equalization Allows 15m Cable at Full Speed
48-Pin (7mm x 7mm) TQFN-EP Package with 0.5mm Lead Pitch
High-Speed Data Deserialization for Megapixel Cameras
Up to 1.5Gbps Serial-Bit Rate with Single or Double Output: 6.25MHz to 100MHz Clock
Multiple Control-Channel Modes for System Flexibility
9.6kbps to 1Mbps Control Channel in UART-to-UART or UART-to-I2C Modes
Reduces EMI and Shielding Requirements
Input Programmable for 100mV to 500mV
Single-Ended or 50mV to 400mV Differential
Programmable Spread Spectrum on the Parallel Output Reduces EMI
Tracks Spread Spectrum on Serial Input
Peripheral Features for Camera Power-Up and Verification
Built-In PRBS Checker for BER Testing of the Serial Link
Two GPIO Ports
Dedicated “Up/Down” GPI for Camera Frame Sync Trigger and Other Uses
Remote/Local Wake-Up from Sleep Mode
Meets Rigorous Automotive and Industrial Requirements
-40°C to +105°C Operating Temperature
±10kV Contact and ±15kV Air ESD Protection
±10kV Contact and ±30kV Air ESD Protection
Applications
Automotive Camera Systems
Works with Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP
Error Detection/Correction
9.6kbps to 1Mbps Control Channel in I2C-to-I2C Mode with Clock-Stretch Capability
Best-in-Class Supply Current: 90mA (max)
Double-Rate Clock for Megapixel Cameras
Cable Equalization Allows 15m Cable at Full Speed
48-Pin (7mm x 7mm) TQFN-EP Package with 0.5mm Lead Pitch
High-Speed Data Deserialization for Megapixel Cameras
Up to 1.5Gbps Serial-Bit Rate with Single or Double Output: 6.25MHz to 100MHz Clock
Multiple Control-Channel Modes for System Flexibility
9.6kbps to 1Mbps Control Channel in UART-to-UART or UART-to-I2C Modes
Reduces EMI and Shielding Requirements
Input Programmable for 100mV to 500mV
Single-Ended or 50mV to 400mV Differential
Programmable Spread Spectrum on the Parallel Output Reduces EMI
Tracks Spread Spectrum on Serial Input
Peripheral Features for Camera Power-Up and Verification
Built-In PRBS Checker for BER Testing of the Serial Link
Two GPIO Ports
Dedicated “Up/Down” GPI for Camera Frame Sync Trigger and Other Uses
Remote/Local Wake-Up from Sleep Mode
Meets Rigorous Automotive and Industrial Requirements
-40°C to +105°C Operating Temperature
±10kV Contact and ±15kV Air ESD Protection
±10kV Contact and ±30kV Air ESD Protection
Applications
Automotive Camera Systems
