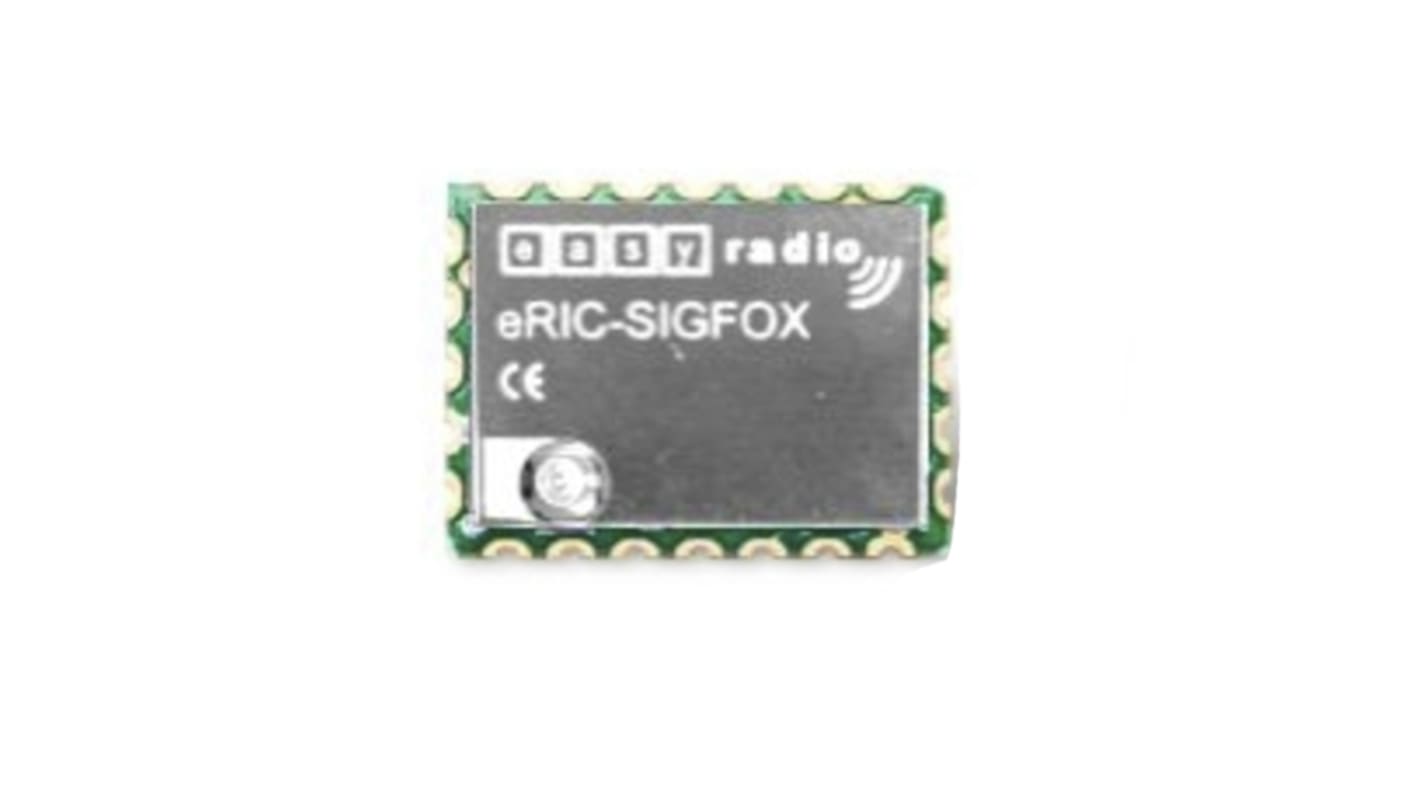

LPRS, Sigfox Module Transceiver 868MHz, -126dBm Receiver Sensitivity
- RS Stock No.:
- 171-3742
- Mfr. Part No.:
- eRIC-SIGFOX
- Brand:
- LPRS
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 171-3742
- Mfr. Part No.:
- eRIC-SIGFOX
- Brand:
- LPRS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LPRS | |
| Maximum Output Power | 0 to +14dBm | |
| Receiver Sensitivity | -126dBm | |
| Protocol Type | Sigfox | |
| Supported Bus Interfaces | SPI | |
| Supply Voltage | 2.5 → 5V | |
| Dimensions | 15.24 x 20.32 x 2mm | |
Select all | ||
|---|---|---|
Brand LPRS | ||
Maximum Output Power 0 to +14dBm | ||
Receiver Sensitivity -126dBm | ||
Protocol Type Sigfox | ||
Supported Bus Interfaces SPI | ||
Supply Voltage 2.5 → 5V | ||
Dimensions 15.24 x 20.32 x 2mm | ||
- COO (Country of Origin):
- GB
Lower-cost, intelligent, easy to program radio sub-system, a high performance System-on-Chip RF transceiver. Variants include Point-to-Point, Point-to-Multi Point and LPWAN Sigfox / LoRa.
Family of interchangeable devices.
Programmable application memory (eRIC4 and eRIC9)
Secure data transmission: AES 128 bit data encryption option.
Selectable operating frequencies for world markets: 804-940 MHz for Europe, North & South America, India and China. 402-470 MHz for Europe, APAC and China.
Fully programmable low power options offering current consumption as low as 32uA.
Compact form factor, 20mm x 15mm x 2.5mm.
BPF (RF band pass filters).
Non-volatile flash storage.
Temperature sensor (eRIC4 and eRIC9).
Low drop voltage regulator.
Programmable application memory (eRIC4 and eRIC9)
Secure data transmission: AES 128 bit data encryption option.
Selectable operating frequencies for world markets: 804-940 MHz for Europe, North & South America, India and China. 402-470 MHz for Europe, APAC and China.
Fully programmable low power options offering current consumption as low as 32uA.
Compact form factor, 20mm x 15mm x 2.5mm.
BPF (RF band pass filters).
Non-volatile flash storage.
Temperature sensor (eRIC4 and eRIC9).
Low drop voltage regulator.
