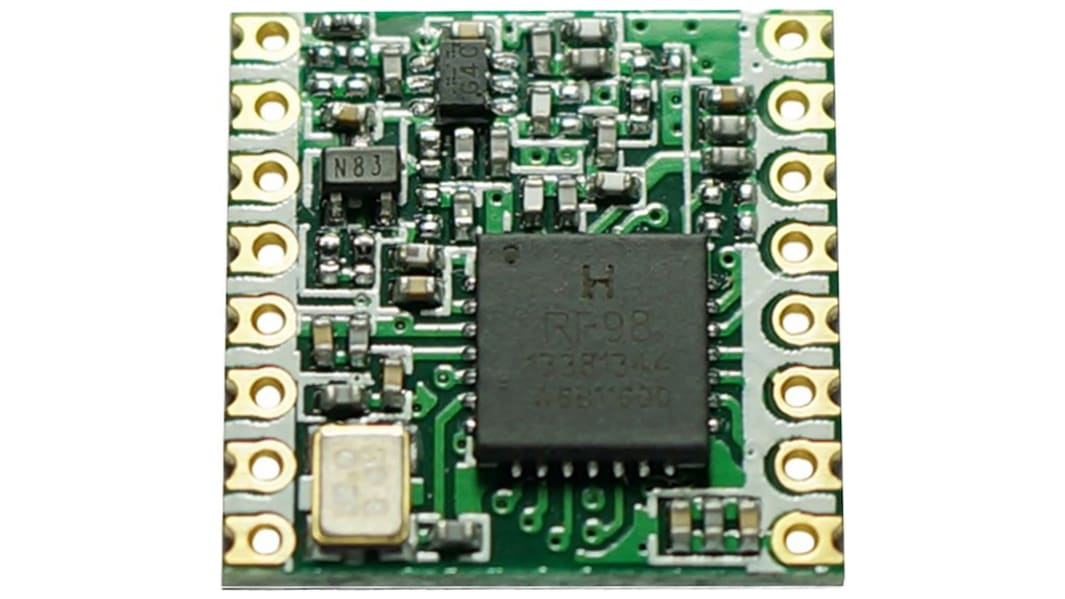

RF Solutions, LoRa Module Transceiver 433MHz, -148dBm Receiver Sensitivity
- RS Stock No.:
- 125-1261
- Mfr. Part No.:
- RFM98W-433S2
- Brand:
- RF Solutions
View all LPWAN
40 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Price Each
£15.40
(exc. VAT)
£18.48
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £15.40 |
| 5 + | £14.63 |
- RS Stock No.:
- 125-1261
- Mfr. Part No.:
- RFM98W-433S2
- Brand:
- RF Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RFM9xW 433/868/915MHz ISM LoRa Transceivers, HopeRF
The RFM9xW Transceiver Modules feature the Semtech SX1272 transceiver chip which uses a variation of Chirp Spread Spectrum coding called LoRa™, to improve receiver sensitivity and hence achieve extended range. The module can also use OOK and FSK modulation schemes to maintain compatibility with other standards such as IEEE 802.15.4 and wMBUS. LoRa features increased interference immunity over conventional FSK providing an enhanced coexistence capability in crowded channels.
Module Features
• RF Frequency Range: 433/868/915MHz ISM Band
• Channel bandwidth: 125kHz, 250kHz or 500kHz
• RF Power Output: up to +20dBm
• Receiver Sensitivity: -119dBm @ 1.2kbps (FSK), -148dBm @ 18bps (LoRa, SF=12, CR=4/6)
• Modulation: LoRa™, FSK, GFSK, MSK, GMSK or OOK
• OTA Data Rate: up to 250kbps (FSK), up to 37.5kbps (LoRa)
• Range: up to 15km (Line of Sight)
• Packet engine up to 256 bytes with CRC
• Forward Error Correction (FEC) with selectable Coding Rate
• 127dB dynamic range RSSI
• Host communication: serial SPI
• Temperature sensor and low-battery indicator
• Power supply: +1.8V to +3.6Vdc
• Operating temperature range: -20 to +70°C
• Dimensions 16 x 16mm
• Applications: Automated Meter Reading, Home & Building Automation, Wireless Alarm & Security Systems, Industrial Monitoring & Control, Long-range communication for the Internet of Things (IoT)
• Channel bandwidth: 125kHz, 250kHz or 500kHz
• RF Power Output: up to +20dBm
• Receiver Sensitivity: -119dBm @ 1.2kbps (FSK), -148dBm @ 18bps (LoRa, SF=12, CR=4/6)
• Modulation: LoRa™, FSK, GFSK, MSK, GMSK or OOK
• OTA Data Rate: up to 250kbps (FSK), up to 37.5kbps (LoRa)
• Range: up to 15km (Line of Sight)
• Packet engine up to 256 bytes with CRC
• Forward Error Correction (FEC) with selectable Coding Rate
• 127dB dynamic range RSSI
• Host communication: serial SPI
• Temperature sensor and low-battery indicator
• Power supply: +1.8V to +3.6Vdc
• Operating temperature range: -20 to +70°C
• Dimensions 16 x 16mm
• Applications: Automated Meter Reading, Home & Building Automation, Wireless Alarm & Security Systems, Industrial Monitoring & Control, Long-range communication for the Internet of Things (IoT)
RS Product Codes
Wireless Modules - HopeRF
Specifications
| Attribute | Value |
| Maximum Output Power | +13dBm |
| Protocol Type | Lora |
| Receiver Sensitivity | -148dBm |
| Supported Bus Interfaces | SPI |
| Supply Voltage | 3.3V |
| Dimensions | 16 x 16 x 1.8mm |
