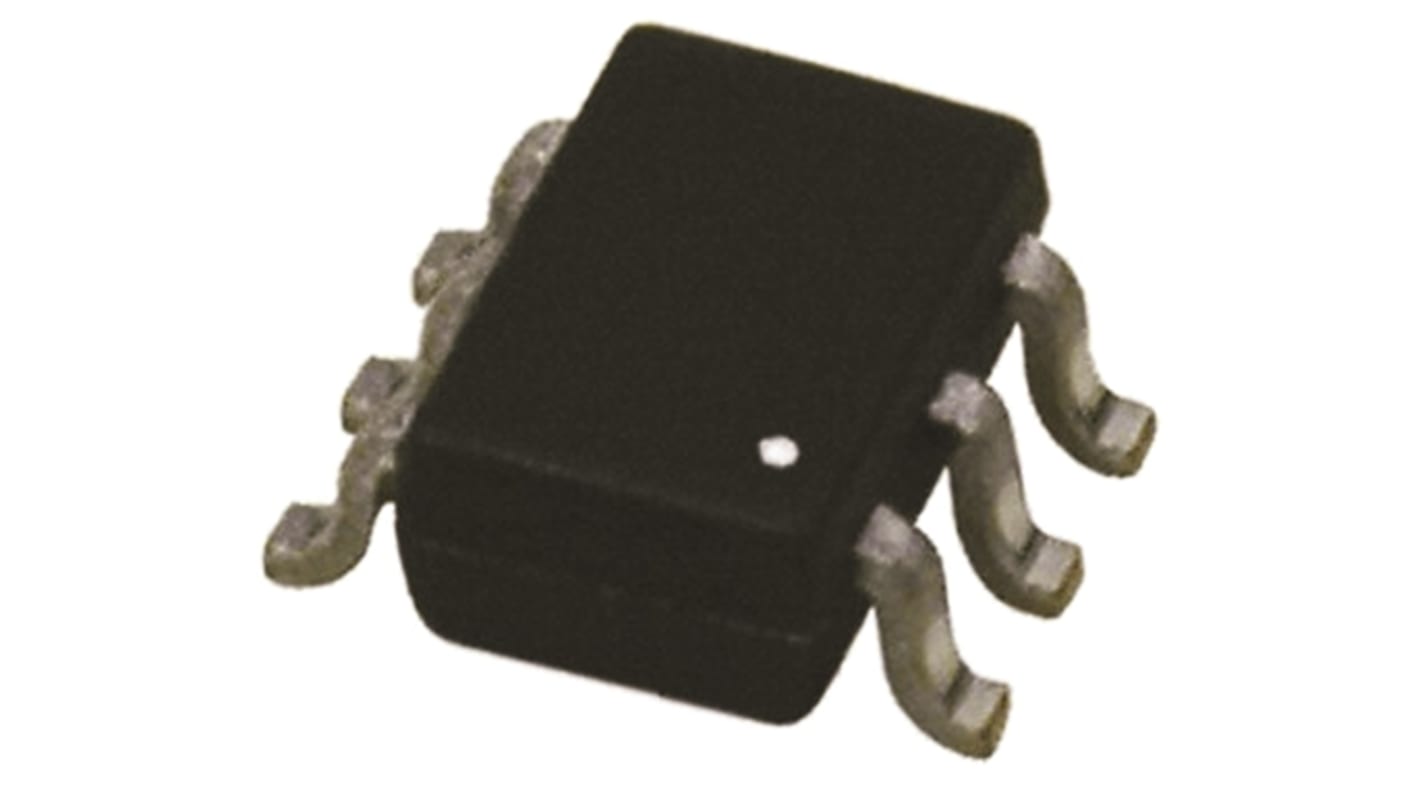

DiodesZetex 74LVC1G97DW-7, 1 2-Input Multifunction Logic Gate, 6-Pin SOT-363
- RS Stock No.:
- 822-8714
- Mfr. Part No.:
- 74LVC1G97DW-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 100 units)*
£7.40
(exc. VAT)
£8.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.074 | £7.40 |
| 500 - 1400 | £0.056 | £5.60 |
| 1500 - 2900 | £0.041 | £4.10 |
| 3000 - 5900 | £0.036 | £3.60 |
| 6000 + | £0.033 | £3.30 |
*price indicative
- RS Stock No.:
- 822-8714
- Mfr. Part No.:
- 74LVC1G97DW-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Logic Gate | |
| Logic Function | Multifunction | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-363 | |
| Pin Count | 6 | |
| Logic Family | LVC | |
| Input Type | CMOS | |
| Maximum High Level Output Current | -32mA | |
| Maximum Propagation Delay Time @ CL | 6.4ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 5.5mm | |
| Maximum Supply Voltage | 5.5V | |
| Width | 1.35 mm | |
| Minimum Supply Voltage | 1.65V | |
| Standards/Approvals | No | |
| Length | 2.2mm | |
| Maximum Low Level Output Current | 32mA | |
| Automotive Standard | No | |
| Output Type | Push Pull | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Logic Gate | ||
Logic Function Multifunction | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SOT-363 | ||
Pin Count 6 | ||
Logic Family LVC | ||
Input Type CMOS | ||
Maximum High Level Output Current -32mA | ||
Maximum Propagation Delay Time @ CL 6.4ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 5.5mm | ||
Maximum Supply Voltage 5.5V | ||
Width 1.35 mm | ||
Minimum Supply Voltage 1.65V | ||
Standards/Approvals No | ||
Length 2.2mm | ||
Maximum Low Level Output Current 32mA | ||
Automotive Standard No | ||
Output Type Push Pull | ||
74LVC1G Family, Diodes Inc
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
