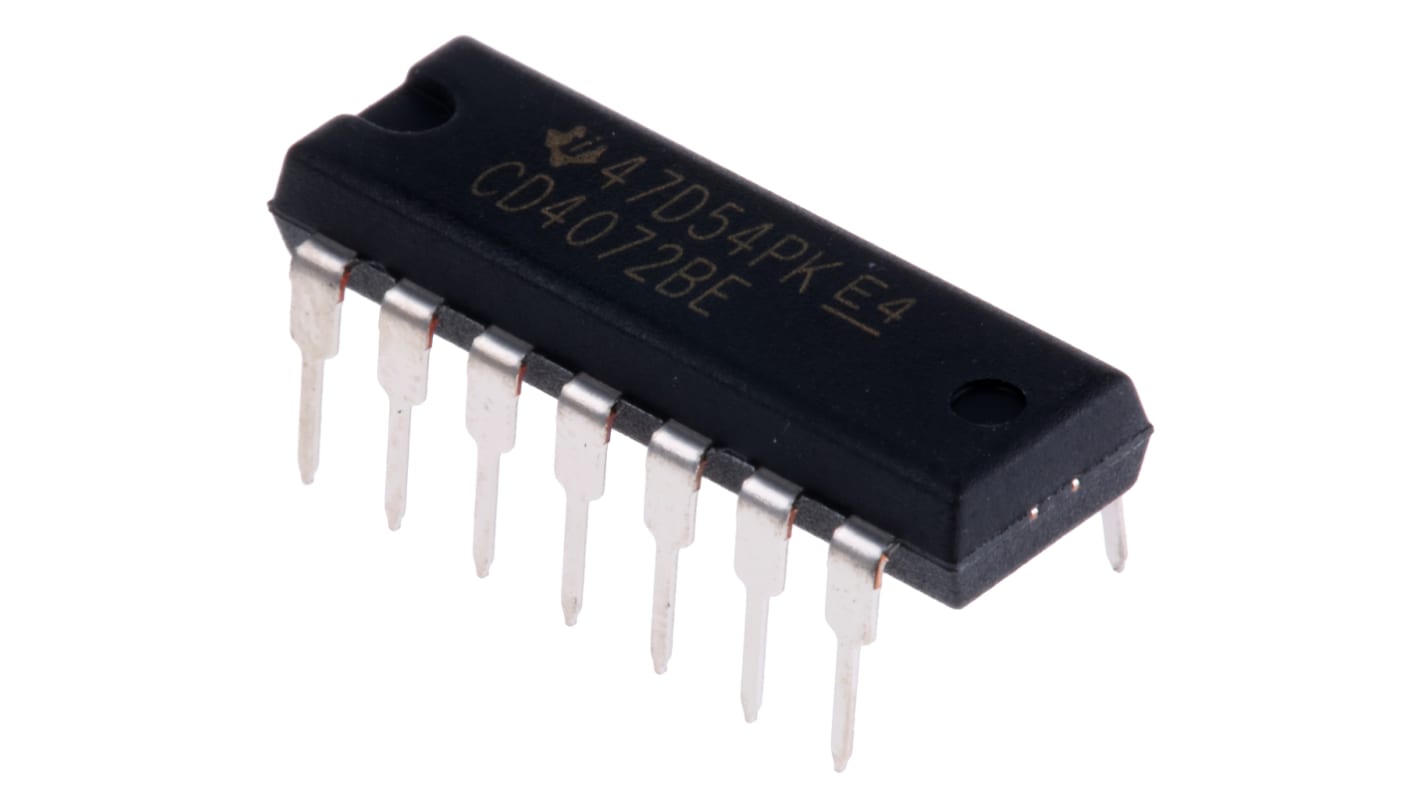

Texas Instruments CD4072BE, Dual 4-Input OR Logic Gate, 14-Pin PDIP
- RS Stock No.:
- 796-7941P
- Mfr. Part No.:
- CD4072BE
- Brand:
- Texas Instruments
Bulk discount available
Subtotal 125 units (supplied in a tube)*
£46.25
(exc. VAT)
£55.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
- Plus 999,999,575 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 125 - 225 | £0.37 |
| 250 - 600 | £0.34 |
| 625 - 1225 | £0.331 |
| 1250 + | £0.323 |
*price indicative
- RS Stock No.:
- 796-7941P
- Mfr. Part No.:
- CD4072BE
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Function | OR | |
| Mounting Type | Through Hole | |
| Number of Elements | 2 | |
| Number of Inputs per Gate | 4 | |
| Schmitt Trigger Input | No | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Logic Family | 4000 | |
| Input Type | CMOS | |
| Maximum Operating Supply Voltage | 18 V | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Propagation Delay Time @ Maximum CL | 250 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 3 V | |
| Maximum Low Level Output Current | 4.2mA | |
| Dimensions | 19.69 x 6.6 x 4.57mm | |
| Minimum Operating Temperature | -55 °C | |
| Width | 6.6mm | |
| Maximum Operating Temperature | +125 °C | |
| Output Type | CMOS | |
| Length | 19.69mm | |
| Height | 4.57mm | |
| Propagation Delay Test Condition | 50pF | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Function OR | ||
Mounting Type Through Hole | ||
Number of Elements 2 | ||
Number of Inputs per Gate 4 | ||
Schmitt Trigger Input No | ||
Package Type PDIP | ||
Pin Count 14 | ||
Logic Family 4000 | ||
Input Type CMOS | ||
Maximum Operating Supply Voltage 18 V | ||
Maximum High Level Output Current -4.2mA | ||
Maximum Propagation Delay Time @ Maximum CL 250 ns @ 50 pF | ||
Minimum Operating Supply Voltage 3 V | ||
Maximum Low Level Output Current 4.2mA | ||
Dimensions 19.69 x 6.6 x 4.57mm | ||
Minimum Operating Temperature -55 °C | ||
Width 6.6mm | ||
Maximum Operating Temperature +125 °C | ||
Output Type CMOS | ||
Length 19.69mm | ||
Height 4.57mm | ||
Propagation Delay Test Condition 50pF | ||
