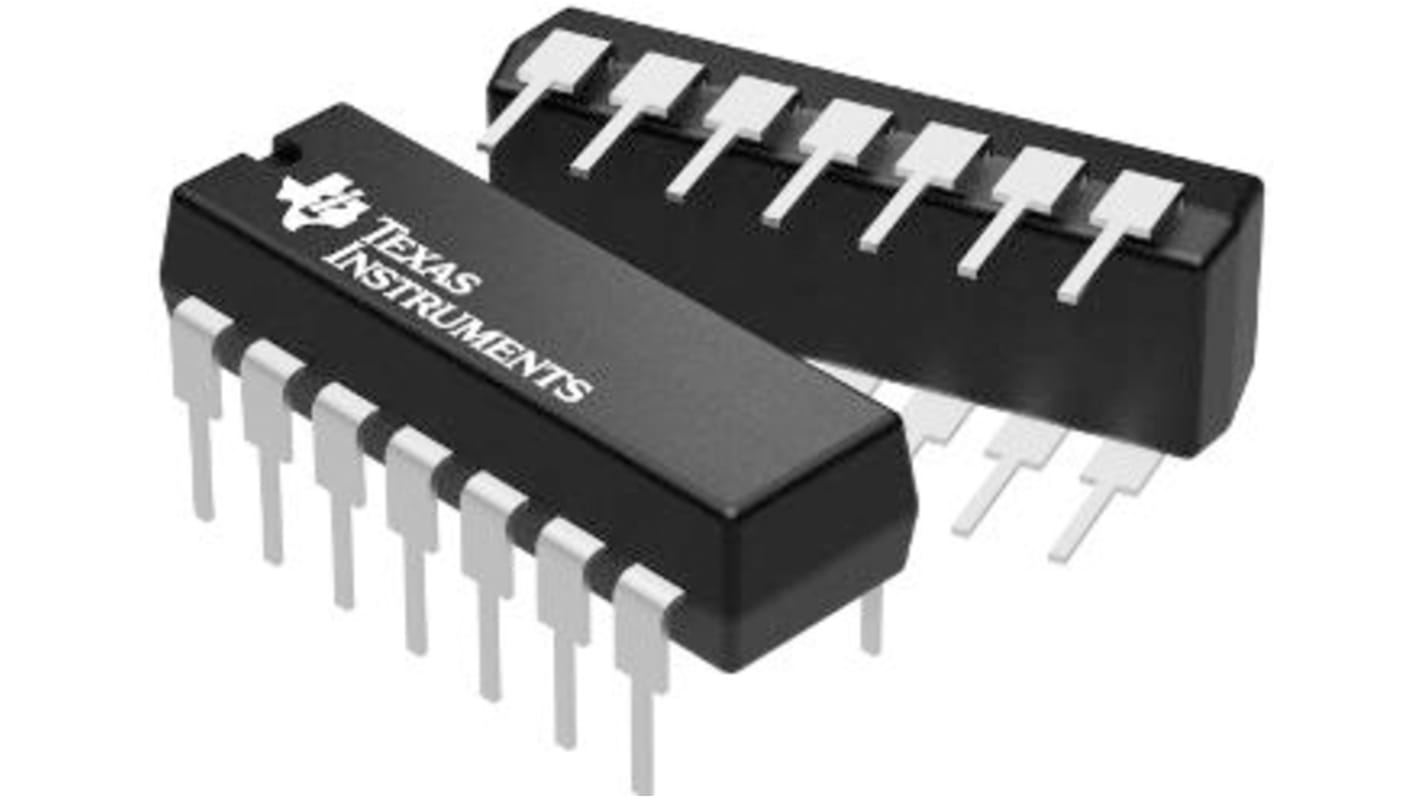

Texas Instruments CD4002BE 4-Input NOR Logic Gate, 14-Pin PDIP
- RS Stock No.:
- 252-0645
- Mfr. Part No.:
- CD4002BE
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£9.125
(exc. VAT)
£10.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 300 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 225 | £0.365 | £9.13 |
| 250 - 350 | £0.302 | £7.55 |
| 375 - 475 | £0.294 | £7.35 |
| 500 - 600 | £0.286 | £7.15 |
| 625 + | £0.279 | £6.98 |
*price indicative
- RS Stock No.:
- 252-0645
- Mfr. Part No.:
- CD4002BE
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Logic Gate | |
| Logic Function | NOR | |
| Mount Type | Surface | |
| Number of Inputs per Gate | 4 | |
| Schmitt Trigger Input | No | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Propagation Delay Time @ CL | 60ns | |
| Maximum Operating Temperature | 125°C | |
| Length | 19.69mm | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 18V | |
| Series | CD4002B | |
| Output Type | CMOS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Logic Gate | ||
Logic Function NOR | ||
Mount Type Surface | ||
Number of Inputs per Gate 4 | ||
Schmitt Trigger Input No | ||
Package Type PDIP | ||
Pin Count 14 | ||
Minimum Operating Temperature -55°C | ||
Maximum Propagation Delay Time @ CL 60ns | ||
Maximum Operating Temperature 125°C | ||
Length 19.69mm | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 18V | ||
Series CD4002B | ||
Output Type CMOS | ||
Automotive Standard No | ||
