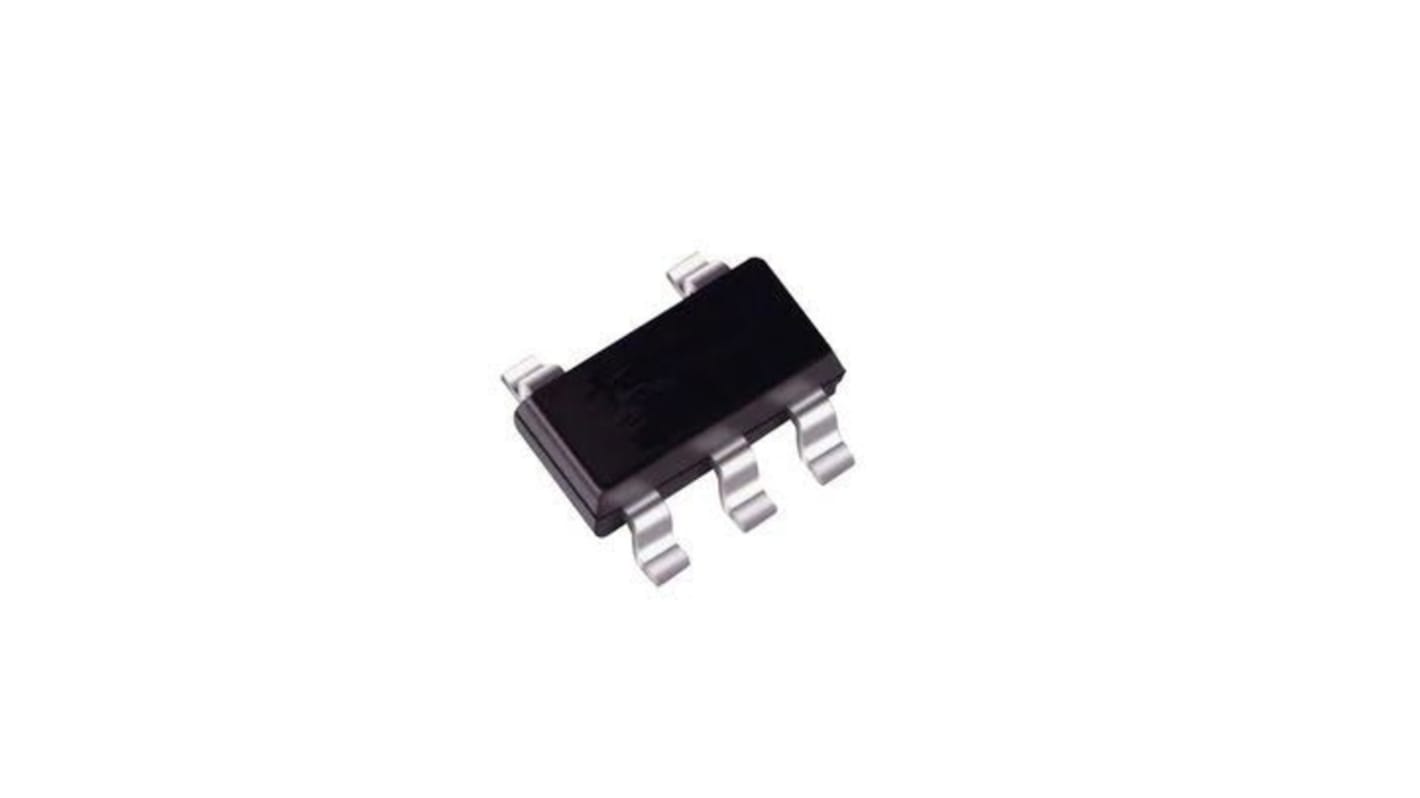

DiodesZetex 74AHCT1G00QSE-7 2-Input NAND Schmitt Trigger Logic Gate, 5-Pin SOT353
- RS Stock No.:
- 222-2719
- Mfr. Part No.:
- 74AHCT1G00QSE-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 3000 units)*
£117.00
(exc. VAT)
£141.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.039 | £117.00 |
*price indicative
- RS Stock No.:
- 222-2719
- Mfr. Part No.:
- 74AHCT1G00QSE-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Logic Function | NAND | |
| Mounting Type | Surface Mount | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | Yes | |
| Package Type | SOT353 | |
| Pin Count | 5 | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Logic Function NAND | ||
Mounting Type Surface Mount | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input Yes | ||
Package Type SOT353 | ||
Pin Count 5 | ||
The DiodesZetex single 2-input positive NAND gate is an automotive compliant single, two-input positive NAND gate with a standard push-pull output. The device is designed for operation with a power supply range of 4.5V to 5.5V.
Grade 1 ambient temperature operation, ranges from -40°c to +125°c
Inputs not limited by vcc
Balanced propagation delays
Balanced drive capability
Inputs not limited by vcc
Balanced propagation delays
Balanced drive capability
