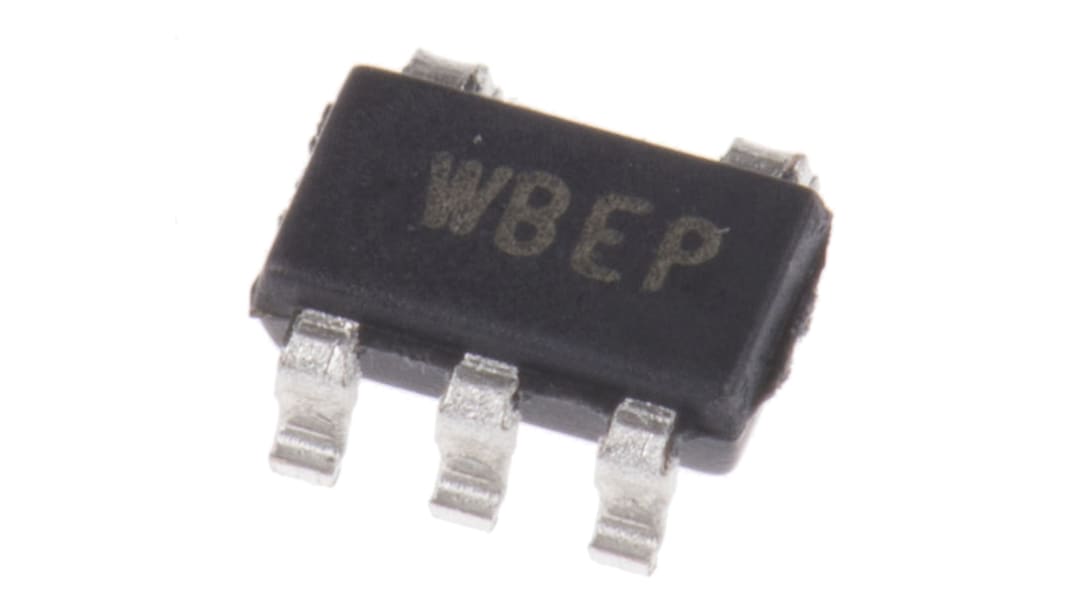

Texas Instruments SN74LVC1G08DBVR, 1 2-Input AND Logic Gate, 5-Pin SOT-23
- RS Stock No.:
- 218-4610
- Mfr. Part No.:
- SN74LVC1G08DBVR
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 50 units)*
£2.95
(exc. VAT)
£3.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.059 | £2.95 |
| 250 - 450 | £0.056 | £2.80 |
| 500 - 1200 | £0.051 | £2.55 |
| 1250 + | £0.044 | £2.20 |
*price indicative
- RS Stock No.:
- 218-4610
- Mfr. Part No.:
- SN74LVC1G08DBVR
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Logic Gate | |
| Logic Function | AND | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-23 | |
| Pin Count | 5 | |
| Logic Family | LVC | |
| Input Type | CMOS | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -32mA | |
| Maximum Propagation Delay Time @ CL | 5ns | |
| Maximum Operating Temperature | 125°C | |
| Minimum Supply Voltage | 1.65V | |
| Length | 3.05mm | |
| Series | SN74 | |
| Height | 1.45mm | |
| Standards/Approvals | No | |
| Maximum Supply Voltage | 5.5V | |
| Width | 1.75 mm | |
| Maximum Low Level Output Current | 32mA | |
| Automotive Standard | No | |
| Output Type | CMOS | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Logic Gate | ||
Logic Function AND | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
Logic Family LVC | ||
Input Type CMOS | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -32mA | ||
Maximum Propagation Delay Time @ CL 5ns | ||
Maximum Operating Temperature 125°C | ||
Minimum Supply Voltage 1.65V | ||
Length 3.05mm | ||
Series SN74 | ||
Height 1.45mm | ||
Standards/Approvals No | ||
Maximum Supply Voltage 5.5V | ||
Width 1.75 mm | ||
Maximum Low Level Output Current 32mA | ||
Automotive Standard No | ||
Output Type CMOS | ||
