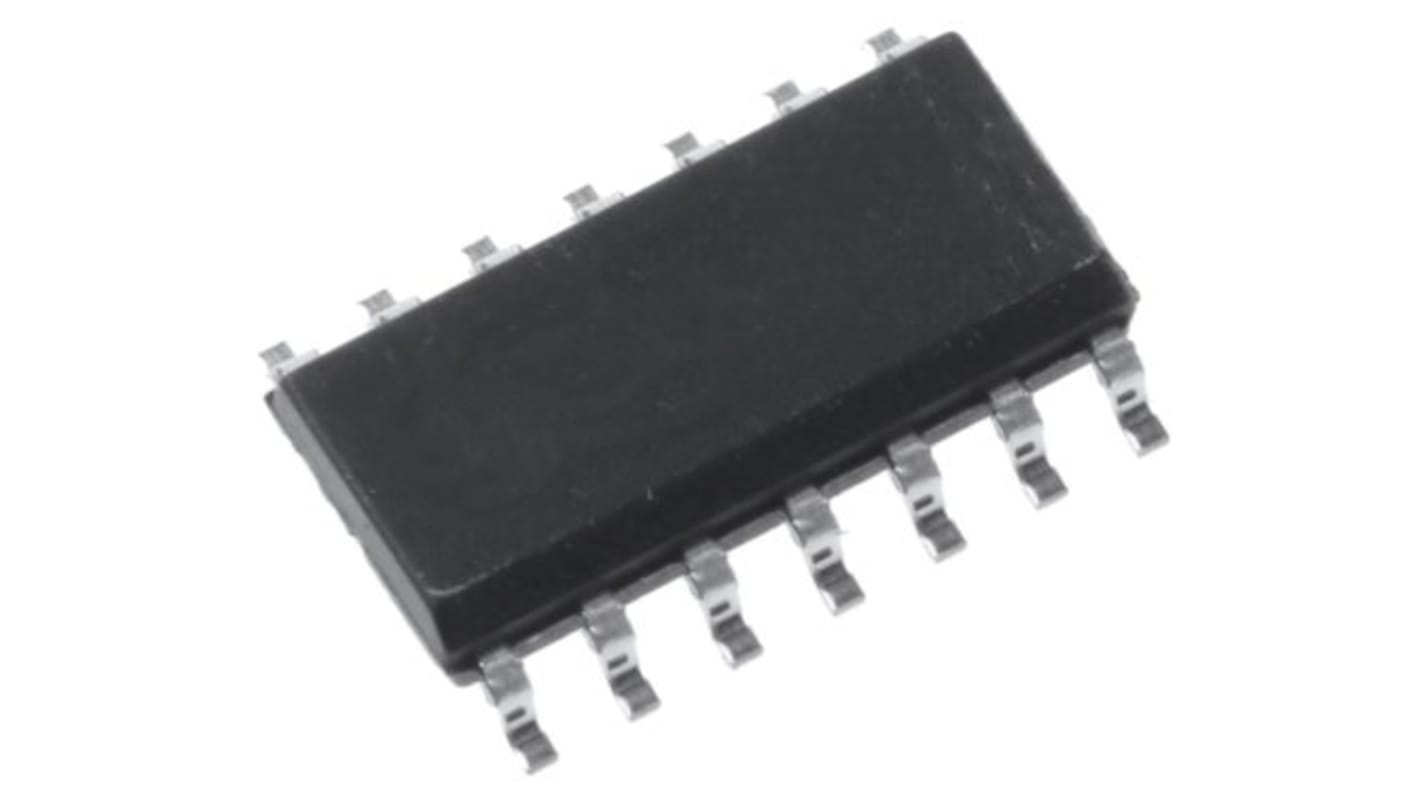

onsemi 74ACT08SC, Quad 2-Input AND Logic Gate, 14-Pin SOIC
- RS Stock No.:
- 186-7231
- Mfr. Part No.:
- 74ACT08SC
- Brand:
- onsemi
385 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 55)
£0.52
(exc. VAT)
£0.62
(inc. VAT)
| Units | Per unit | Per Tube* |
| 55 - 55 | £0.52 | £28.60 |
| 110 - 495 | £0.394 | £21.67 |
| 550 - 990 | £0.335 | £18.425 |
| 1045 - 2475 | £0.268 | £14.74 |
| 2530 + | £0.266 | £14.63 |
| *price indicative | ||
- RS Stock No.:
- 186-7231
- Mfr. Part No.:
- 74ACT08SC
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
The AC/ACT08 contains four, 2-input AND gates.
ICC reduced by 50% on 74AC only
Outputs source/sink 24 mA
Applications
This product is general usage and suitable for many different applications.
Outputs source/sink 24 mA
Applications
This product is general usage and suitable for many different applications.
Specifications
Attribute | Value |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | ACT |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 24mA |
| Maximum Operating Temperature | +85 °C |
| Width | 4mm |
| Length | 8.75mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 8.75 x 4 x 1.5mm |
| Height | 1.5mm |
| Propagation Delay Test Condition | 50pF |
