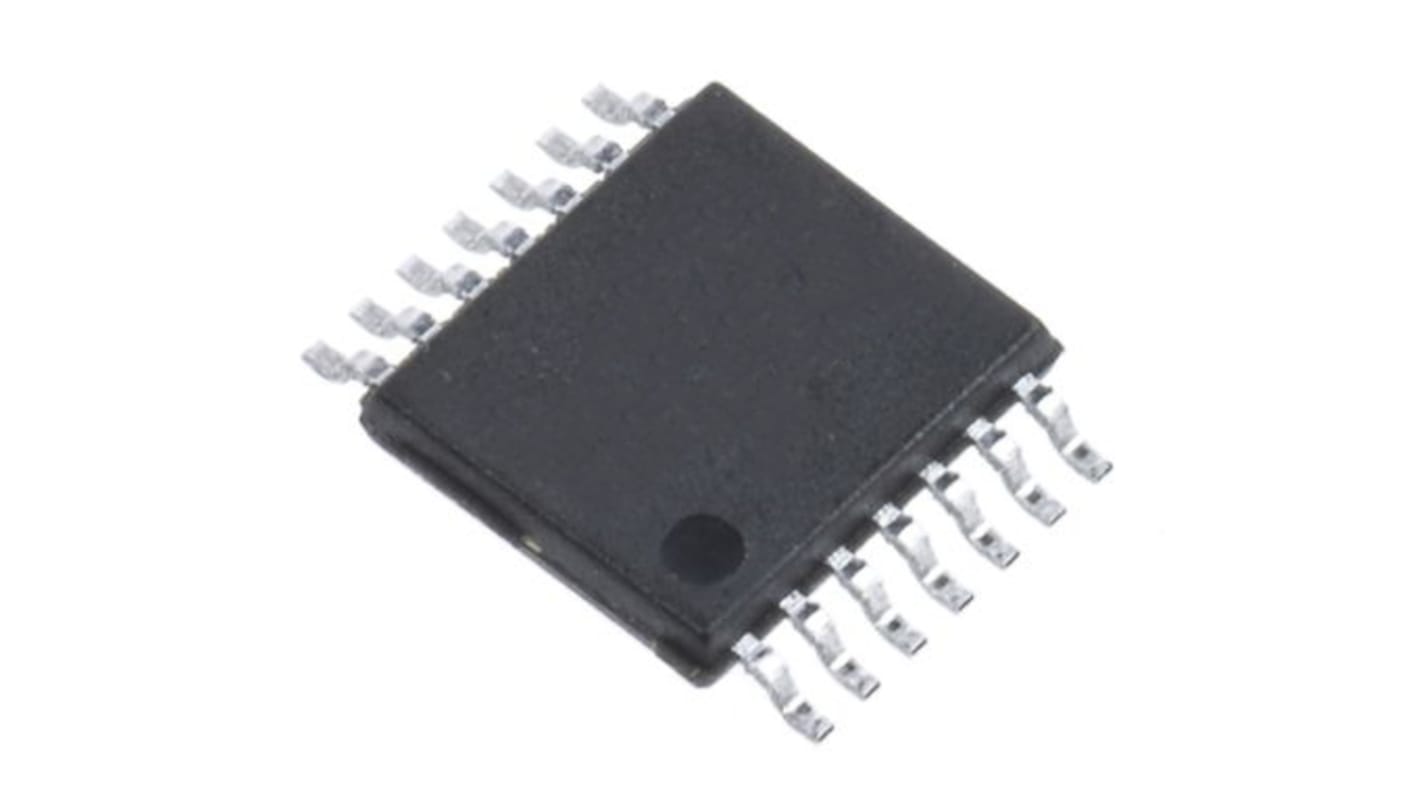

onsemi 74ACT08MTC, Quad 2-Input AND Logic Gate, 14-Pin TSSOP
- RS Stock No.:
- 186-7230
- Mfr. Part No.:
- 74ACT08MTC
- Brand:
- onsemi
Bulk discount available
Subtotal (1 tube of 96 units)*
£23.04
(exc. VAT)
£27.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,936 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 96 - 96 | £0.24 | £23.04 |
| 192 - 480 | £0.192 | £18.43 |
| 576 - 960 | £0.164 | £15.74 |
| 1056 - 2496 | £0.159 | £15.26 |
| 2592 + | £0.156 | £14.98 |
*price indicative
- RS Stock No.:
- 186-7230
- Mfr. Part No.:
- 74ACT08MTC
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Function | AND | |
| Mounting Type | Surface Mount | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Logic Family | ACT | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum High Level Output Current | -24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Maximum Low Level Output Current | 24mA | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Length | 5.1mm | |
| Propagation Delay Test Condition | 50pF | |
| Width | 4.5mm | |
| Height | 1.05mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Function AND | ||
Mounting Type Surface Mount | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Logic Family ACT | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -24mA | ||
Maximum Propagation Delay Time @ Maximum CL 10 ns @ 50 pF | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Low Level Output Current 24mA | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Length 5.1mm | ||
Propagation Delay Test Condition 50pF | ||
Width 4.5mm | ||
Height 1.05mm | ||
The AC/ACT08 contains four, 2-input AND gates.
ICC reduced by 50% on 74AC only
Outputs source/sink 24 mA
Applications
This product is general usage and suitable for many different applications.
Outputs source/sink 24 mA
