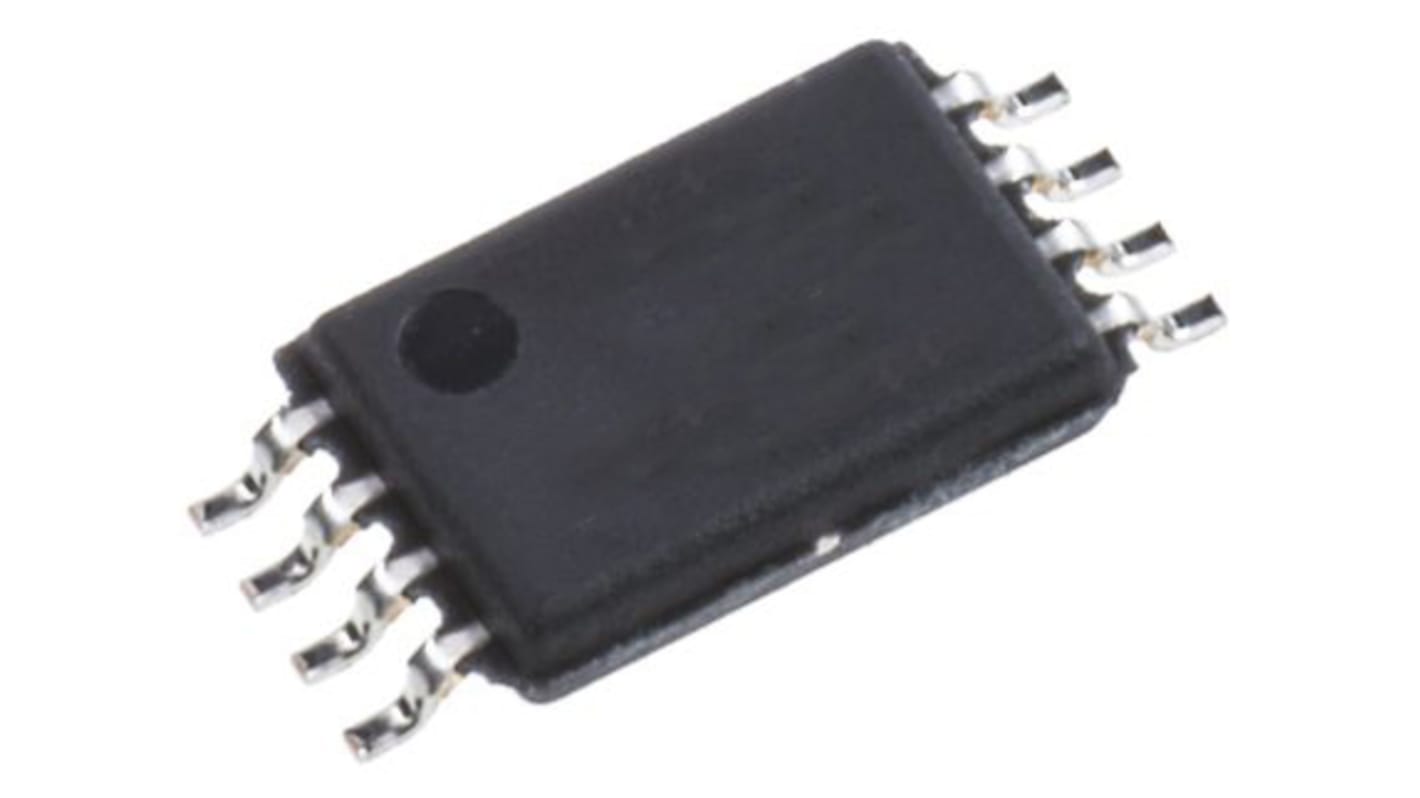

Toshiba TC7WH02FU, Dual 2-Input NOR Logic Gate, 8-Pin SOT-505
- RS Stock No.:
- 171-3042
- Mfr. Part No.:
- TC7WH02FU
- Brand:
- Toshiba
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 171-3042
- Mfr. Part No.:
- TC7WH02FU
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Toshiba | |
Logic Function | NOR | |
Mounting Type | Surface Mount | |
Number of Elements | 2 | |
Number of Inputs per Gate | 2 | |
Package Type | SOT-505 | |
Pin Count | 8 | |
Input Type | CMOS | |
Maximum Operating Supply Voltage | 5.5 V | |
Maximum High Level Output Current | -8mA | |
Maximum Propagation Delay Time @ Maximum CL | 13 ns @ 50 pF | |
Minimum Operating Supply Voltage | 2 V | |
Maximum Low Level Output Current | 8mA | |
Maximum Operating Temperature | +85 °C | |
Output Type | CMOS | |
Height | 1.05mm | |
Minimum Operating Temperature | -40 °C | |
Dimensions | 2.9 x 2.8 x 1.05mm | |
Width | 2.8mm | |
Length | 2.9mm | |
Propagation Delay Test Condition | 50pF | |
Select all | ||
---|---|---|
Brand Toshiba | ||
Logic Function NOR | ||
Mounting Type Surface Mount | ||
Number of Elements 2 | ||
Number of Inputs per Gate 2 | ||
Package Type SOT-505 | ||
Pin Count 8 | ||
Input Type CMOS | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -8mA | ||
Maximum Propagation Delay Time @ Maximum CL 13 ns @ 50 pF | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Low Level Output Current 8mA | ||
Maximum Operating Temperature +85 °C | ||
Output Type CMOS | ||
Height 1.05mm | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 2.9 x 2.8 x 1.05mm | ||
Width 2.8mm | ||
Length 2.9mm | ||
Propagation Delay Test Condition 50pF | ||
Wide operating temperature range: Topr = -40 to 85
High speed operation: tpd = 3.6 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 )
High noise immunity: VNIH = VNIL = 28 % VCC (min)
5.5 V tolerant inputs
Balanced Propagation delay: tPLH ≈ tPHL
Wide operating voltage range: VCC = 2.0 to 5.5 V
Identical pin assignment and function with TC7W02
High speed operation: tpd = 3.6 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 )
High noise immunity: VNIH = VNIL = 28 % VCC (min)
5.5 V tolerant inputs
Balanced Propagation delay: tPLH ≈ tPHL
Wide operating voltage range: VCC = 2.0 to 5.5 V
Identical pin assignment and function with TC7W02
