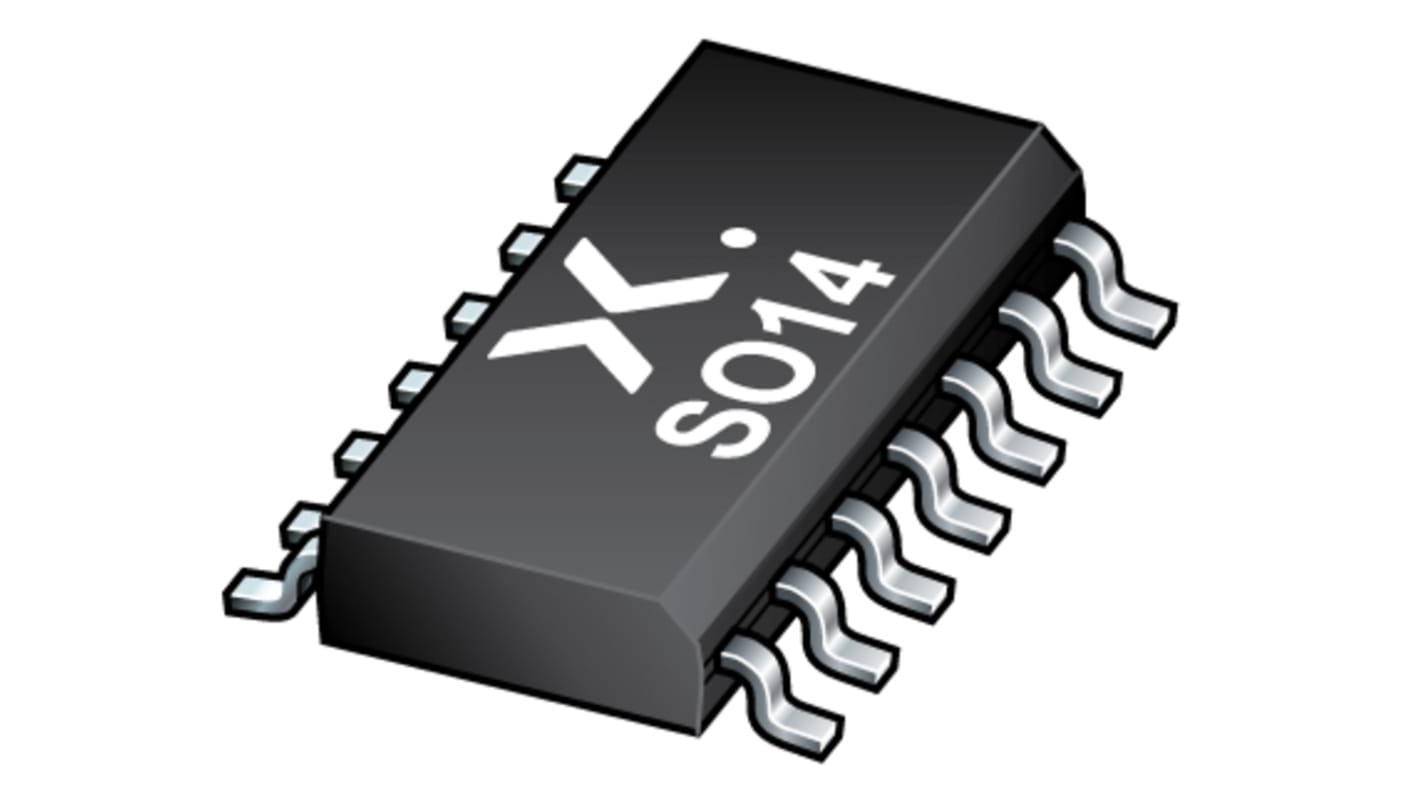

Nexperia 74HCT00D,653, Quad 2-Input NAND Logic Gate, 14-Pin SOIC
- RS Stock No.:
- 170-8009
- Mfr. Part No.:
- 74HCT00D,653
- Brand:
- Nexperia
Available to back order for despatch 25/06/2024
Added
Price Each (On a Reel of 2500)
£0.116
(exc. VAT)
£0.139
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.116 | £290.00 |
| *price indicative | ||
- RS Stock No.:
- 170-8009
- Mfr. Part No.:
- 74HCT00D,653
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
74HCT Family Logic Gates, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
An easy route to logic circuit design. The NAND function is another essential function in our extensive range of logic gates. Outstanding solutions for control / glue logic, PCB miniaturization and routing simplification.
Key features and benefits
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Key applications
Cell phone
Computing
STB
LCD TV
Industrial controllers
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Key applications
Cell phone
Computing
STB
LCD TV
Industrial controllers
The 74HC00, 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Input levels:
For 74HC00: CMOS level
For 74HCT00: TTL level
Multiple package options
Specified from –40 °C to +85 °C and from –40 °C to +125 °C
For 74HC00: CMOS level
For 74HCT00: TTL level
Multiple package options
Specified from –40 °C to +85 °C and from –40 °C to +125 °C
74HCT Family
Specifications
Attribute | Value |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Package Type | SO |
| Pin Count | 14 |
| Logic Family | 74HCT |
| Input Type | TTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ Maximum CL | 29 ns @ 50 pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 5.2mA |
| Maximum Operating Temperature | +125 °C |
| Length | 8.75mm |
| Output Type | Single Ended |
| Propagation Delay Test Condition | 50pF |
| Dimensions | 8.75 x 4 x 1.45mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.45mm |
| Width | 4mm |
