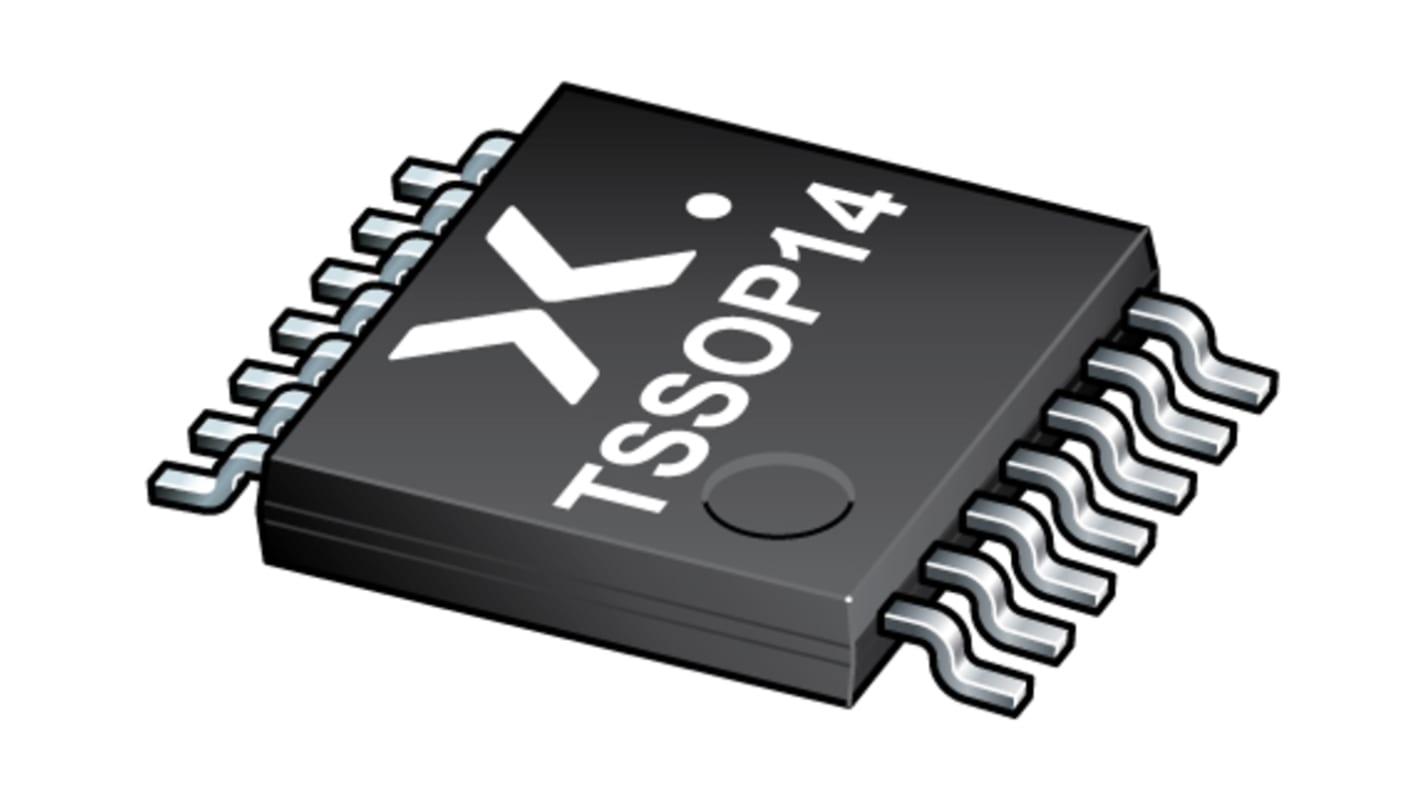

Nexperia 74LVC32APW,118, Quad 2-Input OR Logic Gate, 14-Pin TSSOP
- RS Stock No.:
- 170-4840
- Mfr. Part No.:
- 74LVC32APW,118
- Brand:
- Nexperia
Subtotal (1 reel of 2500 units)*
£292.50
(exc. VAT)
£350.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.117 | £292.50 |
*price indicative
- RS Stock No.:
- 170-4840
- Mfr. Part No.:
- 74LVC32APW,118
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | OR | |
| Mounting Type | Surface Mount | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Logic Family | 74LVC | |
| Input Type | TTL | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum High Level Output Current | -24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10.4 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 1.2 V | |
| Maximum Low Level Output Current | 24mA | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +125 °C | |
| Dimensions | 5.1 x 4.5 x 0.95mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 4.5mm | |
| Height | 0.95mm | |
| Length | 5.1mm | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Function OR | ||
Mounting Type Surface Mount | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Logic Family 74LVC | ||
Input Type TTL | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum High Level Output Current -24mA | ||
Maximum Propagation Delay Time @ Maximum CL 10.4 ns @ 50 pF | ||
Minimum Operating Supply Voltage 1.2 V | ||
Maximum Low Level Output Current 24mA | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Temperature +125 °C | ||
Dimensions 5.1 x 4.5 x 0.95mm | ||
Minimum Operating Temperature -40 °C | ||
Width 4.5mm | ||
Height 0.95mm | ||
Length 5.1mm | ||
- COO (Country of Origin):
- CN
Part of a comprehensive portfolio of logic families and functions, our OR gates are ideal for control / glue logic, PCB miniaturization and routing simplification.
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Cell phone
Computing
STB
LCD TV
Industrial controllers
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Cell phone
Computing
STB
LCD TV
Industrial controllers
The 74LVC32A provides four 2-input OR gates. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications.
5 V tolerant inputs for interfacing with 5 V logic
Wide supply voltage range from 1.2 to 3.6 V
CMOS low power consumption
Direct interface with TTL levels
Specified from -40 °C to +85 °C and -40 °C to +125 °C
Wide supply voltage range from 1.2 to 3.6 V
CMOS low power consumption
Direct interface with TTL levels
Specified from -40 °C to +85 °C and -40 °C to +125 °C
