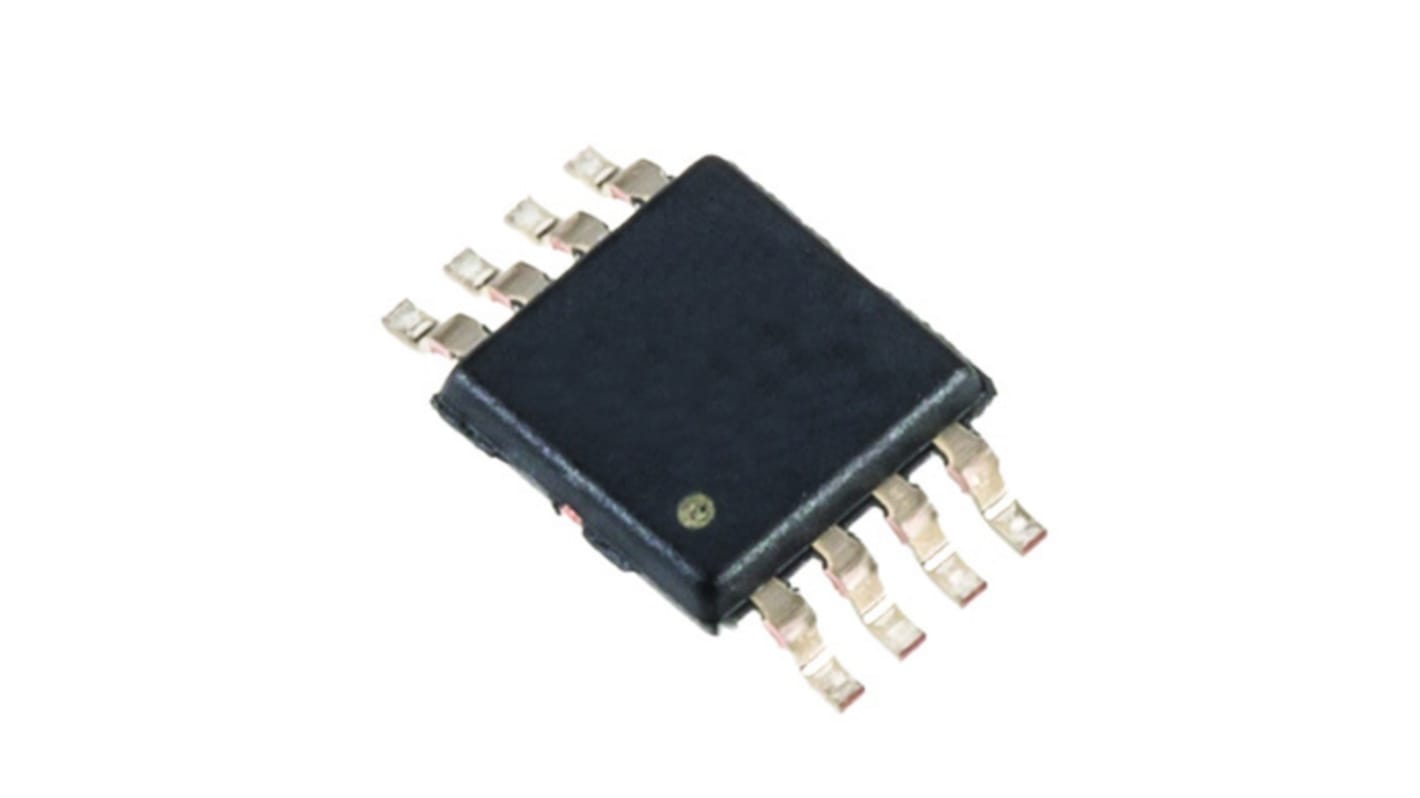

Texas Instruments SN74LVC2G132DCUT, Dual 2-Input NAND Schmitt Trigger Logic Gate, 8-Pin VSSOP
- RS Stock No.:
- 162-7493
- Mfr. Part No.:
- SN74LVC2G132DCUT
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 162-7493
- Mfr. Part No.:
- SN74LVC2G132DCUT
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Logic Function | NAND | |
Mounting Type | Surface Mount | |
Number of Elements | 2 | |
Number of Inputs per Gate | 2 | |
Schmitt Trigger Input | Yes | |
Package Type | VSSOP | |
Pin Count | 8 | |
Logic Family | LVC | |
Input Type | Schmitt Trigger | |
Maximum Operating Supply Voltage | 5.5 V | |
Maximum High Level Output Current | -32mA | |
Maximum Propagation Delay Time @ Maximum CL | 5 ns @ 5 V, 6 ns @ 3.3 V | |
Minimum Operating Supply Voltage | 1.65 V | |
Maximum Low Level Output Current | 32mA | |
Width | 2mm | |
Height | 0.85mm | |
Dimensions | 2.3 x 2 x 0.85mm | |
Maximum Operating Temperature | +85 °C | |
Propagation Delay Test Condition | 50pF | |
Length | 2.3mm | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Logic Function NAND | ||
Mounting Type Surface Mount | ||
Number of Elements 2 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input Yes | ||
Package Type VSSOP | ||
Pin Count 8 | ||
Logic Family LVC | ||
Input Type Schmitt Trigger | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -32mA | ||
Maximum Propagation Delay Time @ Maximum CL 5 ns @ 5 V, 6 ns @ 3.3 V | ||
Minimum Operating Supply Voltage 1.65 V | ||
Maximum Low Level Output Current 32mA | ||
Width 2mm | ||
Height 0.85mm | ||
Dimensions 2.3 x 2 x 0.85mm | ||
Maximum Operating Temperature +85 °C | ||
Propagation Delay Test Condition 50pF | ||
Length 2.3mm | ||
Minimum Operating Temperature -40 °C | ||
