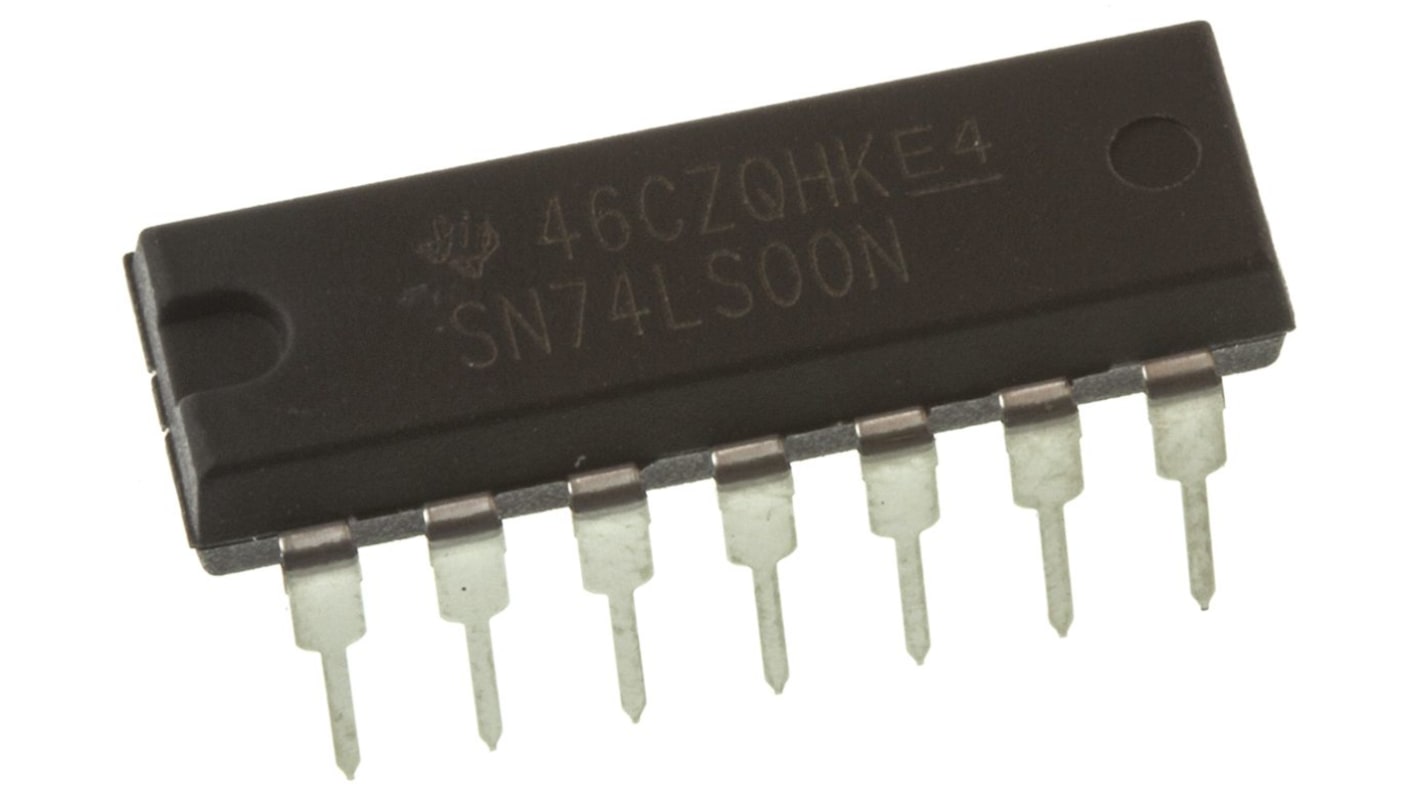

Texas Instruments SN74LS00N, 4 2-Input NAND Logic Gate, 14-Pin PDIP
- RS Stock No.:
- 307-480
- Mfr. Part No.:
- SN74LS00N
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 unit)*
£0.62
(exc. VAT)
£0.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 427 unit(s) ready to ship
- Plus 81 unit(s) ready to ship from another location
- Plus 353 unit(s) shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £0.62 |
| 50 - 99 | £0.59 |
| 100 - 249 | £0.53 |
| 250 - 499 | £0.48 |
| 500 + | £0.44 |
*price indicative
- RS Stock No.:
- 307-480
- Mfr. Part No.:
- SN74LS00N
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Logic Gate | |
| Logic Function | NAND | |
| Mount Type | Through Hole | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Logic Family | LS | |
| Input Type | CMOS | |
| Maximum Propagation Delay Time @ CL | 5ns | |
| Maximum High Level Output Current | -0.4mA | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 4.57mm | |
| Standards/Approvals | No | |
| Maximum Supply Voltage | 5.25V | |
| Width | 6.35 mm | |
| Minimum Supply Voltage | 4.75V | |
| Length | 19.3mm | |
| Maximum Low Level Output Current | 8mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Logic Gate | ||
Logic Function NAND | ||
Mount Type Through Hole | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type PDIP | ||
Pin Count 14 | ||
Logic Family LS | ||
Input Type CMOS | ||
Maximum Propagation Delay Time @ CL 5ns | ||
Maximum High Level Output Current -0.4mA | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Height 4.57mm | ||
Standards/Approvals No | ||
Maximum Supply Voltage 5.25V | ||
Width 6.35 mm | ||
Minimum Supply Voltage 4.75V | ||
Length 19.3mm | ||
Maximum Low Level Output Current 8mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MX
74LS Family Logic Gates, Texas Instruments
Texas Instruments standard Logic Gates from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
