Lenze Locking Bush R6-111 171, 11mm Shaft Diameter

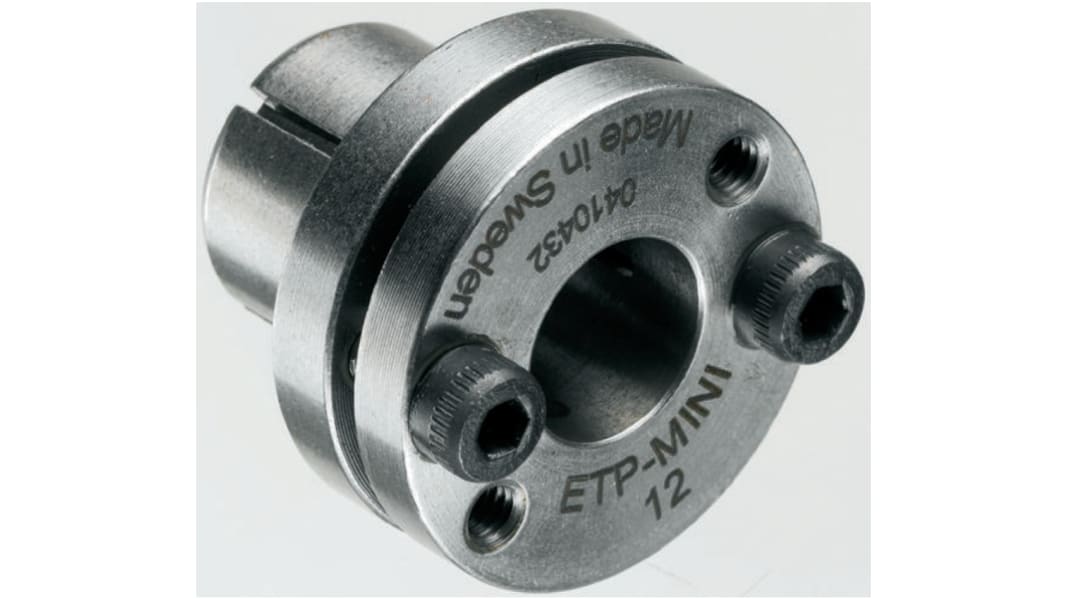

Image representative of range

View all Locking Bushes
Bulk discount available

Subtotal (1 unit)*

£61.14

(exc. VAT)

£73.37

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£61.14
5 - 9£58.70
10 +£57.47

*price indicative

RS Stock No.:
488-8034
Mfr. Part No.:
R6-111 171
Brand:
Lenze
Find similar products by selecting one or more attributes.
Select all

Brand

Lenze

Shaft Diameter

11mm

Outside Diameter

18mm

Locking Bush Type

Locking Bush

Flange Diameter

30mm

Length

29.5mm

Rated Torque

25Nm

Material

Steel

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+85°C

Series

ETP-MINI

RoHS Status: Exempt

COO (Country of Origin):
SE

ETP Mini Locking Bushes


Unique mechanical shaft to hub locking bush offering infinite radial and axial adjustment. Self-centering with small built-in dimensions. Fast mounting with few tightening screws. Designed for mounting of gears, pulleys, cams, sprockets etc, where more frequent removal is required

Self-centering with good concentricity
Fast, easy locking and unlocking with few pressure screws
Unique design gives more even hub pressure profile
Ideal for applications with small diameter hubs
H8 hub bore and K6 to H10 shaft tolerances
Temperature range: -40 to +300°C. Refer to technical if ambient temperature is below 0 or above 200°C
