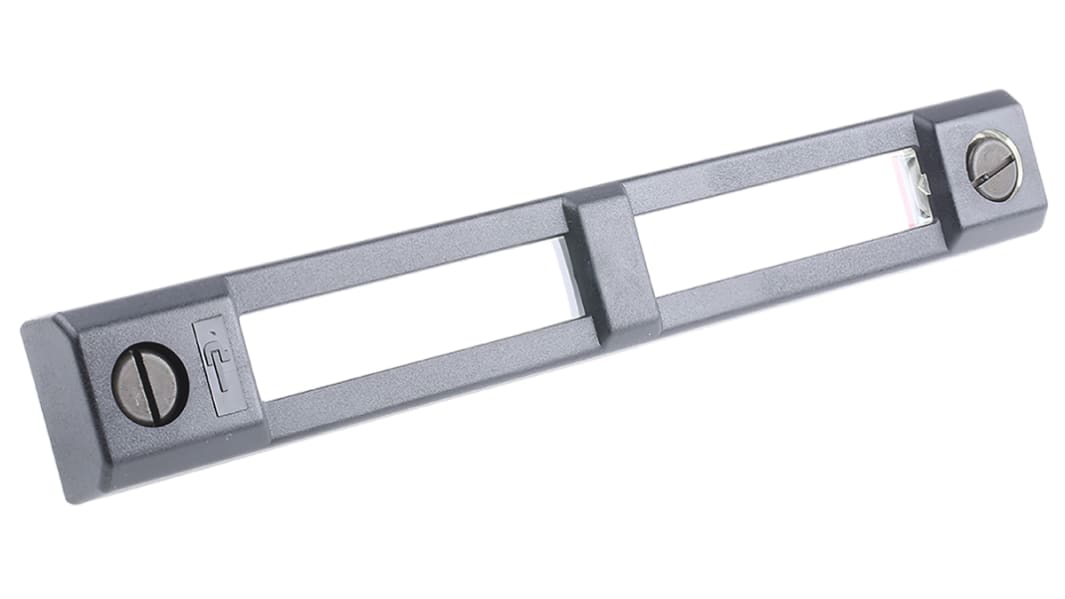

Parker Liquid Level Indicator FL.69313, M12
- RS Stock No.:
- 331-9559
- Mfr. Part No.:
- FL.69313
- Brand:
- Parker
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 331-9559
- Mfr. Part No.:
- FL.69313
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Connection Thread | M12 | |
| Level Indicator Type | Column Level Indicator | |
| Scale Length | 202mm | |
| Connection Thread Size | M12 | |
| Sight Gauge Material | PA (Lens & Base), Polystyrene (Shroud) | |
| Screws and Fittings Material | Steel | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -30°C | |
| Connection Thread Standard | Metric | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Connection Thread M12 | ||
Level Indicator Type Column Level Indicator | ||
Scale Length 202mm | ||
Connection Thread Size M12 | ||
Sight Gauge Material PA (Lens & Base), Polystyrene (Shroud) | ||
Screws and Fittings Material Steel | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -30°C | ||
Connection Thread Standard Metric | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Level and Temperature Gauge
Designed to add style and efficiency to tank installations. These fluid level temperature gauges have a co-ordinated design with modular air breathers. The gauges are compatible with mineral and petroleum-based fluids due to their construction from high strength, aluminium free materials.
Features and Benefits
• High visibility one piece polyamide lens
• Universal front or rear fixing
• M10 and M12 bolt thread options
• 3 sizes with or without thermometer – 76 mm, 127 mm and 254 mm
• High impact polystyrene shroud
• For use on pressurised tanks up to 1 bar
• Universal front or rear fixing
• M10 and M12 bolt thread options
• 3 sizes with or without thermometer – 76 mm, 127 mm and 254 mm
• High impact polystyrene shroud
• For use on pressurised tanks up to 1 bar
Product and Application Information
Simple to install and designed for either front or rear fixing. After positioning the gauge, the bolts are tightened to provide a secure seal with no fear of leaking.
Supplied with
gasket
