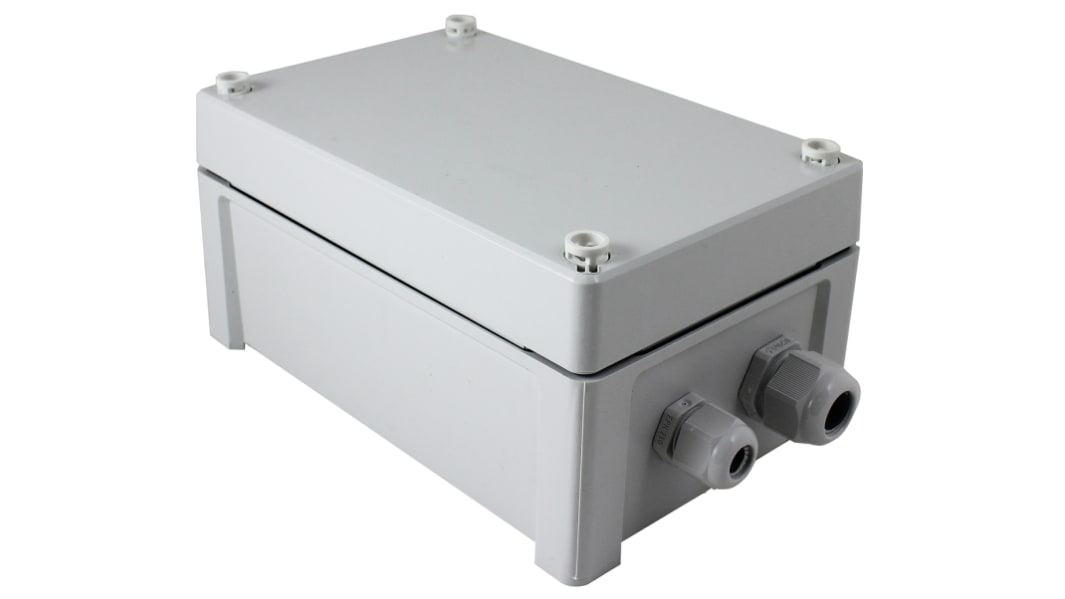

RS PRO Wall Linear Power Supply 253V ac, 7 A Output 24V ac 168 VA
- RS Stock No.:
- 124-4715
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£185.59
(exc. VAT)
£222.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 14 unit(s) ready to ship
- Plus 10 unit(s) shipping from 26 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £185.59 |
| 5 - 9 | £180.02 |
| 10 - 24 | £174.47 |
| 25 - 49 | £168.88 |
| 50 + | £163.32 |
*price indicative
- RS Stock No.:
- 124-4715
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Linear Power Supply | |
| Output Current | 7A | |
| Maximum Output Voltage | 24V ac | |
| Number of Outputs | 1 | |
| Length | 122.2mm | |
| Width | 89.9mm | |
| Power | 168VA | |
| Depth | 187.2mm | |
| Mount Type | Wall | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | CE, RoHS, EMC | |
| Weight | 2kg | |
| Maximum Input Voltage | 253V ac | |
| Minimum Input Voltage | 230V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Linear Power Supply | ||
Output Current 7A | ||
Maximum Output Voltage 24V ac | ||
Number of Outputs 1 | ||
Length 122.2mm | ||
Width 89.9mm | ||
Power 168VA | ||
Depth 187.2mm | ||
Mount Type Wall | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals CE, RoHS, EMC | ||
Weight 2kg | ||
Maximum Input Voltage 253V ac | ||
Minimum Input Voltage 230V ac | ||
RS Pro Single Output Weatherproof CCTV Power Supply
A weatherproodf power supply suitable for security applications.
Features and Benefits
230Vac Input
24Vac Output
IP Rated
Weatherproof
Class I (required to be earthed)
Wall mountable
FBA 20x5mm, Quick blow, Glass fuse protection
Standards
CE Compliant, IS65, IP66
