RS PRO HG Series, Linear Guide Rail 15mm width 1000mm Length

View all Linear Guide Rails
Bulk discount available

Subtotal (1 unit)*

£147.23

(exc. VAT)

£176.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£147.23
5 - 9£144.28
10 - 24£141.34
25 +£138.39

*price indicative

RS Stock No.:
176-6689
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Rail Width

15mm

Rail Length

1000mm

Manufacturer Series

HG

Material

S55C - Carbon Steel

Dynamic Load Rating

11380N

Static Load Rating

16970N

RoHS Status: Exempt

COO (Country of Origin):
TW

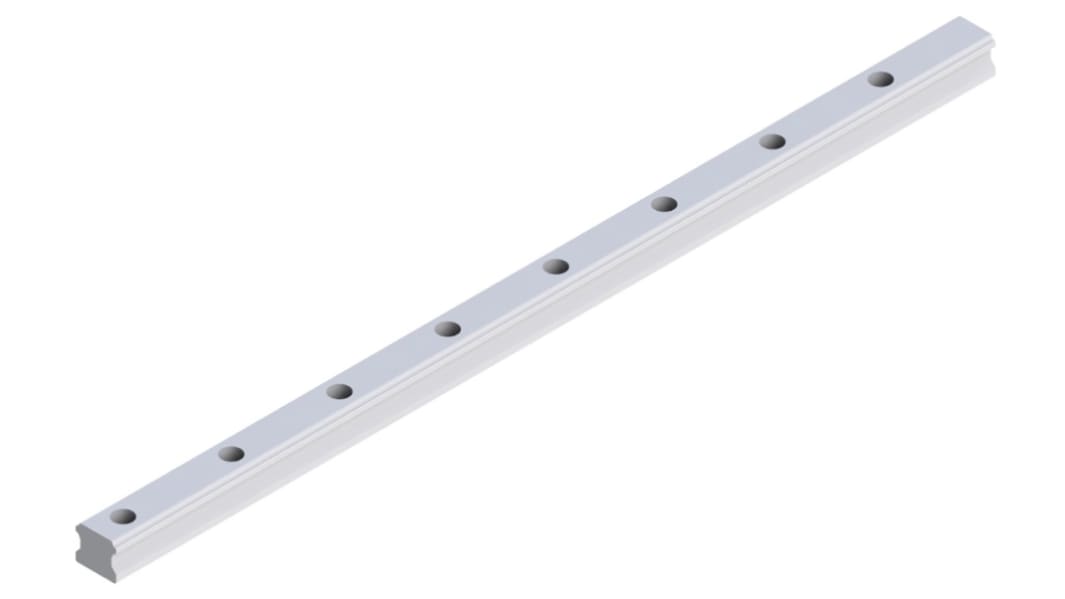

RS PRO Linear Guide Rail


The RS PRO linear block and guide rail standard with rail is 1000mm in length. It is a heavy-duty linear guide, with four ball bearing paths. This product is designed for high loads and rigidity. The ball circulation system ensures light running. The retainers prevent the ball bearings from falling out, in particular when the block the block is pulled OFF the rail during installation.

Features and Benefits


• Unique design
• High accuracy and rigidity

Applications


• Linear rails are the backbone of many industrial applications
