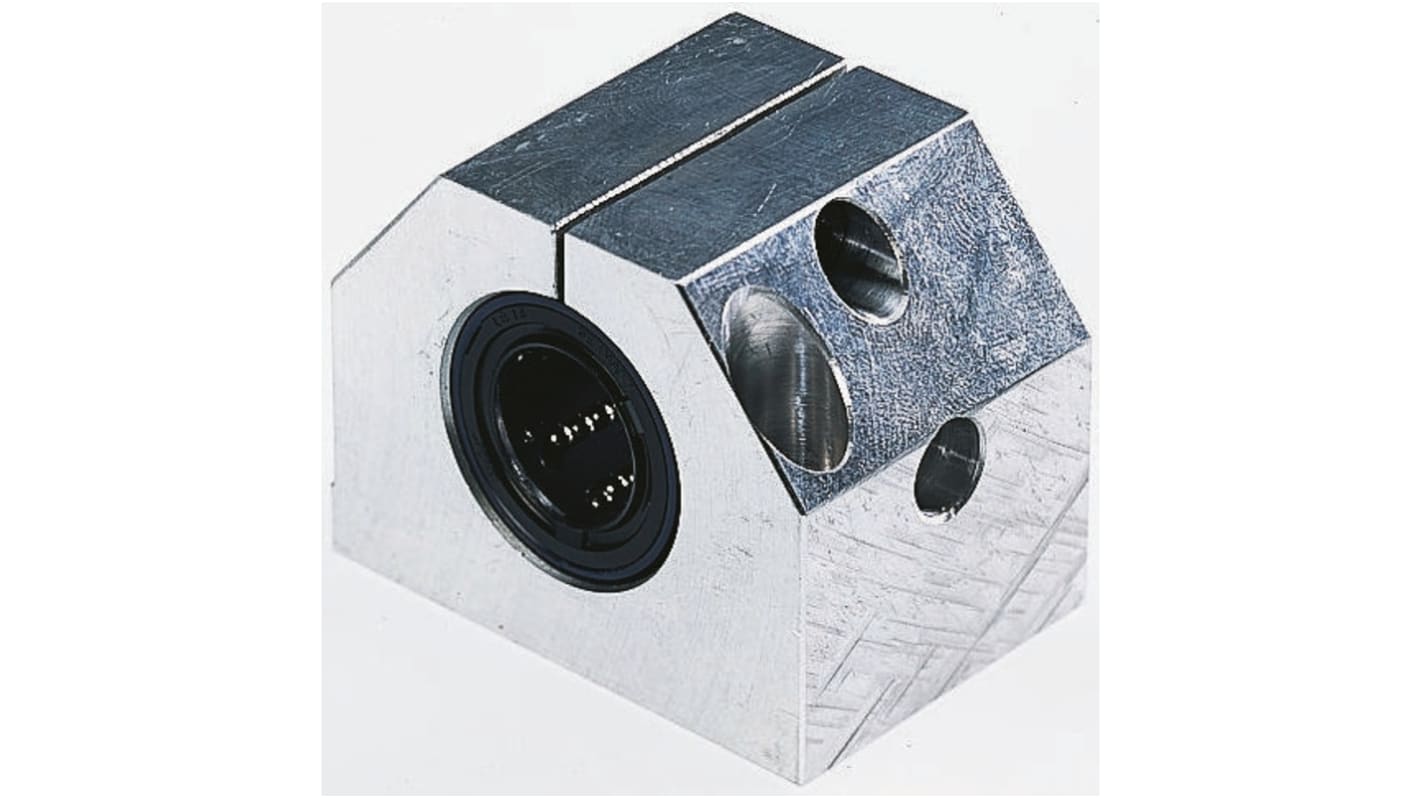

Ewellix Bearing Unit LUNE12 D-2LS
- RS Stock No.:
- 285-0194
- Mfr. Part No.:
- LUNE12 D-2LS
- Brand:
- Ewellix Makers in Motion
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£77.31
(exc. VAT)
£92.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £77.31 |
| 5 - 9 | £74.22 |
| 10 + | £72.65 |
*price indicative
- RS Stock No.:
- 285-0194
- Mfr. Part No.:
- LUNE12 D-2LS
- Brand:
- Ewellix Makers in Motion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ewellix Makers in Motion | |
| Bearing Inside Diameter | 12mm | |
| Bearing Outside Diameter | 22mm | |
| Bearing Unit Type | Linear Ball Bearing Unit | |
| For Bearing Type | Closed | |
| Housing Dimensions | 43 x 32 x 35mm | |
| Dynamic Load Rating | 1080N | |
| Static Load Rating | 815N | |
| Housing Width | 32mm | |
| Housing Height | 35mm | |
| Housing Length | 43mm | |
Select all | ||
|---|---|---|
Brand Ewellix Makers in Motion | ||
Bearing Inside Diameter 12mm | ||
Bearing Outside Diameter 22mm | ||
Bearing Unit Type Linear Ball Bearing Unit | ||
For Bearing Type Closed | ||
Housing Dimensions 43 x 32 x 35mm | ||
Dynamic Load Rating 1080N | ||
Static Load Rating 815N | ||
Housing Width 32mm | ||
Housing Height 35mm | ||
Housing Length 43mm | ||
- COO (Country of Origin):
- DE
SKF Linear Bearings
Standard SKF linear bearings can be used to construct linear guidance systems over a wide variety of applications. These bearings are manufactured to ISO 10285 standards. SKF linear ball bearings have the advantage of being corrosion resistant due to a corrosion inhibiting preservative.
Can be used on a wide variety of applications
ISO 10285
Coated with a corrosion inhibitor
ISO 10285
Coated with a corrosion inhibitor
SKF Linear Ball Bushings & Sets
Closed ball bushings and plain bearings for XY positioning, pick and place applications and precision linear motion systems.,Plain bearings to be used in heavy shock, vibration, high acceleration or high speed situations which are unsuitable for linear ball bearings.,Note that higher frictional forces must be expected with linear plain bearings.,Ball bushings comprise a cage, in which the balls are guided, along with the raceway segments and integral seals,Further axial securing is often unnecessary when linear ball bearings and linear plain bearings are pressed into a J7 or J6 tolerance hole.
