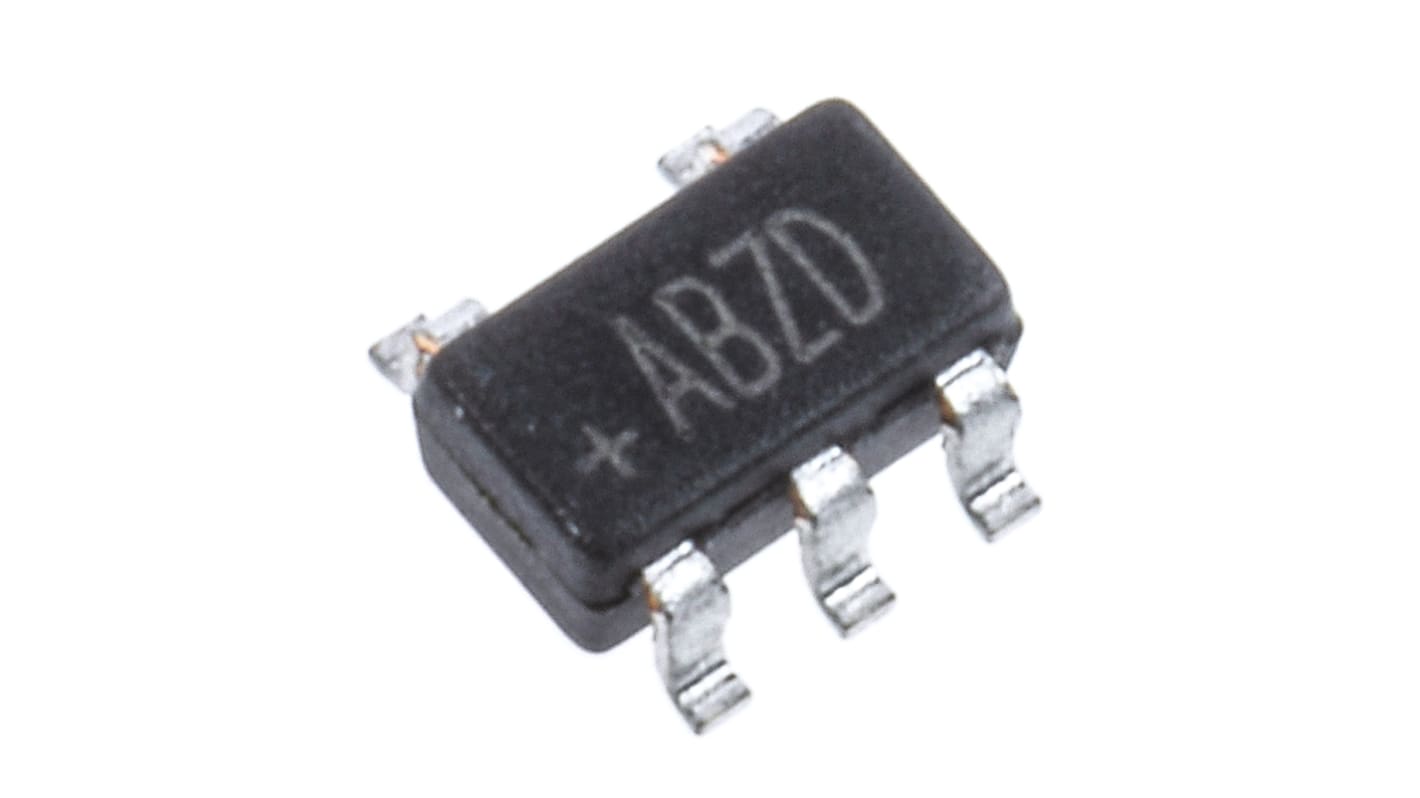

Toshiba TC7SZ17FU,LJ(CT Buffer & Line Driver, CMOS, Inverting, 5-Pin SSOP
- RS Stock No.:
- 896-6778
- Mfr. Part No.:
- TC7SZ17FU,LJ(CT
- Brand:
- Toshiba
Discontinued
- RS Stock No.:
- 896-6778
- Mfr. Part No.:
- TC7SZ17FU,LJ(CT
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Family | LMOS | |
| IC Type | Buffer & Line Driver IC | |
| Input Type | CMOS | |
| Output Type | CMOS | |
| Polarity | Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 5 | |
| Maximum High Level Output Current | -32mA | |
| Maximum Low Level Output Current | 32mA | |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns@ 50 pF | |
| Dimensions | 2 x 1.25 x 0.9mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Supply Voltage | 1.5 V | |
| Propagation Delay Test Condition | 50pF | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Family LMOS | ||
IC Type Buffer & Line Driver IC | ||
Input Type CMOS | ||
Output Type CMOS | ||
Polarity Inverting | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 5 | ||
Maximum High Level Output Current -32mA | ||
Maximum Low Level Output Current 32mA | ||
Maximum Propagation Delay Time @ Maximum CL 7.5 ns@ 50 pF | ||
Dimensions 2 x 1.25 x 0.9mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Supply Voltage 1.5 V | ||
Propagation Delay Test Condition 50pF | ||
- COO (Country of Origin):
- TH
L-MOS SHS Series, Low Voltage, Toshiba
The TC7SZ/WZ/PZ Toshiba SHS series is a family of Low-voltage One-Gate CMOS (L-MOS) logic devices.
• 1.8 - 5.5V operation
L-MOS Family Logic ICs
One-Gate Logic (L-MOS)
