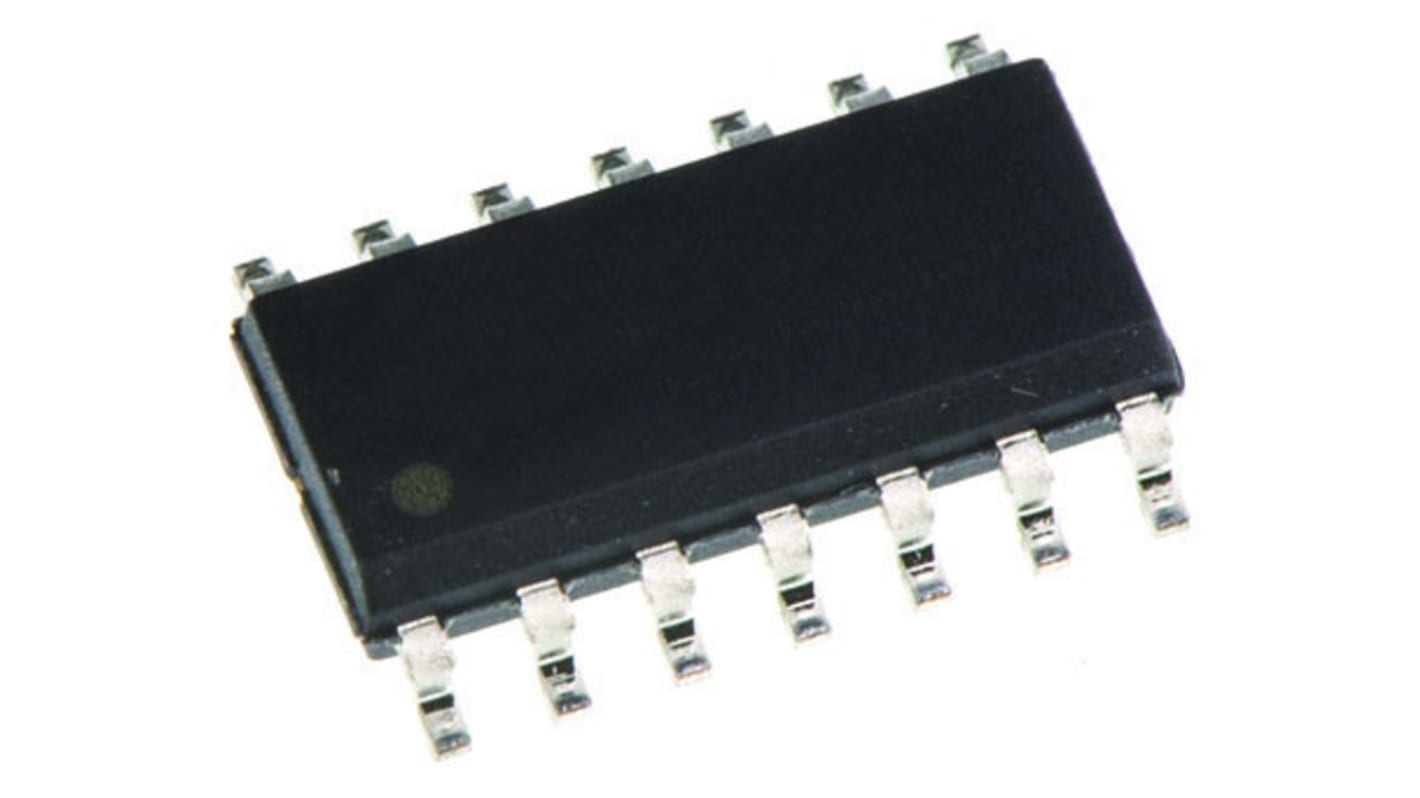

Texas Instruments SN74LS125AD Quad-Channel Buffer & Line Driver, 3-State, 14-Pin SOIC
- RS Stock No.:
- 663-2397P
- Mfr. Part No.:
- SN74LS125AD
- Brand:
- Texas Instruments
Bulk discount available
Subtotal 50 units (supplied in a tube)*
£30.00
(exc. VAT)
£36.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 50 - 95 | £0.60 |
| 100 - 245 | £0.548 |
| 250 - 495 | £0.512 |
| 500 + | £0.476 |
*price indicative
- RS Stock No.:
- 663-2397P
- Mfr. Part No.:
- SN74LS125AD
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | LS | |
| Logic Function | Buffer, Line Driver | |
| Number of Channels per Chip | 4 | |
| Input Type | Single Ended | |
| Output Type | 3 State | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Minimum Operating Temperature | 0 °C | |
| Pin Count | 14 | |
| Maximum Operating Temperature | +70 °C | |
| Maximum High Level Output Current | -2.6mA | |
| Maximum Low Level Output Current | 24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 18 ns @ 5 V | |
| Dimensions | 8.65 x 3.91 x 1.58mm | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Height | 1.58mm | |
| Minimum Operating Supply Voltage | 4.75 V | |
| Propagation Delay Test Condition | 45pF | |
| Width | 3.91mm | |
| Length | 8.65mm | |
