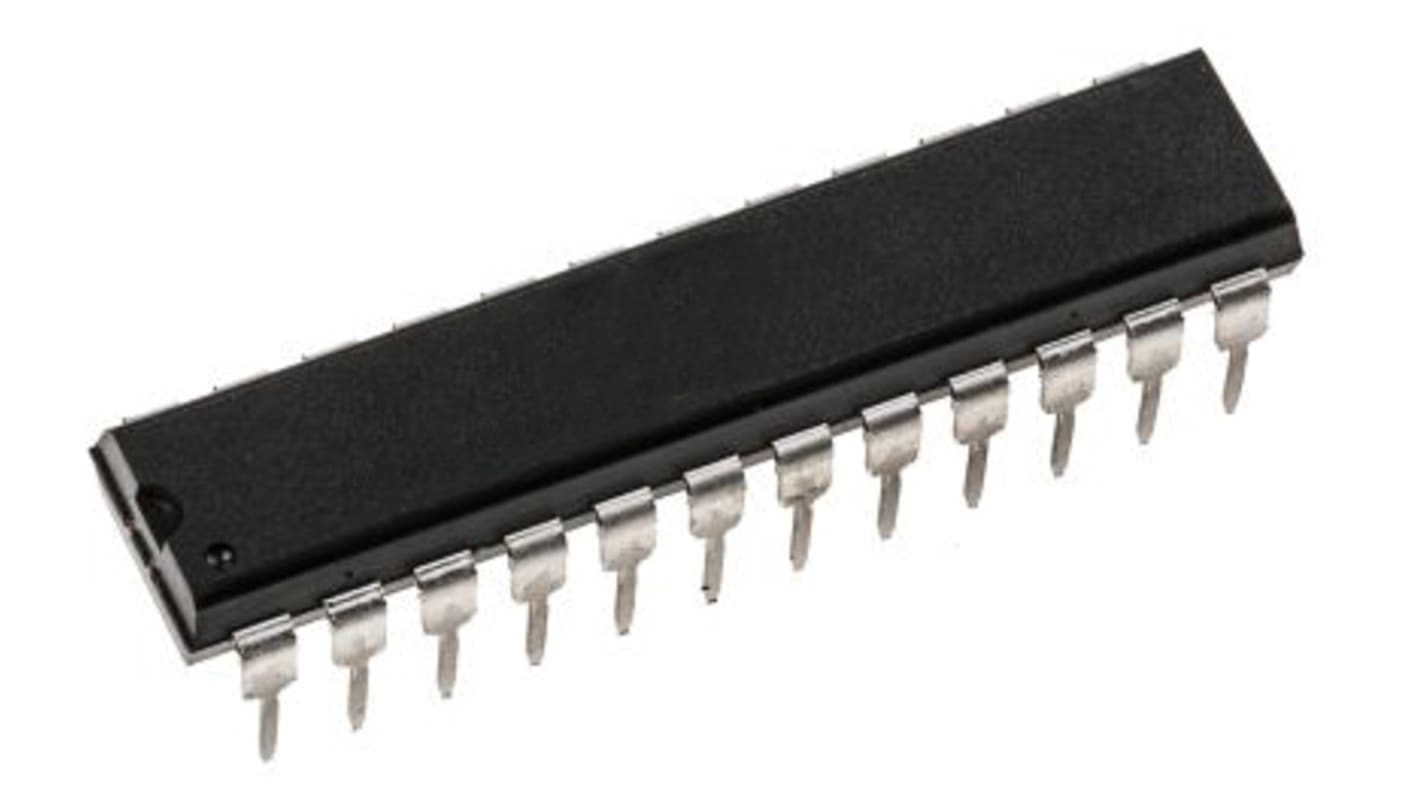

Analog Devices ADM207EANZ Line Transceiver, 24-Pin PDIP
- RS Stock No.:
- 183-2171
- Mfr. Part No.:
- ADM207EANZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 183-2171
- Mfr. Part No.:
- ADM207EANZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| IC Type | Line Transceiver IC | |
| Input Type | Single Ended | |
| Number of Transmitters | 1 (RS232) | |
| Mounting Type | Surface Mount | |
| Package Type | PDIP | |
| Pin Count | 24 | |
| Dimensions | 32.51 x 7.11 x 4.95mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
IC Type Line Transceiver IC | ||
Input Type Single Ended | ||
Number of Transmitters 1 (RS232) | ||
Mounting Type Surface Mount | ||
Package Type PDIP | ||
Pin Count 24 | ||
Dimensions 32.51 x 7.11 x 4.95mm | ||
- COO (Country of Origin):
- TW
Contact discharge: ±8 kV
Air-gap discharge: ±15 kV
Human body model: ±15 kV
EFT/burst immunity (IEC 1000-4-4)
Low EMI emissions (EN 55022)
Eliminates need for TransZorb® suppressors
230 kbps data rate guaranteed
Single 5 V power supply
Shutdown mode 1 μW
Plug-in upgrade for MAX2xxE
Space saving TSSOP package available
Applications
Laptop computers
Notebook computers
Printers
Peripherals
Modems
Air-gap discharge: ±15 kV
Human body model: ±15 kV
EFT/burst immunity (IEC 1000-4-4)
Low EMI emissions (EN 55022)
Eliminates need for TransZorb® suppressors
230 kbps data rate guaranteed
Single 5 V power supply
Shutdown mode 1 μW
Plug-in upgrade for MAX2xxE
Space saving TSSOP package available
Applications
Laptop computers
Notebook computers
Printers
Peripherals
Modems
