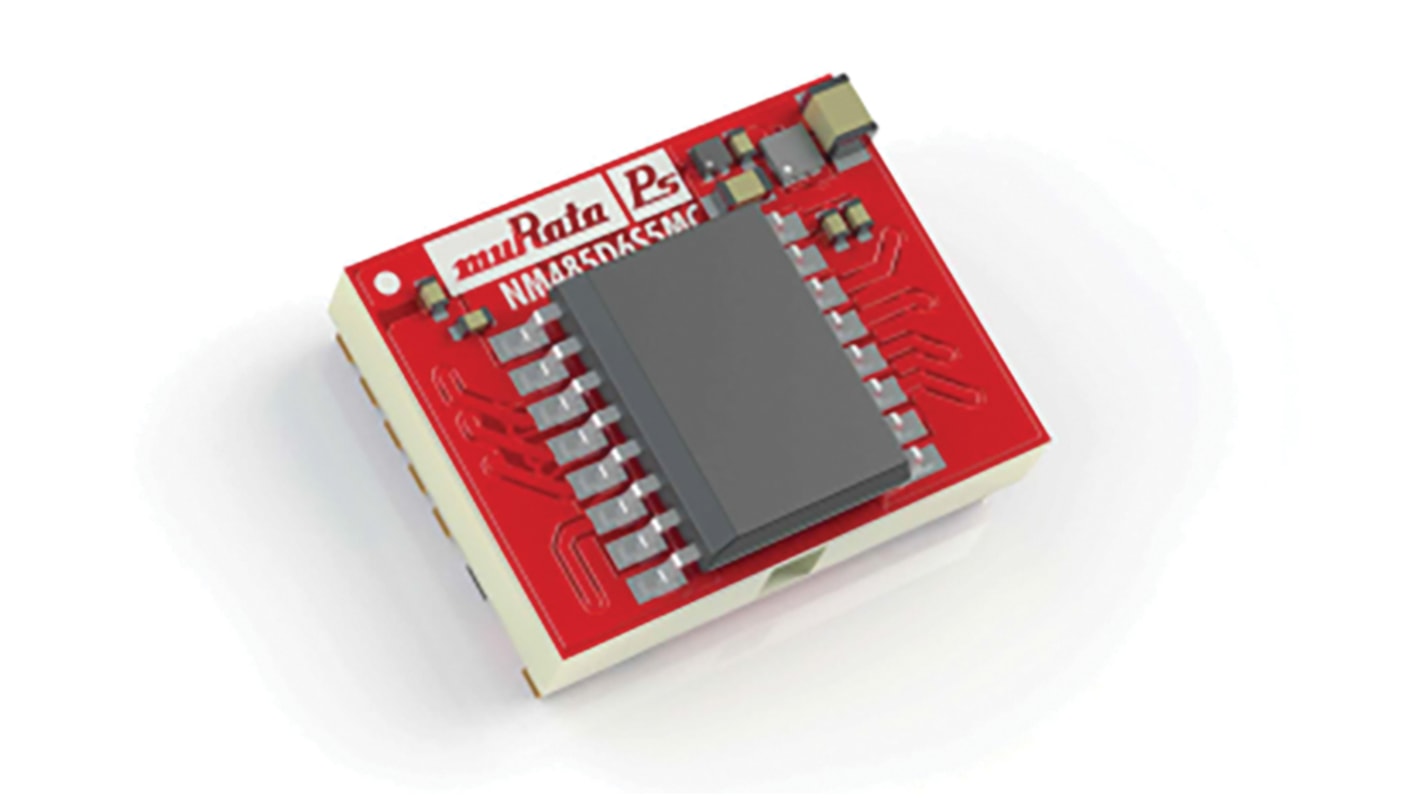

Murata Power Solutions NM485D6S5MC-R7 Line Transceiver, 14-Pin
- RS Stock No.:
- 173-6917
- Mfr. Part No.:
- NM485D6S5MC-R7
- Brand:
- Murata Power Solutions
Discontinued
- RS Stock No.:
- 173-6917
- Mfr. Part No.:
- NM485D6S5MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| IC Type | Line Transceiver IC | |
| Input Type | Differential | |
| Number of Transmitters | 1 | |
| Mounting Type | Surface Mount | |
| Pin Count | 14 | |
| Dimensions | 18.16 x 14.7 x 7.21mm | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
IC Type Line Transceiver IC | ||
Input Type Differential | ||
Number of Transmitters 1 | ||
Mounting Type Surface Mount | ||
Pin Count 14 | ||
Dimensions 18.16 x 14.7 x 7.21mm | ||
- COO (Country of Origin):
- CN
The NM485D6S5MC is a low power electrically isolated differential driver and receiver designed for bi-directional data communication or multipoint bus transmission. The device combines a tri-state differential line driver and a differential input line receiver. The driver and receiver have active high and active low enables, respectively, which can be connected together to function as direction control. No external components are needed as a single 5V supply powers all functions either side of the isolation boundary. NM485D655MC also provides a regulated 5V, unregulated 6V and -6V isolated supply’s for system use.
Patents pending
SMD compatible
+6V, -6V unregulated and +5V regulated
isolated outputs
Differential driver and receiver
500kbps data rate
Industrial temperature range -40°C to
+85°C
SMD compatible
+6V, -6V unregulated and +5V regulated
isolated outputs
Differential driver and receiver
500kbps data rate
Industrial temperature range -40°C to
+85°C
