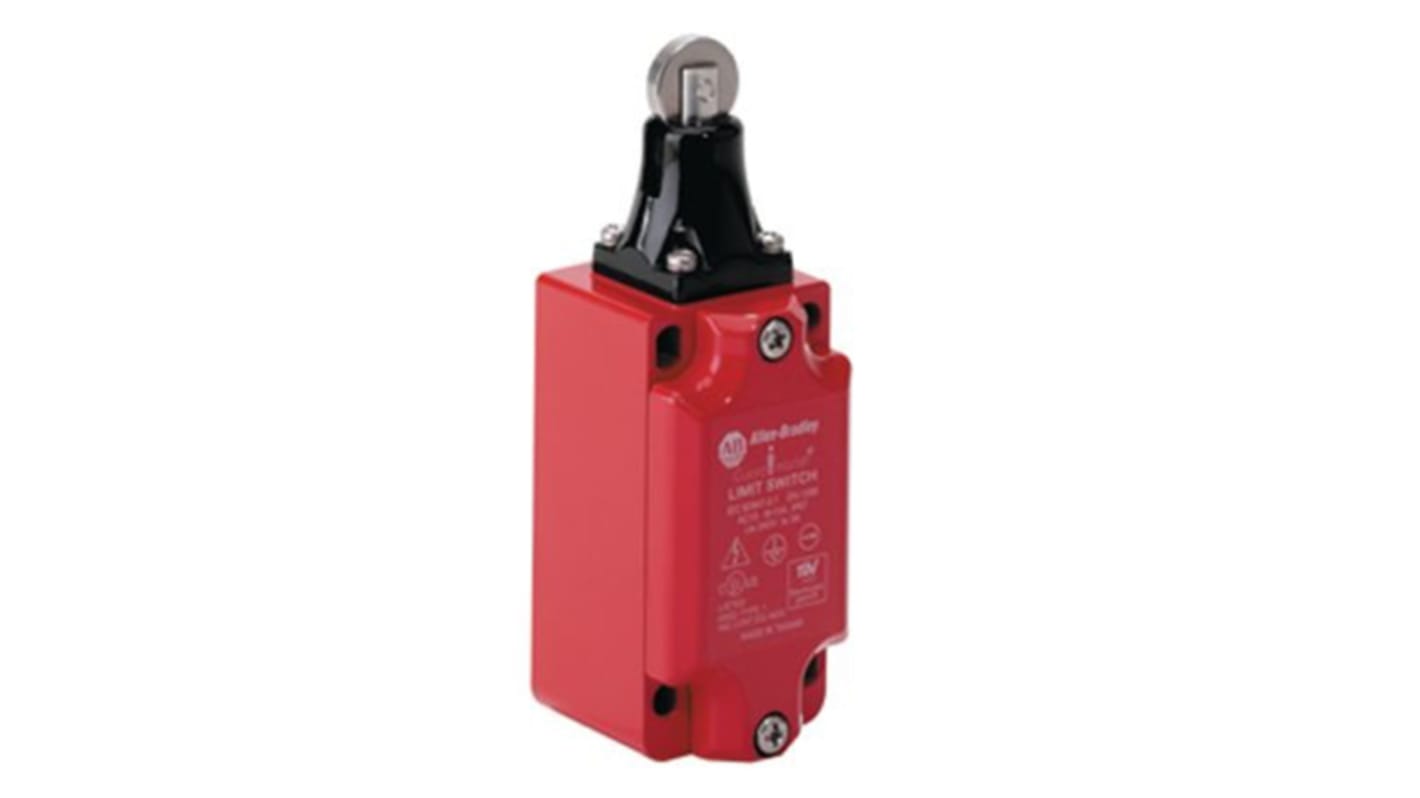

Allen Bradley Guardmaster 440P Series Roller Plunger Limit Switch, NO/NC, IP66, 4PST, Metal Housing
- RS Stock No.:
- 873-2229
- Mfr. Part No.:
- 440P-MRPB13B
- Brand:
- Allen Bradley Guardmaster
Subtotal (1 unit)*
£62.12
(exc. VAT)
£74.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 14 unit(s) shipping from 06 October 2025
- Plus 1 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £62.12 |
*price indicative
- RS Stock No.:
- 873-2229
- Mfr. Part No.:
- 440P-MRPB13B
- Brand:
- Allen Bradley Guardmaster
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley Guardmaster | |
Actuator Type | Roller Plunger | |
Pole and Throw Configuration | 4PST | |
Normal State Configuration | NO/NC | |
IP Rating | IP66 | |
Housing Material | Metal | |
Connection Type | M20 | |
Series | 440P | |
Length | 118mm | |
Depth | 43mm | |
Width | 40mm | |
Mechanical Life | 10000000Operations | |
Mounting Orientation | Horizontal | |
Select all | ||
---|---|---|
Brand Allen Bradley Guardmaster | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration 4PST | ||
Normal State Configuration NO/NC | ||
IP Rating IP66 | ||
Housing Material Metal | ||
Connection Type M20 | ||
Series 440P | ||
Length 118mm | ||
Depth 43mm | ||
Width 40mm | ||
Mechanical Life 10000000Operations | ||
Mounting Orientation Horizontal | ||
- COO (Country of Origin):
- TW
Allen-Bradley Senator Limit Switches
The Senator is a large metal safety limit switch with the option of rotating the head in 90° increments before installation to allow ease of mounting. They can be used in applications other than guard doors, for example on moving machine beds, crane arms, lifts, elevators, etc.
Operation of the safety limit switch is achieved by the sliding action of the guard or other moving object deflecting the plunger or lever. For safety applications it is important that upon actuation, the guard or other moving objects should not pass completely over the switch and allow the plunger or lever to return to its original position.
Operation of the safety limit switch is achieved by the sliding action of the guard or other moving object deflecting the plunger or lever. For safety applications it is important that upon actuation, the guard or other moving objects should not pass completely over the switch and allow the plunger or lever to return to its original position.
Positive operation, forced disconnection of contacts
Snap-acting, slow make before break or slow break before make contact blocks
Three actuator heads available: Roller Plunger, Short Lever or Spring Rod
Three contacts configurations available: 1NC/1NO, 2NC/2NO or 3NC/1NO
Snap-acting, slow make before break or slow break before make contact blocks
Three actuator heads available: Roller Plunger, Short Lever or Spring Rod
Three contacts configurations available: 1NC/1NO, 2NC/2NO or 3NC/1NO
Standards
Conforms to EN 50041, EN 1088, EN 60947-5-1, EN 292 and EN 60204-1.
Approvals
cULus, TUV and CE marked for all applicable directives.
Safety Limit Switch
