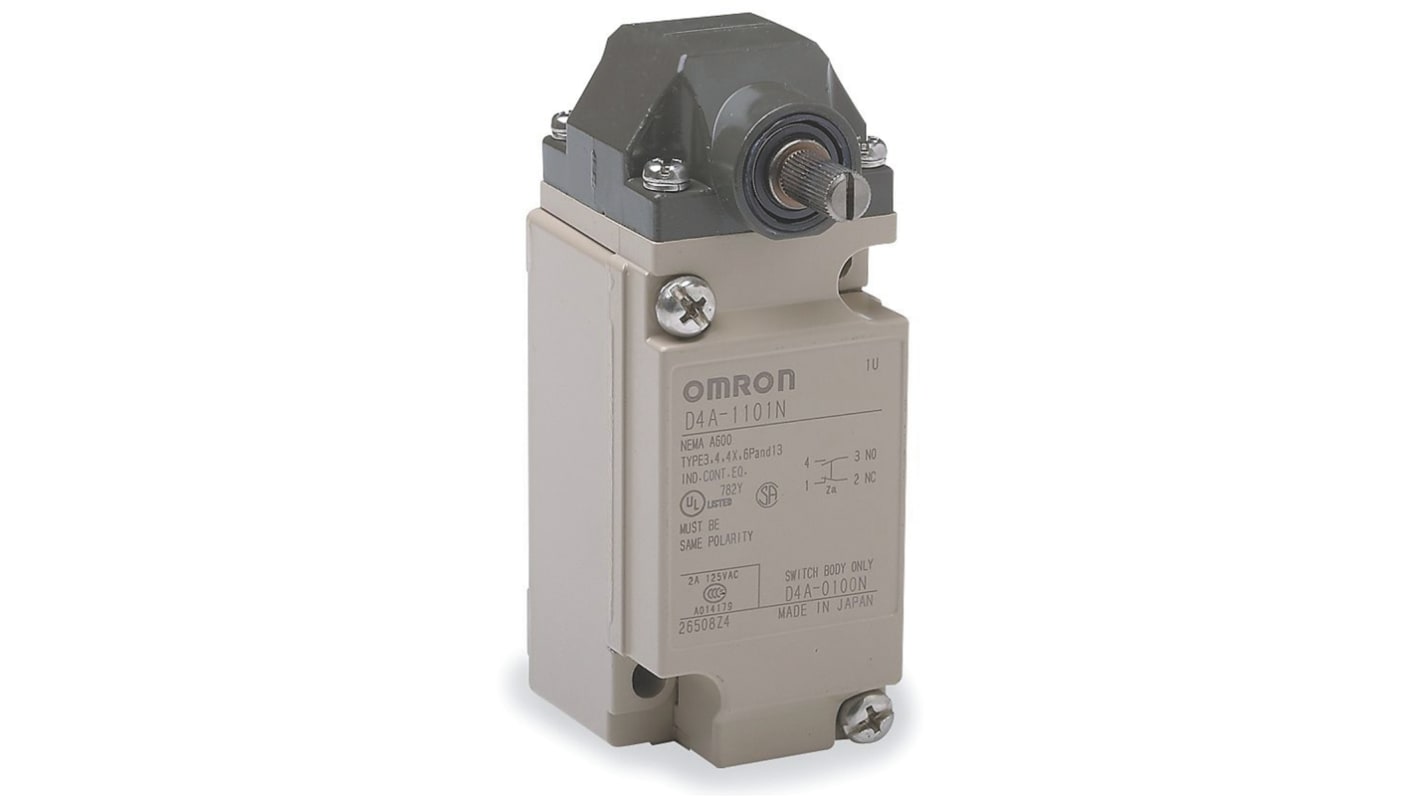

Omron Roller Lever Limit Switch, NO/NC, IP67, SPDT, 600V ac Max, 10A Max
- RS Stock No.:
- 827-9128
- Mfr. Part No.:
- D4A-1101-N
- Brand:
- Omron
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£230.00
(exc. VAT)
£276.00
(inc. VAT)
- RS Stock No.:
- 827-9128
- Mfr. Part No.:
- D4A-1101-N
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Actuator Type | Roller Lever | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP67 | |
| Maximum Current | 10A | |
| Maximum AC Voltage | 600V | |
| Maximum DC Voltage | 250V | |
| Connection Type | 1/2 in NPT | |
| Action Type | Snap Action | |
| Length | 75.5mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 44mm | |
| Width | 42mm | |
| Maximum Operating Temperature | +100°C | |
| Mechanical Life | 50000000Operations | |
| Mounting Orientation | Back, Front | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Actuator Type Roller Lever | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 10A | ||
Maximum AC Voltage 600V | ||
Maximum DC Voltage 250V | ||
Connection Type 1/2 in NPT | ||
Action Type Snap Action | ||
Length 75.5mm | ||
Minimum Operating Temperature -40°C | ||
Depth 44mm | ||
Width 42mm | ||
Maximum Operating Temperature +100°C | ||
Mechanical Life 50000000Operations | ||
Mounting Orientation Back, Front | ||
D4A- N General Purpose Limit Switch
A limit switch with better seal, shock resistance and strength
A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13)
Wide standard operating temperature range: -40 °C to +100 °C (standard type)
Models with fluoro-rubber available for greater resistance to chemicals
Block mounting method also reduces downtime for maintenance
DPDT, double-break models available for complex operations
Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately
Wide standard operating temperature range: -40 °C to +100 °C (standard type)
Models with fluoro-rubber available for greater resistance to chemicals
Block mounting method also reduces downtime for maintenance
DPDT, double-break models available for complex operations
Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately
Standards
UL, CSA and CCC
