Honeywell Plunger Limit Switch, NO/NC, SPDT, 4A Max
- RS Stock No.:
- 821-0208
- Mfr. Part No.:
- 1CH111
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 821-0208
- Mfr. Part No.:
- 1CH111
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Plunger | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| Maximum Current | 4A | |
| Maximum DC Voltage | 28V | |
| Connection Type | Cable | |
| Depth | 2.595in | |
| Width | (Dia) 1in | |
| Mounting Orientation | Side | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
Maximum Current 4A | ||
Maximum DC Voltage 28V | ||
Connection Type Cable | ||
Depth 2.595in | ||
Width (Dia) 1in | ||
Mounting Orientation Side | ||
- COO (Country of Origin):
- US
CH Series Environmentally Sealed Limit Switch
The CH Series are an environmentally sealed unit offering high accuracy and reliability, even in extreme conditions. They are designed to be small and lightweight yet still offer high performance.

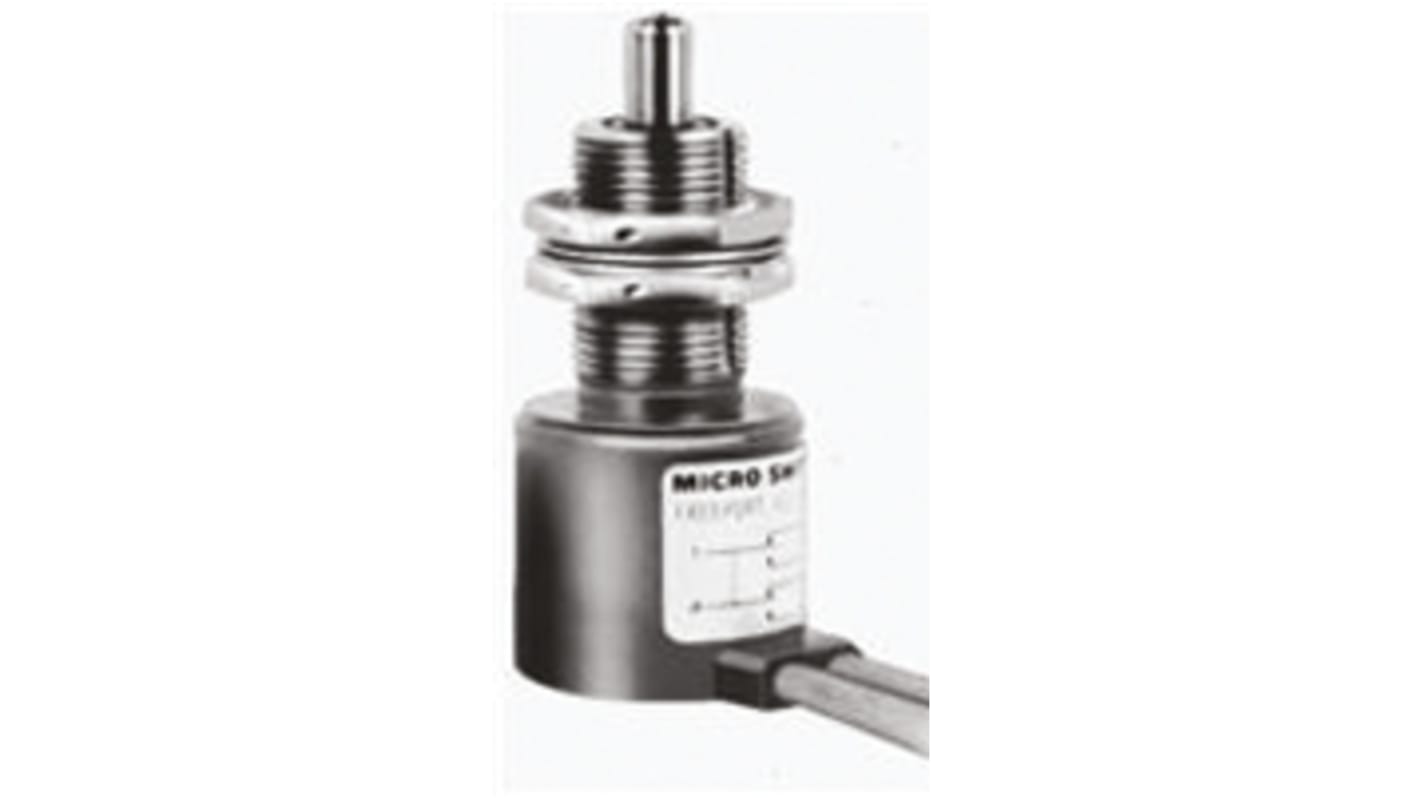

1CH111 Limit Switch
The 1CH11 from Honeywell is a hardwearing limit switch. The main body, plunger and bushing have been constructed with corrosion resistant steel.
This limit switch is fitted with an SJO 3 conductor cable as standard.
It has a maximum operating force of 12 lb and a full overtravel force of 30 lb maximum.It is a single pole double throw limit (SPDT) limit switch with one normally closed (NC) and one normally open (NO) contact.
21CH28-18 features two hex nuts with hole through them that enables you to lock wires in place.
The switch is sealed as per MIL-PRF-8805 Symbol 3.
This limit switch is fitted with an SJO 3 conductor cable as standard.
It has a maximum operating force of 12 lb and a full overtravel force of 30 lb maximum.It is a single pole double throw limit (SPDT) limit switch with one normally closed (NC) and one normally open (NO) contact.
21CH28-18 features two hex nuts with hole through them that enables you to lock wires in place.
The switch is sealed as per MIL-PRF-8805 Symbol 3.
Approvals
UL, CSA.
