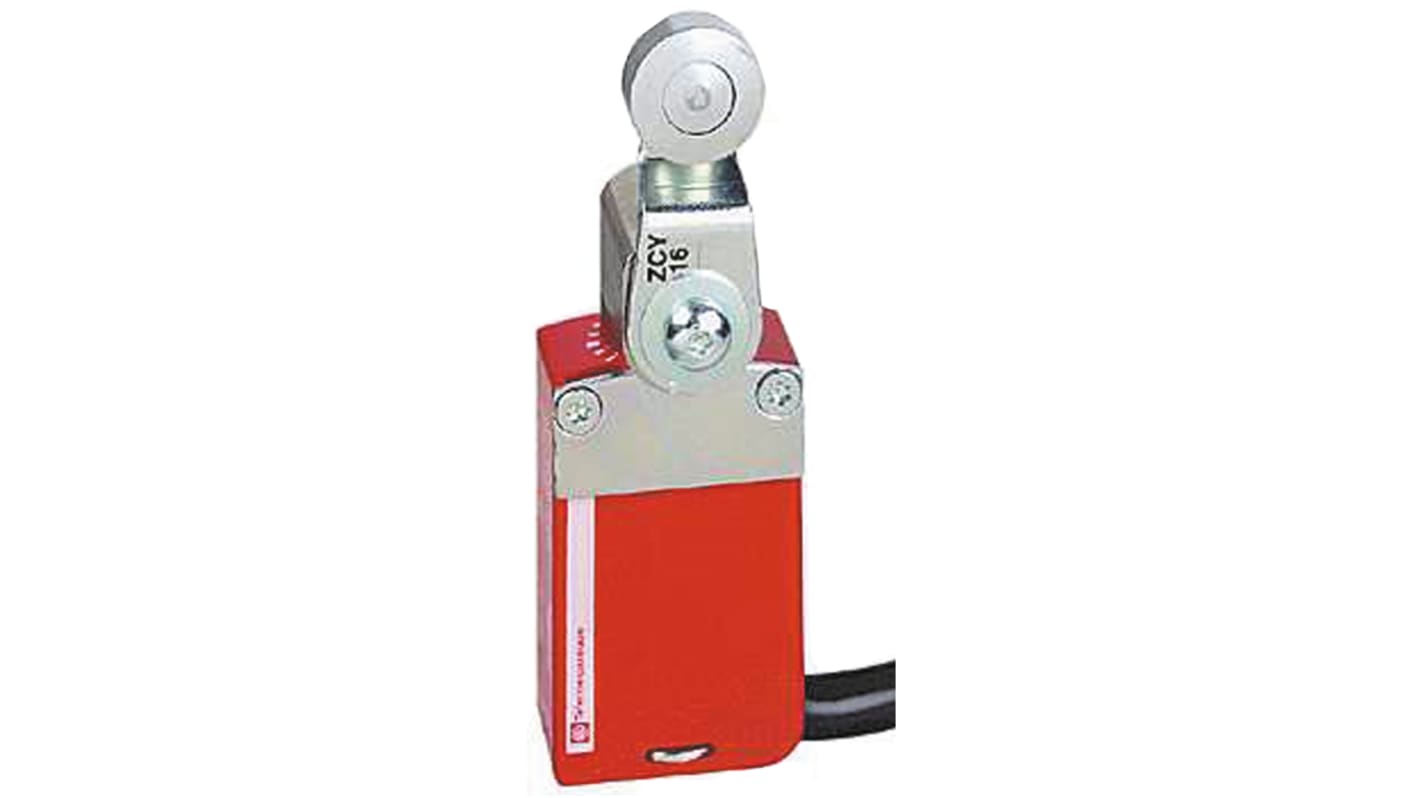

Telemecanique Sensors XCSM Series Roller Lever Limit Switch, 1 NO/2 NC, IP66, IP68, IP67, Metal Housing, 4A

RS Stock No.:: 814-7968
Mfr. Part No.:: XCSM3716L2
Brand:: Telemecanique Sensors

Telemecanique Sensors XCSM Series Roller Lever Limit Switch, 1 NO/2 NC, IP66, IP68, IP67, Metal Housing, 4A

Subtotal (1 unit)*

£79.18

(exc. VAT)

£95.02

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£79.18

*price indicative

RS Stock No.:: 814-7968
Mfr. Part No.:: XCSM3716L2
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Roller Lever
	IP Rating	IP66, IP68, IP67
	Contact Configuration	1 NO/2 NC
	Housing Material	Metal
	Contact Type	Snap Action
	Switching Current	4A
	Terminal Type	Cable
	Series	XCSM
	Minimum Operating Temperature	-13°C
	Maximum Operating Temperature	158°C
	Depth	94mm
	Standards/Approvals	RoHS, UL, IEC, EN, CSA, CE
	Width	32.4mm
	Length	30mm
	Hazardous Area Certification	NO
	Operating Force	8.5N
	Mounting Orientation	Top
	Mechanical Life	10000000Cycles

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Roller Lever
	IP Rating IP66, IP68, IP67
	Contact Configuration 1 NO/2 NC
	Housing Material Metal
	Contact Type Snap Action
	Switching Current 4A
	Terminal Type Cable
	Series XCSM
	Minimum Operating Temperature -13°C
	Maximum Operating Temperature 158°C
	Depth 94mm
	Standards/Approvals RoHS, UL, IEC, EN, CSA, CE
	Width 32.4mm
	Length 30mm
	Hazardous Area Certification NO
	Operating Force 8.5N
	Mounting Orientation Top
	Mechanical Life 10000000Cycles

RoHS Status: Exempt

XCSM Series, Safety Limit Switches

The Schneider XCSM series of miniature/compact industrial limit switches are designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with actuator operated guard switches. When used on their own they are always installed in ’positive mode’, but if combined in pairs then one switch in ’positive mode’ and the other switch in ’negative mode’. Available with a linear movement (plunger) or rotary movement (lever).

N/C contacts with positive opening operation

Snap action contacts

Miniature/compact red metal housing, pre-cabled

Plastic protective cover, secured by 5-lobe socket head safety screw

Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°

Linear movement switch (plunger) has an on-end approach only

IP66/67 protection in accordance with EN/IEC 60529

ROHS compliant

Safety Limit Switch

Note

With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Approvals

UL, CSA.

Standards

CSA C22-2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508.
